Giles FSH-2 Ventless Exhaust System
Giles FSH-2 Standard Features
- The free‐standing design allows you to add deep fryers in the cook line without the need for expensive kitchen modifications or the hassles of installing, or expanding an existing conventional ventilation hood.
- No venting to outside necessary. Generally, can be used where traditional hood solutions are prohibited or too costly.
- Models for 1‐phase or 3‐phase power available. 3‐ph model features a built‐in, interlocked, 50A max, appliance power receptacle in the hood base.
- Accommodates fryers from 10” to 24” wide; specified brackets center appliance position under hood.
- Low‐profile exhaust air diverter minimizes required ceiling height clearance.
- Complete filter set.
- Built‐in fire suppression system.
- Built‐in appliance power receptacle on 3‐ph models.
- PUSH‐TO‐START power switch ... hood must be manually restarted after power interruptions, to provide power to appliance underneath.
- Adjustable leveling legs.
- Low‐profile exhaust air diverter ... reduces required ceiling clearance.
- Built‐in filter cleaning reminder feature ... helps user maintain optimum hood performance.

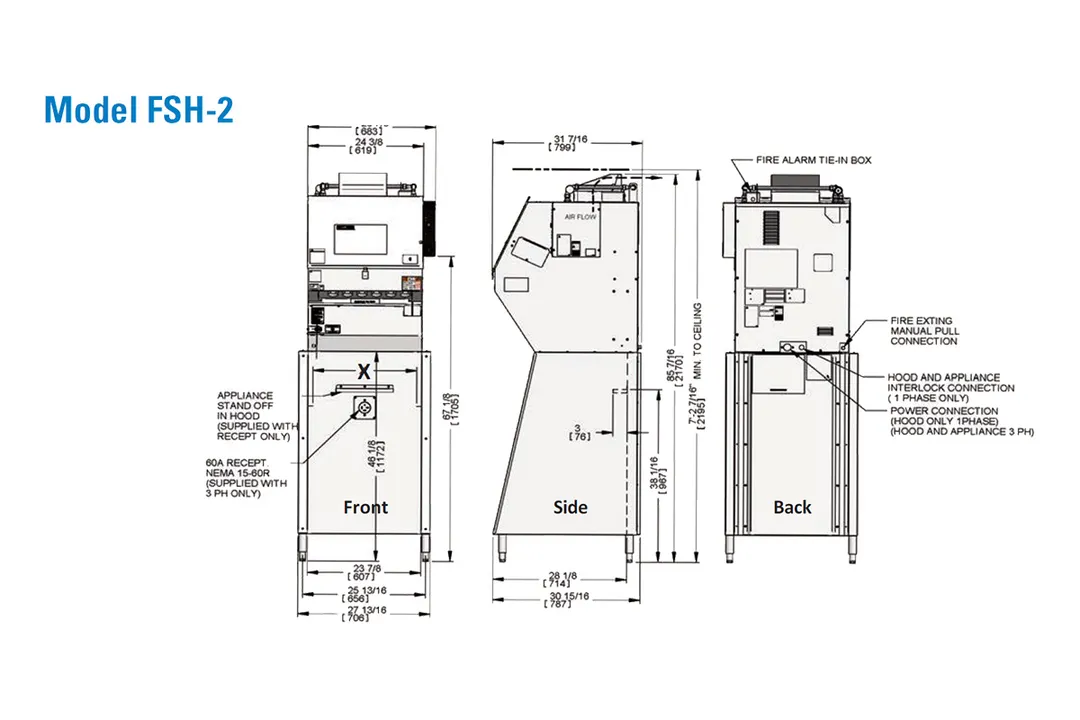

Giles FSH-2 Specifications
- Width: 27‐13/16” [706 mm]
- Height: 85‐7/16” [2170 mm]
- Depth: 30‐15/16” [786 mm]
- Crated Wt :425 lbs [193 kg]
From The Manufacturer
Ventless Hood, type 1, 27-13/16" W, with 3-stage filtration: stainless steel baffle filter for large grease particles, electrostatic air cleaning filter and disposable charcoal filter, for use with electric fryers, stainless steel construction, cULus, NSF, CE
