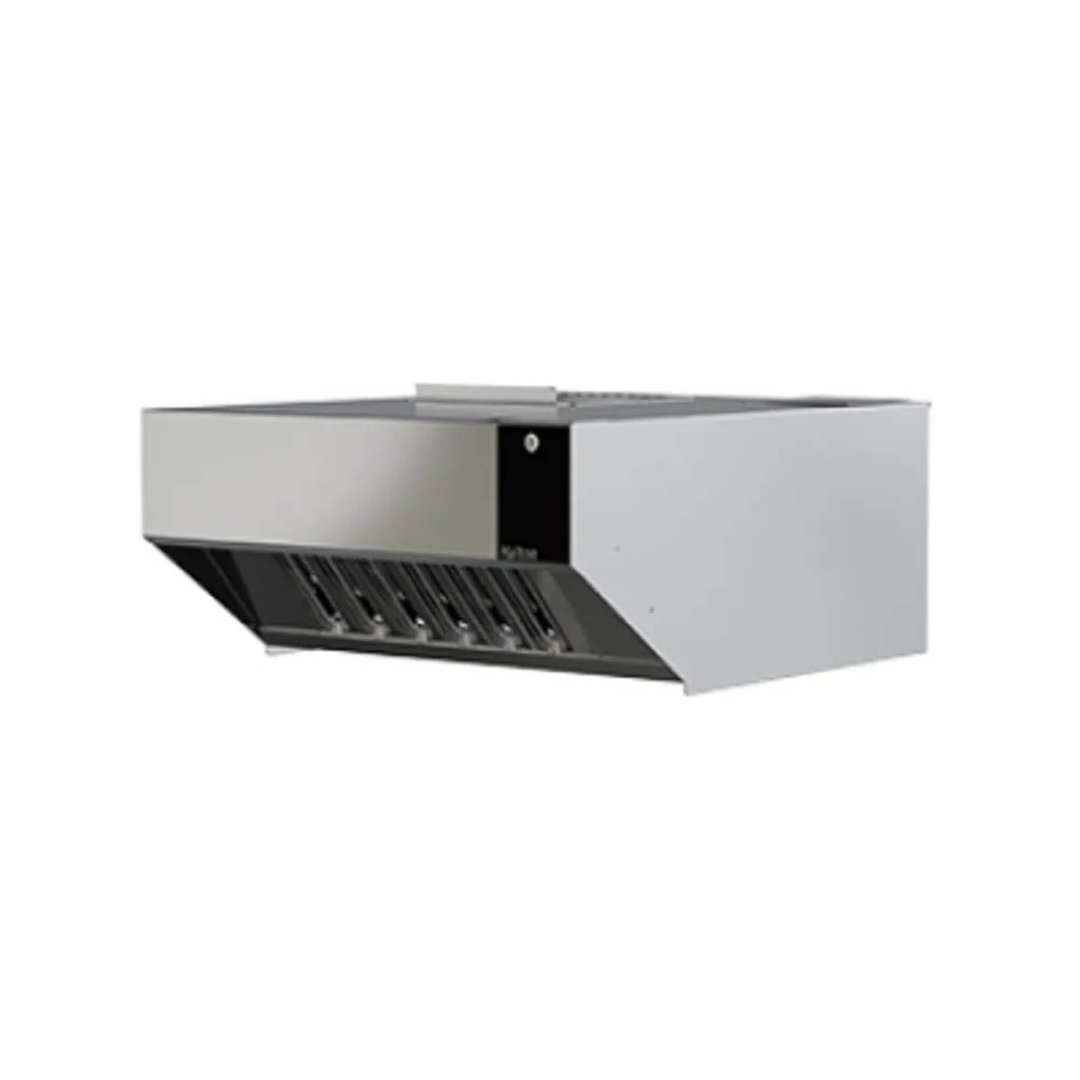

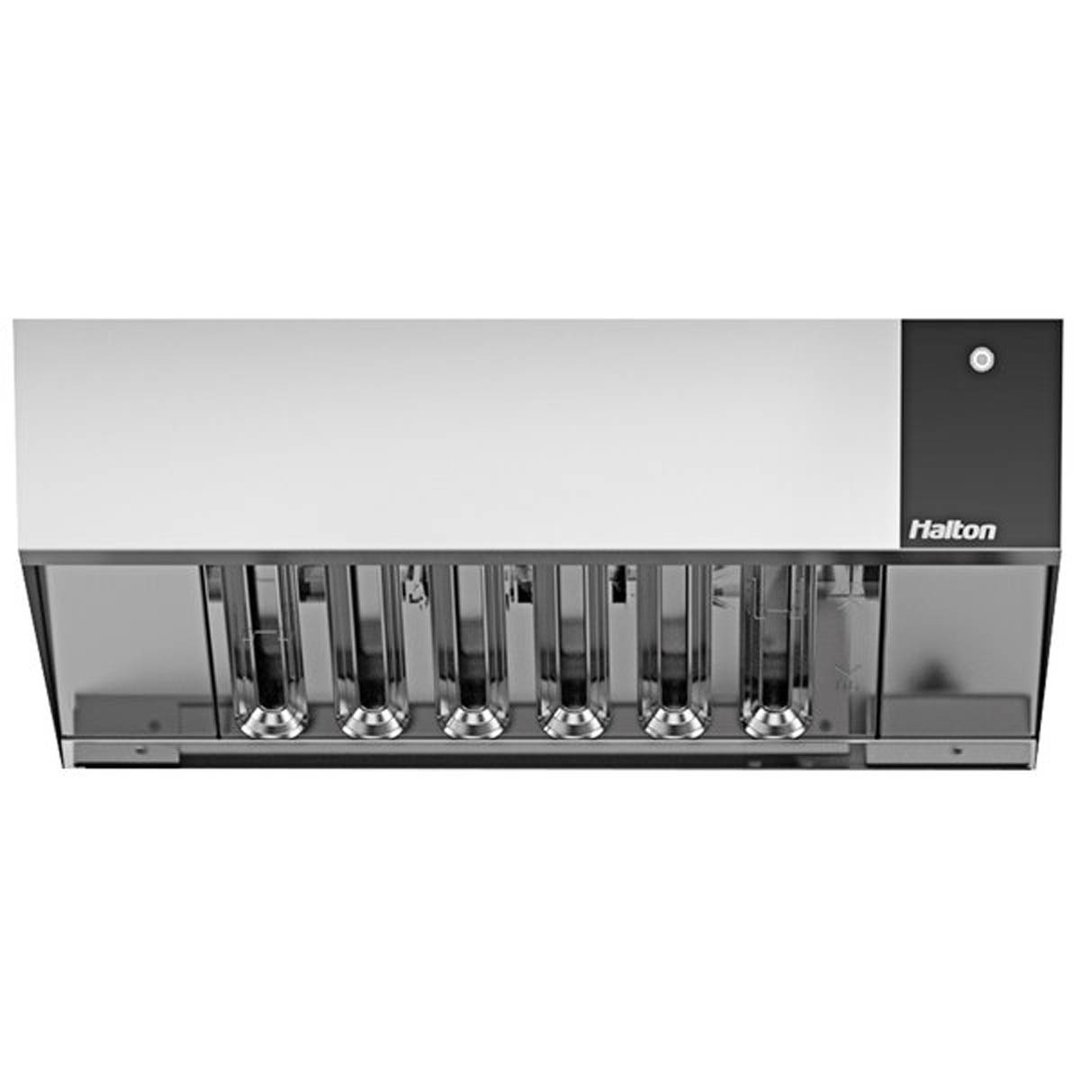

Moffat VH32 VENTLESS CONDENSING HOOD
VH32
Unit shall be a Halton Ventless Condensing Hood, UL listed and UL EPH classified. The unit shall have all stainless steel construction, include 3 stage filtration and incorporate a condensing heat exchanger. Unit will feature an automatic 2 speed extraction fan with interlocked oven operation, Unit shall be 110-120V and fitted with a NEMA 5-15P cordset. Unit shall be provided with VHIK32 Installation Kit for connection and fitment to Moffat Turbofan Convection Oven model E32D4, E32D5, E32T4, E32T5.
STANDARD FEATURES
- Removes need for installation Canopy or Ducted Oven Hood
- Complies with EPA202 Test Method for less than <5mg/ m3 grease laden effluent limits when fitted to Turbofan Convection Oven models E32D, E32T
- UL197, NSF2/ANSI 2 certified
- 3 STAGE FILTERS Grease baffle filter - removable for cleaning Mesh particle filter - removable for cleaning Charcoal odour filter - replaceable
- CONDENSING HEAT EXCHANGER Oven vent condensing Reduces heat emissions
- SELF CONTAINED CONDENSATE COLLECTION Condensate drains to collection pan below oven (No connection to waste drain required)
- REMOTE CONDENSATE DRAIN OPTION Condensate drain tube can be taken to a permanent waste drain (no manual emptying of condensate collection required)
- OVEN INTERLOCKED OPERATION Oven will not operate if Hood not turned on. Oven control alarm notification if Hood not operating. Illuminated power switch on Hood.
- AUTOMATIC 2 SPEED EXTRACTION FAN Low fan speed during idle or cooking/baking process – reduced noise/energy. Automatic high fan speed 10 seconds before end of cook/ bake timer or program. Automatic high speed fan extraction when oven door open.
- 110-120V plug-in 15A NEMA 5-15P cordset fitted
ACCESSORIES - INCLUDED
- # H11715 Replacement Charcoal Filter
From The Manufacturer
Ventless Hood, for E32D5
