T&S Brass B-0230-01 Double Pantry Faucet
General Info
The B-0230-01, 8" wall mount mixing faucet with polished chrome plated brass body, 6" cast swing spout with 2.2 GPM aerator, compression cartridges, lever handles and 1/2" NPT female inlets.
T&S Brass B-0230-01 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 6” cast spout
- Lock washer provided for rigid application
- 2.2 GPM aerator, Series 2 (B-0199-02)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & cast spout and chrome plated metal handles
T&S Brass B-0230-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer

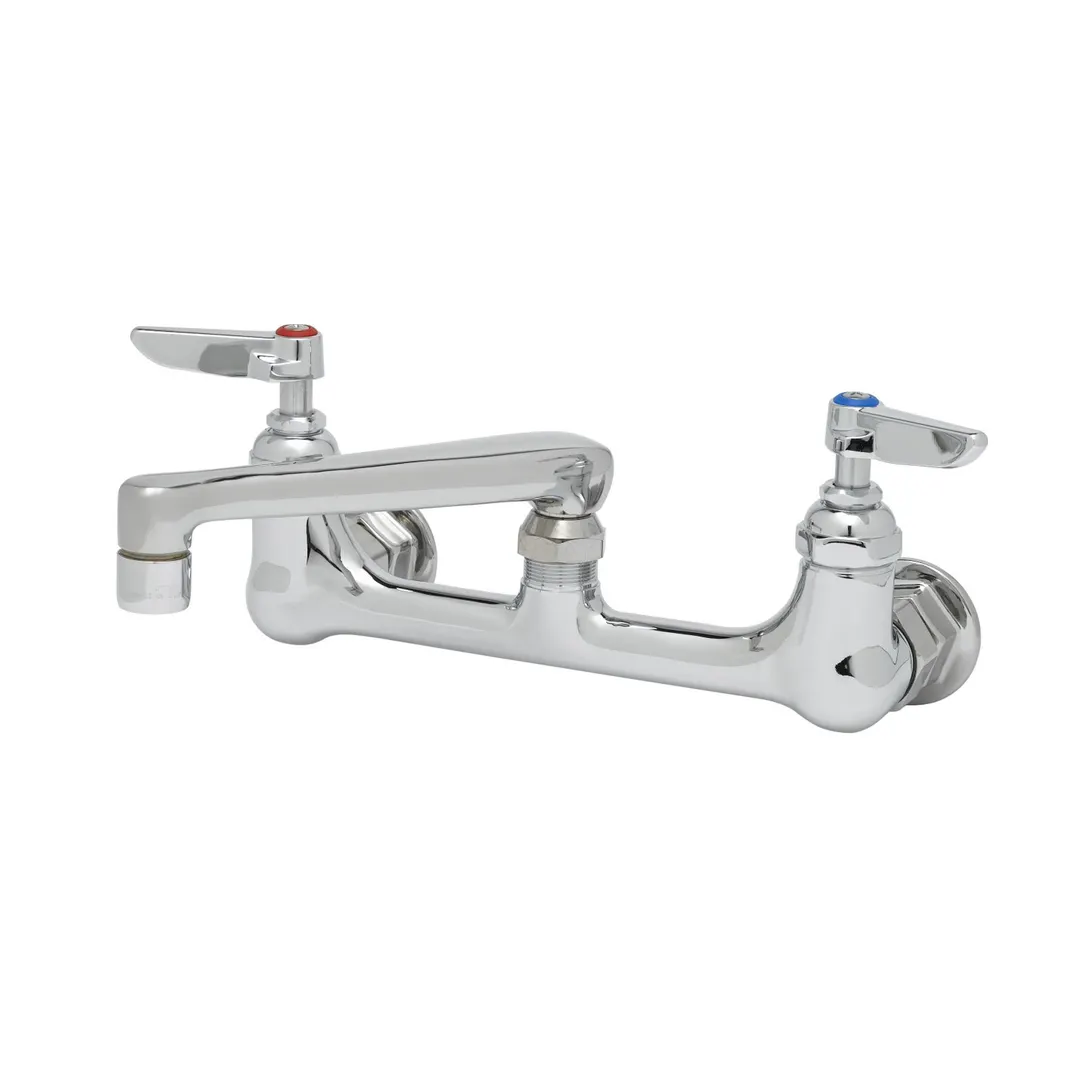

B-0230-LN & 0CS6 Cast Spout Assembly, quarter-turn Eterna cartridges, low lead, ADA Compliant
