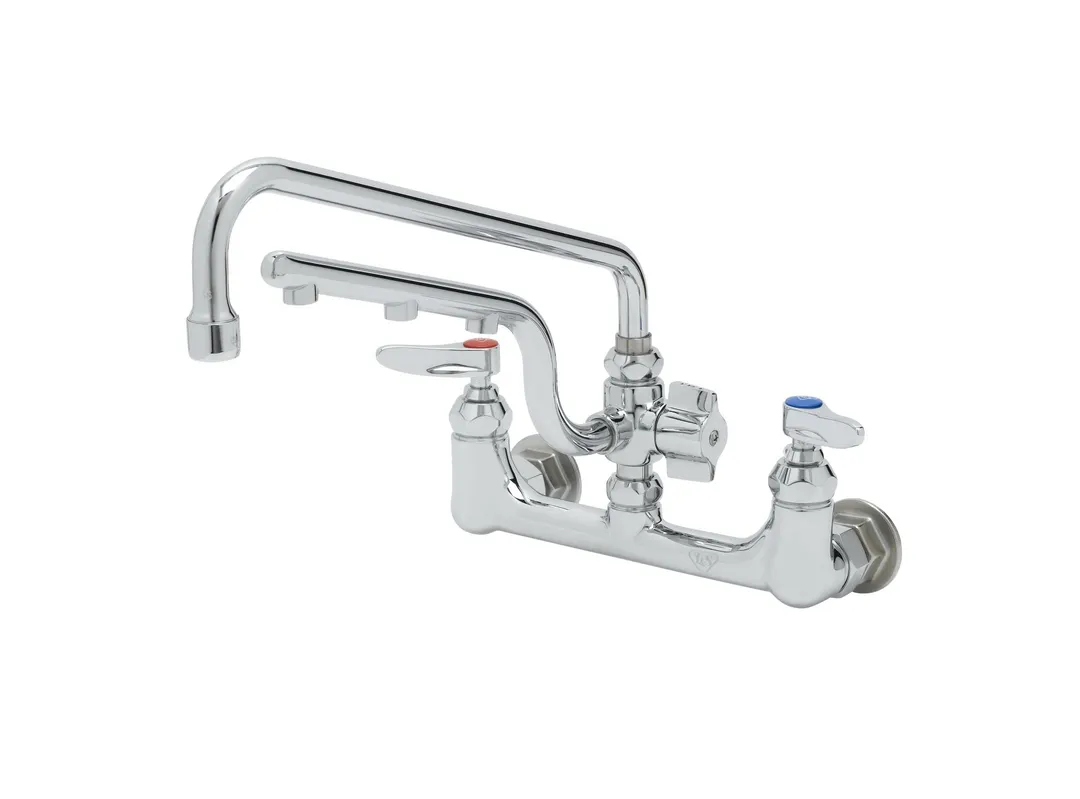

T&S Brass B-0231-U12 ULTRARINSE Wall Mount Mixing Faucet
General Info
The B-0231-U12, 8" wall mount mixing faucet with polished chrome plated brass body, 12" swing nozzle with stream regulator outlet, 10 3/8" 1.5 GPM multiple tip sprayer arm, compression cartridges with checks, lever handles, and1/2" NPT female inlets.
T&S Brass B-0231-U12 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 12” swing nozzle
- 10 3/8" 1.5 GPM multiple tip sprayer arm with180 diverter cartridge switches between nozzle & sprayer arm
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0231-U12 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :
- Nozzle: 23.09 GPM [87.41 L/min] @ 60 psi [4.14 bar]
- Spray Arm: 1.5 GPM [5.68 L/min] @ 60 psi [4.14 bar]
- Other Details : See spec. sheet
From The Manufacturer
UltraRinse 8” wall mount mixing faucet with polished chrome plated brass body, 12” swing nozzle with stream regulator outlet, 10 3/8" 1.5 GPM multiple tip sprayer arm, compression cartridges with spring checks, lever handles, and 1/2” NPT female inlets. Certified to ASME A112.18.1/CSA B125.1, NSF 61-Section 9 and NSF 372. Meets ADA ANSI/ICC A117.1 requirements.
