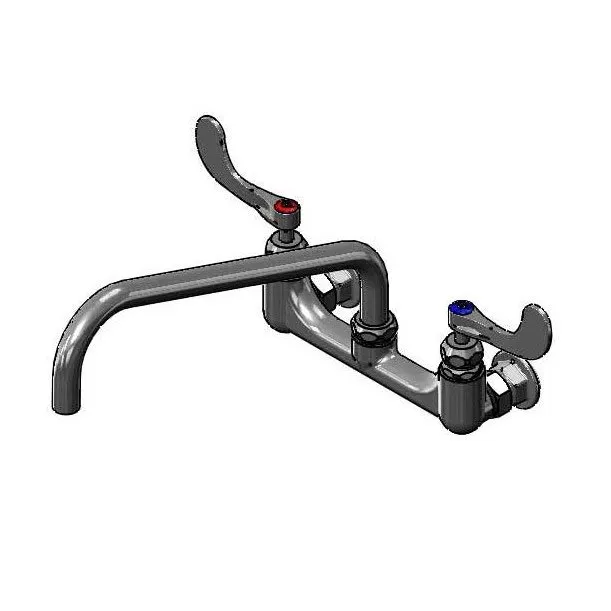

T&S Brass B-0290-14-WH4 Big-Flo Mixing Faucet
General Info
The B-0290-14-WH4, 8" wall mount large flow mixing faucet with polished chrome plated brass body, 14" swing nozzle with plain end outlet, compression spindles, 4" wrist action handles, 3/4" NPT female inlets and 3/4" NPT female short inlet elbows.
T&S Brass B-0290-14-WH4 Features
- 8” wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
- 14” Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Plain end outlet
- Big-Flo compression spindles
- 4" wrist action handles w/ color coded indexes
- 3/4” NPT female eccentric flanged inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4" to 8 1/4“
- 3/4” NPT female short inlet elbows
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0290-14-WH4 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 44.27 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Big-Flo Mixing Faucet, wall mount, 8" adjustable centers, 14" Big Flo swing nozzle & compression spindles, 4" wrist action handles with color coded indexes, chrome plated brass body, 3/4" NPT female inlets, Big Flo cartridges, low lead, cCSAus, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
