T&S Brass B-0290-BT Big-Flo Mixing Faucet
General Info

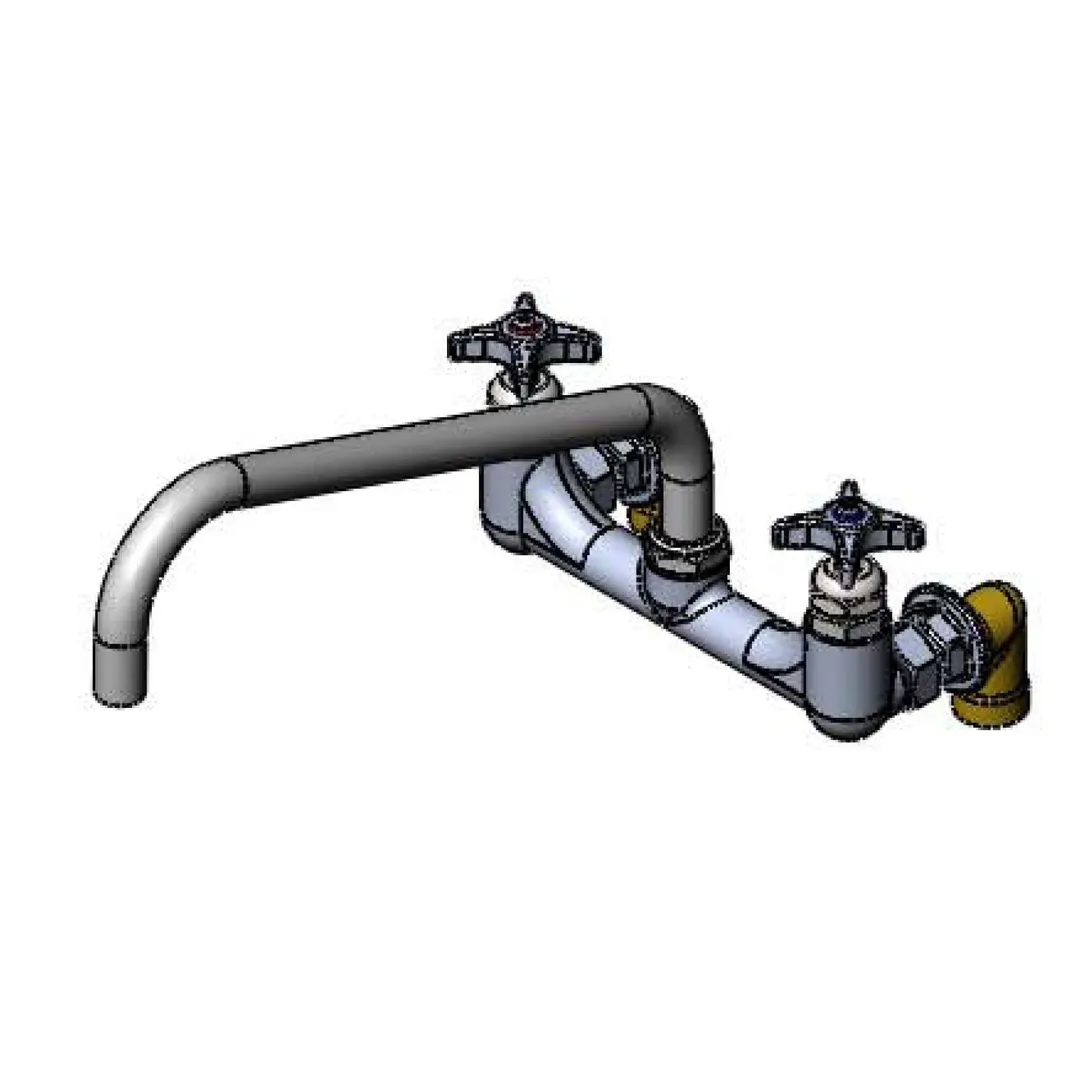

The B-0290-BT, 8" wall mount large flow mixing faucet with polished chrome plated brass body, 12" swing nozzle with plain end outlet, compression cartridges, 4-arm handles, 3/4" NPT female inlets and 3/4" BSPT female shortinlet elbows.
T&S Brass B-0290-BT Features
- 8” wall mount Big-Flo mixing faucet w/ polished chrome plated brass body
- 12” Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Big-Flo compression spindles
- 4-arm handles w/ color coded indexes
- 3/4” NPT female eccentric flanged inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4" to 8 1/4“
- 3/4” BSPT female short inlet elbows
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0290-BT Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 44.27 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Kettle & Pot Sink Faucet, wall mount, 8" adjustable centers, 12" Big-Flo swing nozzle, 12" swing nozzle, 4-arm handles, 3/4" BSPT female inlet
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
