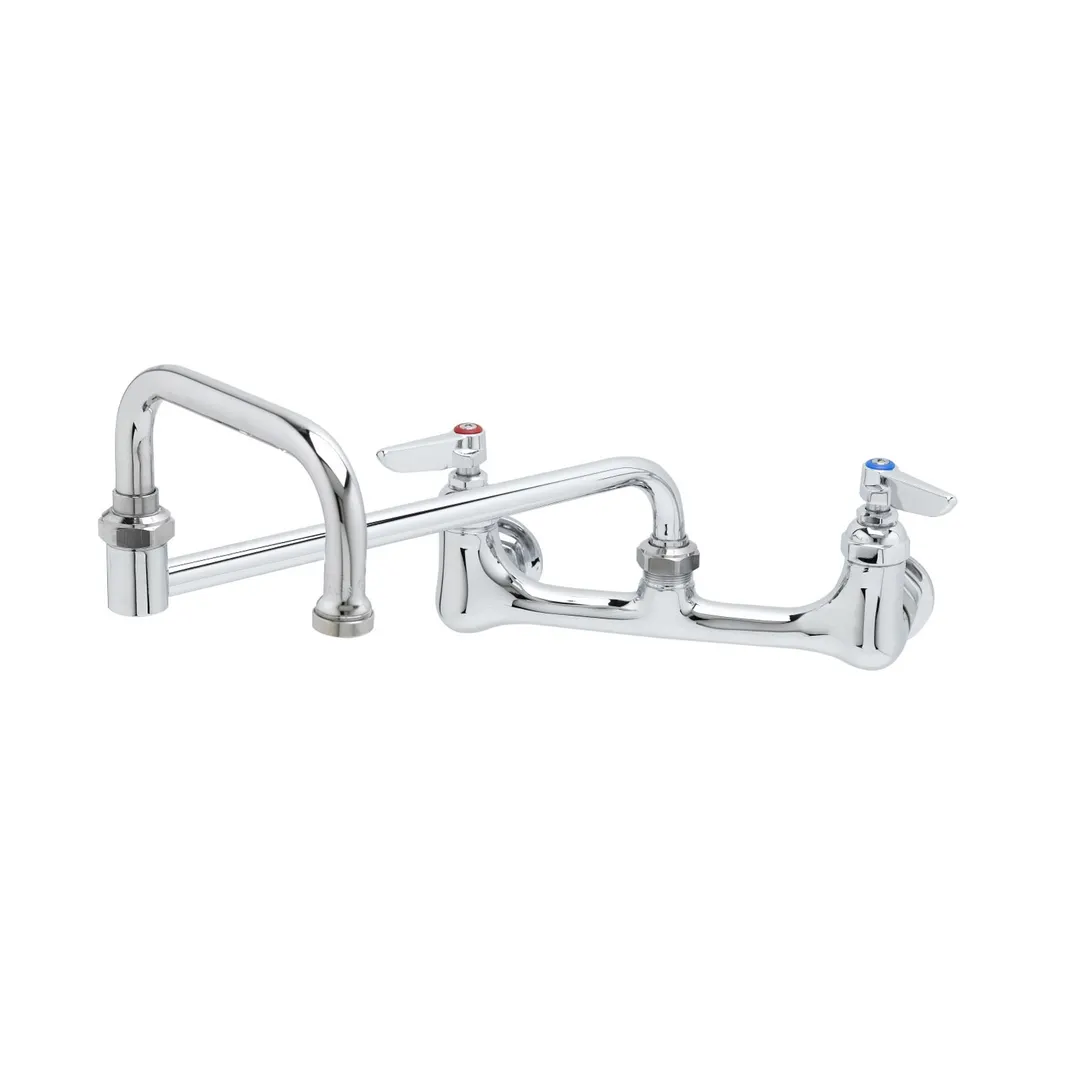

T&S Brass B-0267 Swivel Base Faucet
General Info
The B-0267, 8" wall mount mixing faucet with polished chrome plated brass body, 12" double joint swing nozzle with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets.
T&S Brass B-0267 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 12” double joint swing nozzle with 6” back nozzle and 6” front nozzle
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Cerama cartridges with check valves to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spouts and chrome plated metal handles
T&S Brass B-0267 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 19.22 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sink Mixing Faucet, 12" long double joint swing nozzle, 8" centers, with lever handles, 1/2" NPT female inlet, quarter-turn Eterna cartridges, low lead, ADA Compliant
