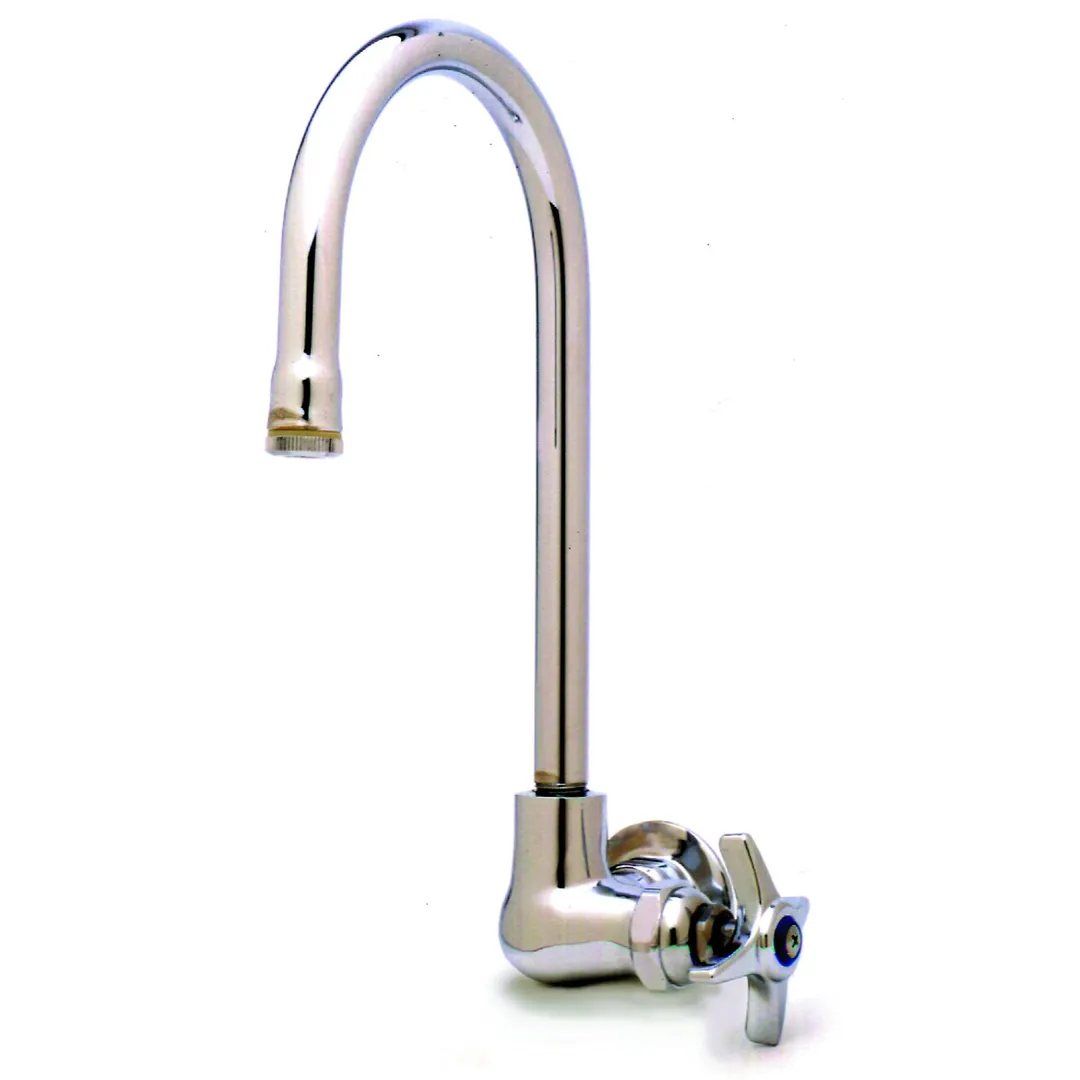

T&S Brass B-0310 Double Pantry Faucet
General Info
The B-0310, Single hole single temperature wall mount faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridge with spring check, 4-arm handle and 1/2" NPTfemale inlet.
T&S Brass B-0310 Features
- Single hole single temperature wall mount faucet w/ polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle w/ blue index
- 1/2” NPT female inlet w/ 2" flange
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handle
T&S Brass B-0310 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate :4.32 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Single Sink Faucet, with gooseneck, wall mounted, 10-3/4"H from center of faucet to top of rigid gooseneck & 5-3/4" to tip of nozzle, 6" spread, 1/2" IPS flanged female inlet, four-arm handle, "C" (or "H"), quarter-turn Eterna cartridges, low lead, ADA Compliant
