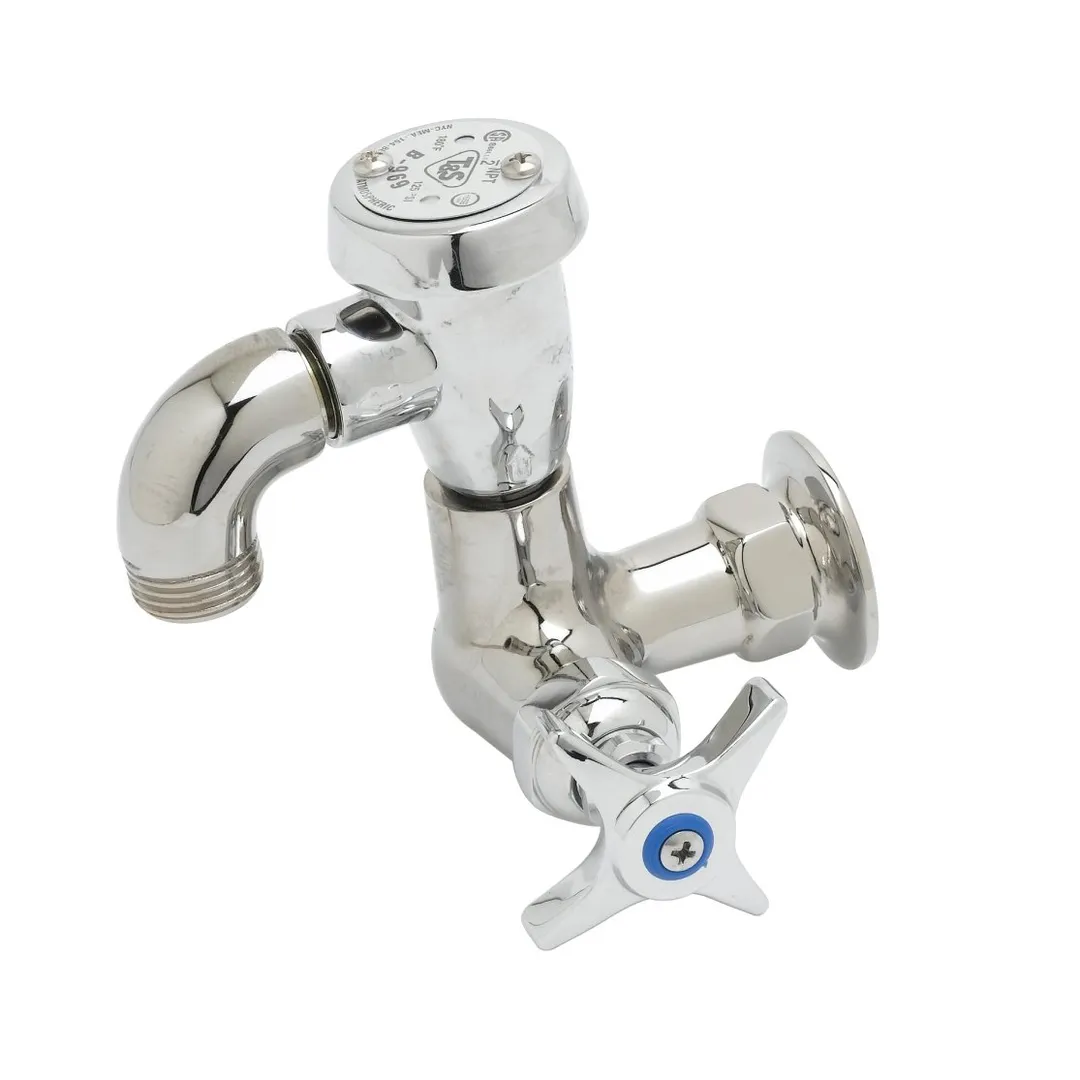

T&S Brass B-2301 Sill Faucet With Vacuum Breaker
General Info
Single temperature, wall mount faucet with polished chrome plated brass body, garden hose male outlet, atmospheric vacuum breaker, compression cartridge with spring check, key or screwdriver controlled handle and 1/2" NPT female inlet.
T&S Brass B-2301 Features
- Single hole, single temperature wall mount faucet
- Garden hose male outlet
- Atmospheric vacuum breaker
- Quarter-turn Eterna compression cartridge w/ spring check
- 4-arm handle with blue index
- 1/2” NPT female inlet with 2” flange
- Material: Polished chrome plated brass body, chrome plated metal handles
T&S Brass B-2301 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 4.24 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Sill Faucet, wall mount, single hole, Eterna cartridge, 4-arm handle with blue color coded index, 1/2" NPT vacuum breaker (B-0969), polished chrome-plated brass faucet body, 3/4" garden hose male outlet, 1/2" NPT female inlet, CSA, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
