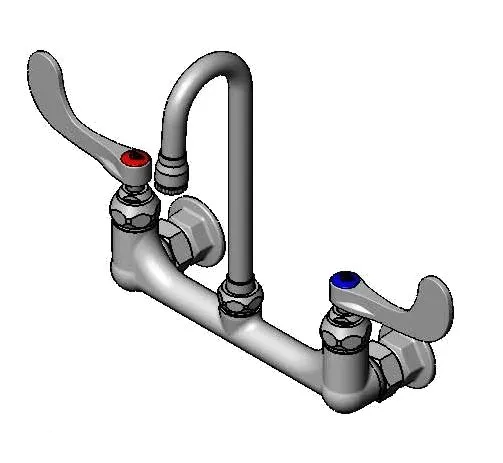

T&S Brass B-0330-01-WH4 Double Pantry Faucet
General Info
The B-0330-01-WH4, 8" wall mount mixing faucet with polished chrome plated brass body, 2 7/8" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, 4" wrist action handles and 1/2" NPTfemale inlets.
T&S Brass B-0330-01-WH4 Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 2 7/8” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4” wrist action handle w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0330-01-WH4 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 23.09 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Mixing Faucet, wall mount, 8" adjustable centers, quarter-turn Eterna cartridges with spring checks, 4" wrist action handles with color coded indexes, 2-5/8" swivel/rigid gooseneck with B-LT stream regulator outlet, includes lock washer for rigid application, polished chrome-plated brass faucet body, 1/2" NPT female inlets, CSA, ADA Compliant
