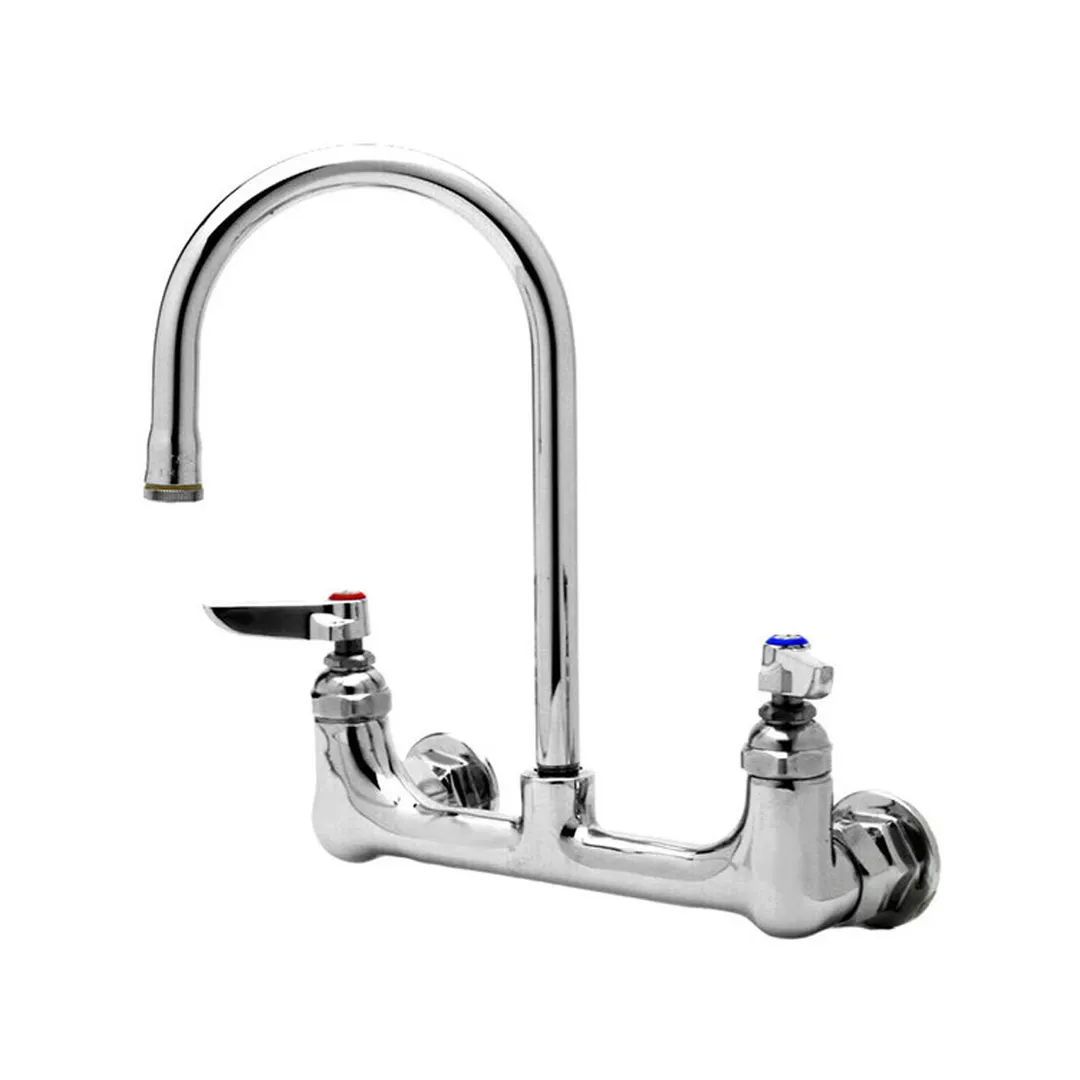

T&S Brass B-0331-VF035-EL Pantry Faucet
General Info
The B-0331-VF035-EL, 8" wall mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with 0.35 GPM vandal resistant non- aerated spray device, compression cartridges with spring checks, lever handles and1/2" NPT male elbows.
T&S Brass B-0331-VF035-EL Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- 0.35 GPM vandal resistant non-aerated spray device, Series 6 (B-0199-06-N035)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT male inlet elbows included
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0331-VF035-EL Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 0.35 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Double Pantry Faucet, wall mount, 8" centers, 5-3/4" swivel/rigid gooseneck 0.35 GPM VR outlet, with stream regulator, lever handles with color coded indexes, quarter-turn Eterna cartridges with spring checks, polished chrome plated brass, 1/2" NPT female inlets, installation kit, low lead, cCSAus, ADA Compliant
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
