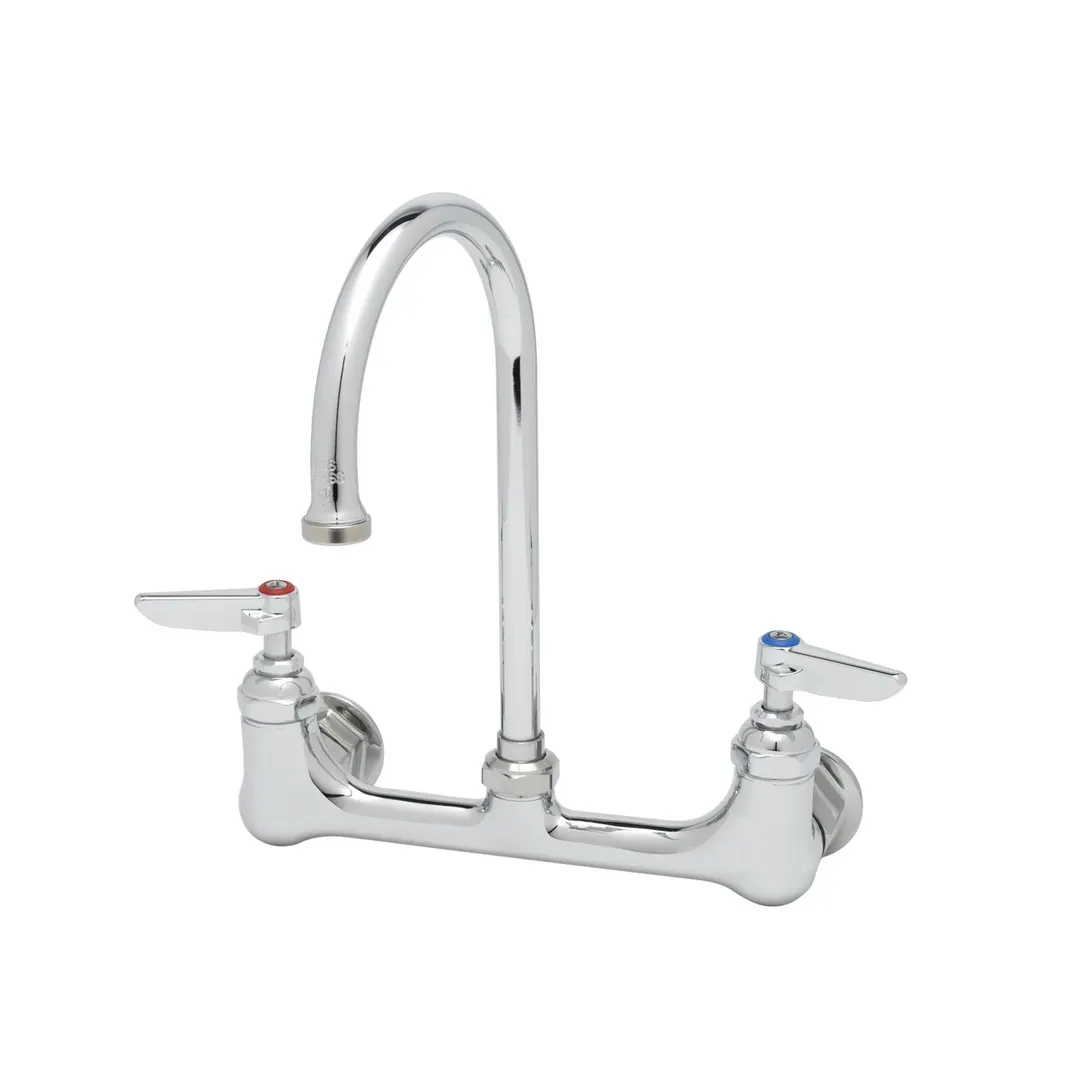

T&S Brass B-0331-VF22-EL Pantry Faucet
General Info
The B-0331-VF22-EL, 8" wall mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM vandal resistant aerator, compression cartridges with spring checks, lever handles and 1/2" NPT maleelbows.
T&S Brass B-0331-VF22-EL Features
- 8” wall mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- 2.2 GPM vandal resistant aerator, Series 6 (B-0199-06)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- Lever handles w/ color coded indexes
- 1/2" NPT male inlet elbows included
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 7 3/4” to 8 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0331-VF22-EL Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Faucet, wall mount, 8" adjustable centers, 6" swivel gooseneck (with lock washer for rigid application), quarter-turn Eterna compression cartridges with spring checks, lever handles with color coded indexes, 0.35 GPM vandal resistant non-aerated spray device, polished chrome-plated brass faucet body, includes B-0230-K installation kit, 1/2" NPT female inlets, cCSAus, ADA Compliant
