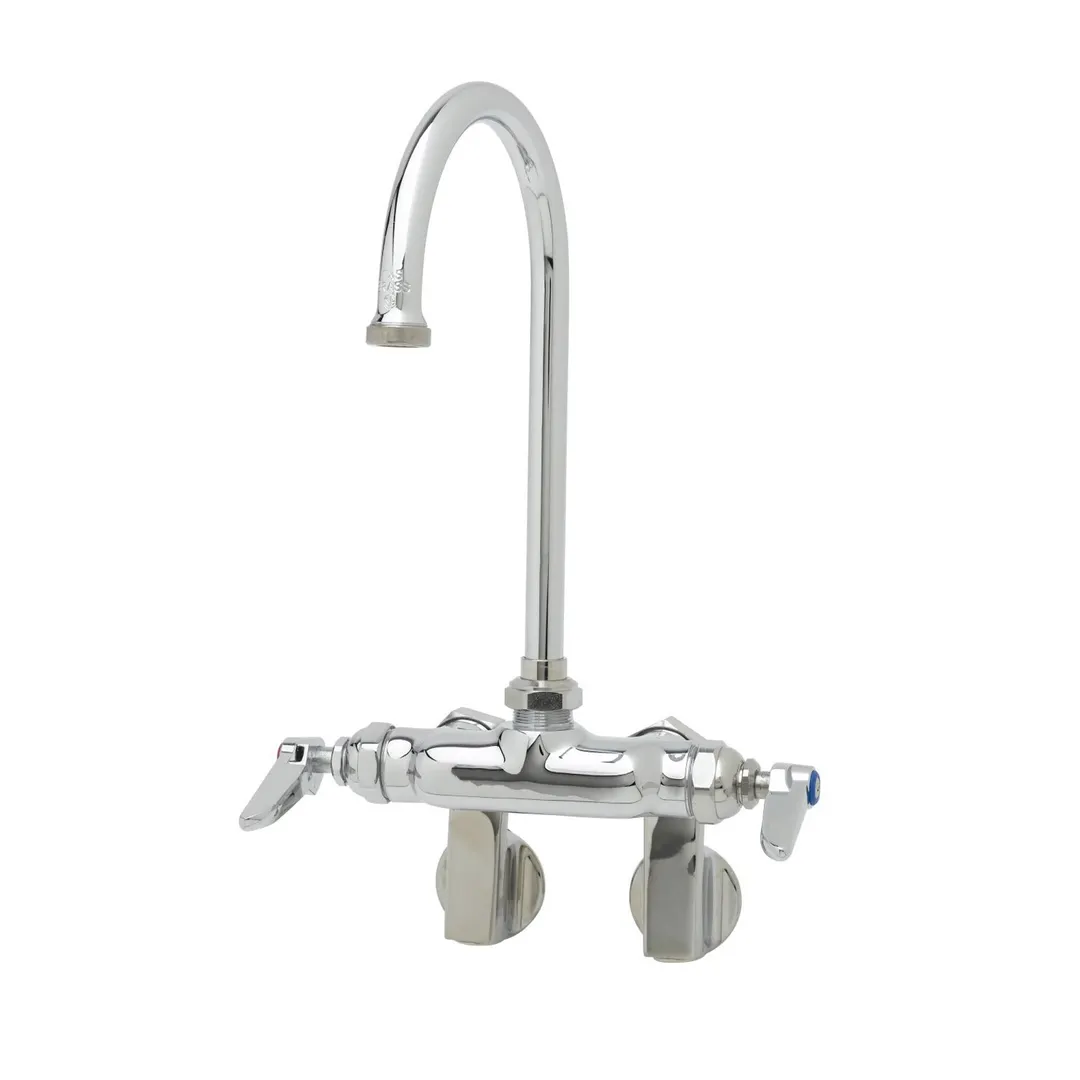

T&S Brass B-0341 Double Pantry Faucet
General Info
The B-0341, Wall mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female adjustable arminlets.
T&S Brass B-0341 Features
- Adjustable inlet wall mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer included for rigid applications
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges with spring checks to prevent crossflow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 2 1/4” to 8 1/4” above or below centerline
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0341 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 13.80 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Faucet, splash mounted, swivel gooseneck, adjustable from 2-1/4" - 8-1/4" centers, 1/2" IPS female with flange, lever handles, 9-1/4" center line of faucet body to tip outlet, 10-1/4" to top, 6" spread, Eterna cartridges, low lead, ADA Compliant
