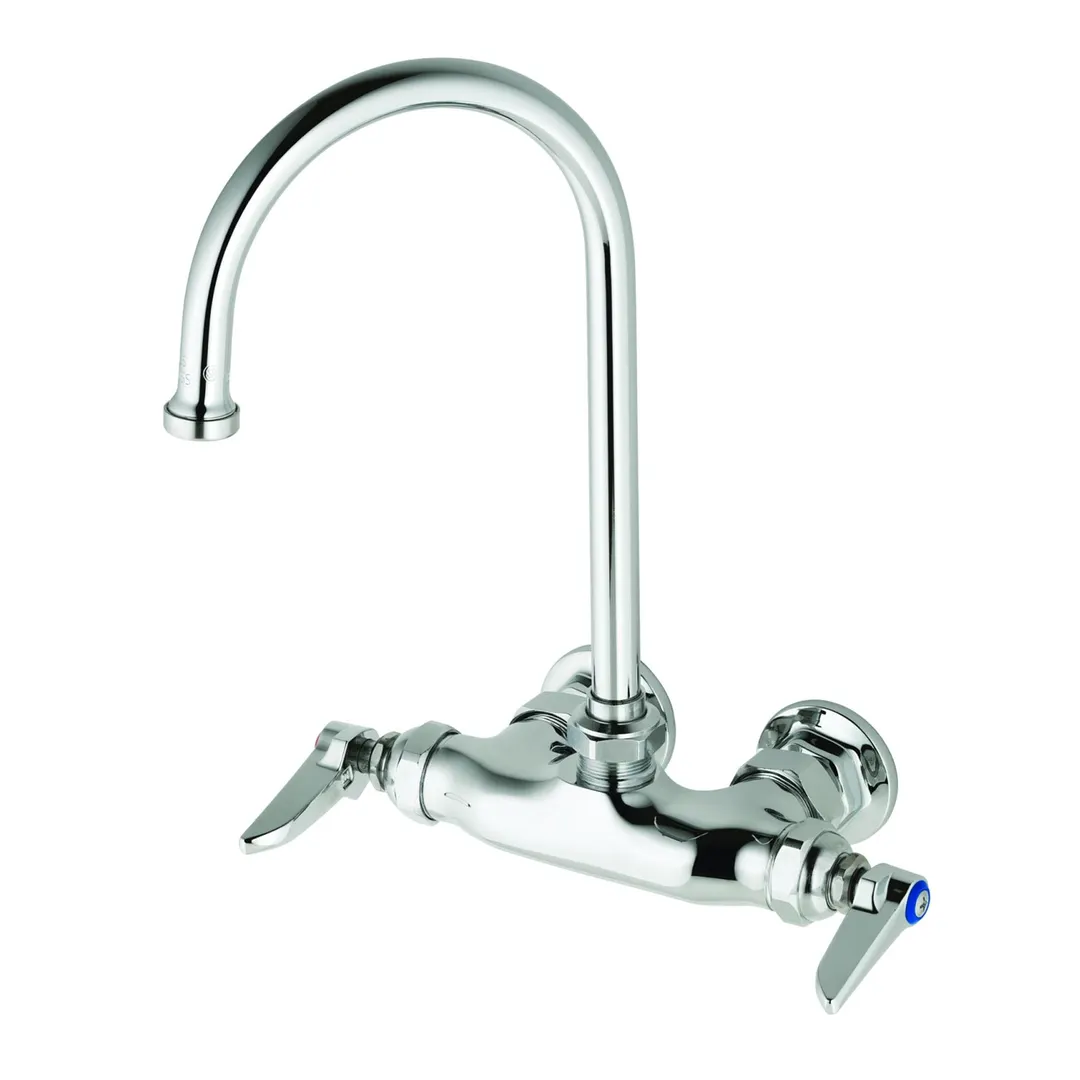

T&S Brass B-0346 Double Pantry Faucet
General Info
The B-0346, 3 3/8" wall mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with stream regulator outlet, compression cartridges with spring checks, lever handles and 1/2" NPT female inlets.
T&S Brass B-0346 Features
- Wall mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Lock washer provided for rigid application
- Stream regulator outlet, Series 1
- Quarter-turn Eterna compression cartridges with spring checks to prevent crossflow of water
- Lever handles w/ color coded indexes
- 1/2” NPT female eccentric inlets w/ Ø2” flanges
- Adjustable centers from 3 1/8” to 3 5/8”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0346 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 18.50 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Faucet, splash mounted, 3-3/8" O.C, swivel gooseneck, 10-1/4"H from center of faucet to top, 5-1/4" to tip of nozzle - 6" spread, 1/2" IPS eccentric flanged female inlets, lever handles, Eterna cartridges, low lead, ADA Compliant
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
