T&S Brass B-1115-132XN5Q4 Workboard Mixing Faucet
General Info

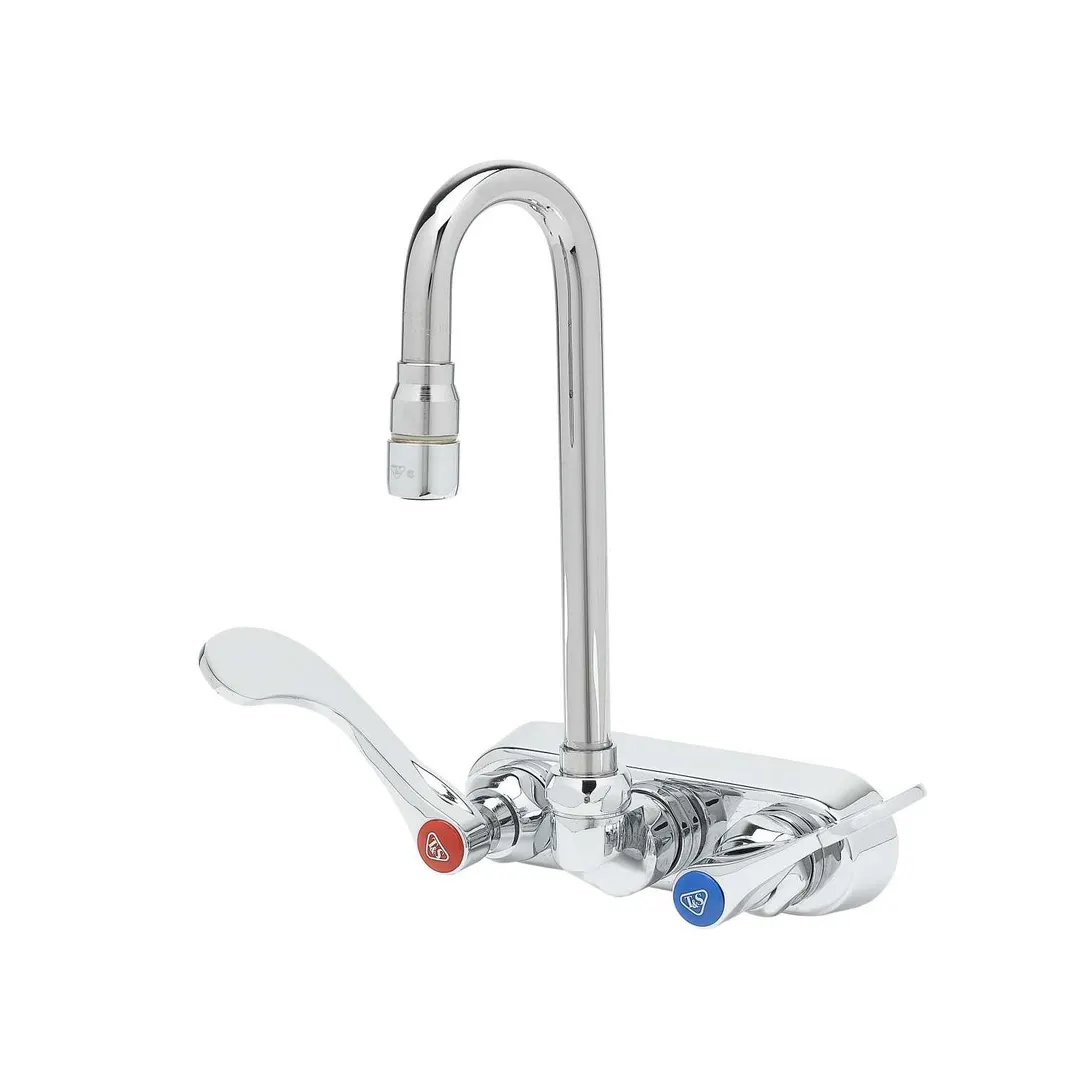

The B-1115-132XN5Q4, 4" wall mount mixing faucet with chrome plated brass body, 2 7/8" swivel/rigid gooseneck with 0.5 GPM non-aerated spray device, compression cartridges with spring checks, 4" wrist action handles, 1/2" NPT male inlets and chrome plated escutcheon.
T&S Brass B-1115-132XN5Q4 Features
- 4" wall mount mixing faucet w/ chrome plated brass body
- 2 7/8” swivel/rigid gooseneck
- Lock washer provided for rigid application
- 0.5 GPM non-aerated spray device, Series 1 (B-0199-01-N05)
- Quarter-turn Cerama cartridges w/ check valves to prevent cross flow of water
- 4" wrist action handles w/ color coded indexes
- 1/2” NPT male inlets
- Tailpieces and nuts for 1/4” NPT male connections
- Chrome plated escutcheon
- Material: Chrome plated brass body & tubular spout and chrome plated metal handles & escutcheon
T&S Brass B-1115-132XN5Q4 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 0.5 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Workboard Faucet, splash/wall mount, 4" OC, 2-11/16" swivel gooseneck spout with 0.5 GPM spray device (includes lock washer), wrist handles, Eterna cartridges with spring checks, 1/2" NPT male inlets, includes tailpieces & nuts for 1/4" NPT connection, low lead, ADA Compliant
