Optimized Dual‑Zone Wine Storage for Restaurants

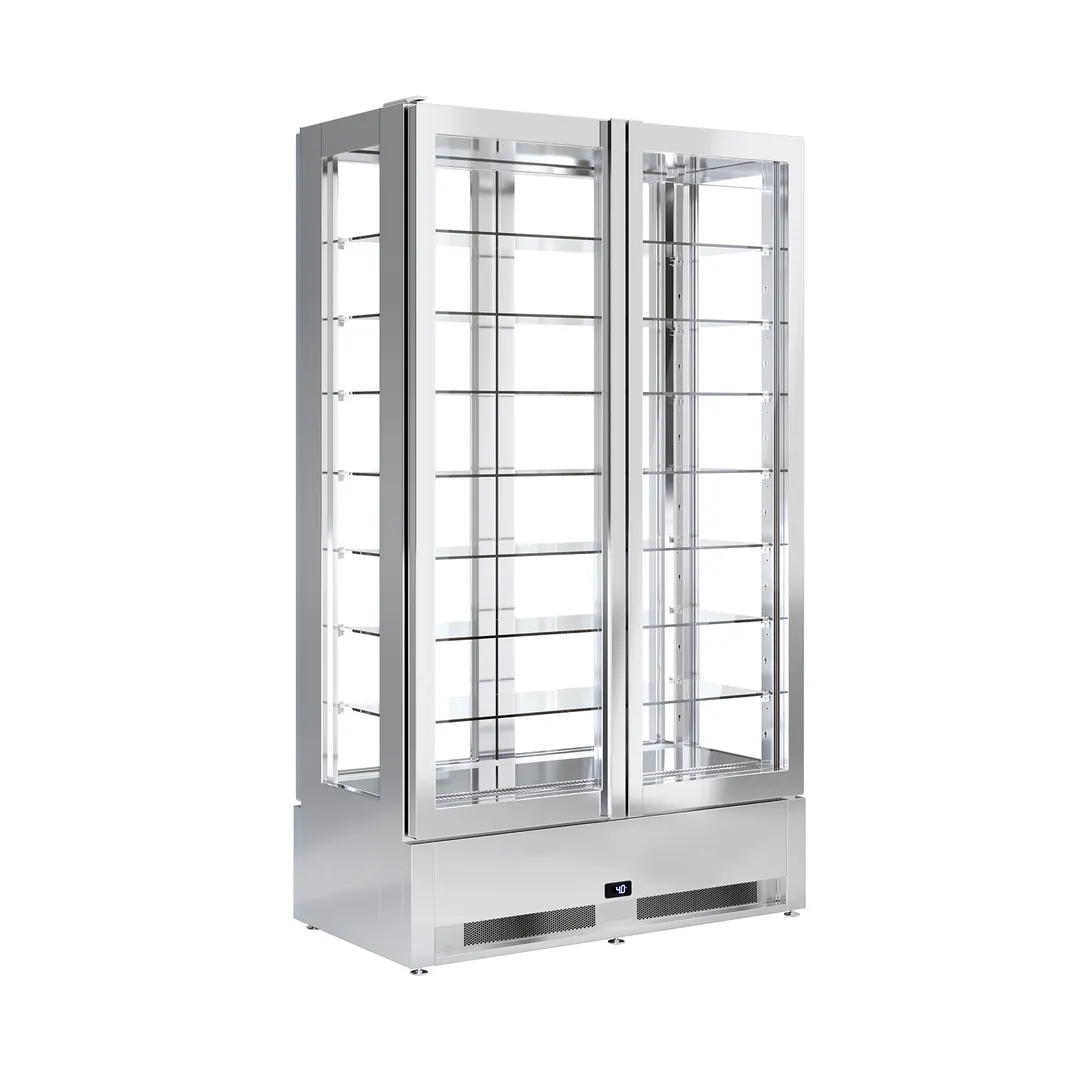

The CIAM USA Brilliant BRL2DTT2PI delivers precise dual‑zone wine storage, boosting service speed and preserving quality in busy restaurants.
Key Features
- Dual‑temperature zones (Zone‑01 & Zone‑02) each 39°‑42°F or 45°‑65°F for flexible wine and champagne service
- Dimensions 54.6" L × 27.0" W × 97.4" H stainless steel chassis with polished interior, fitting high‑capacity bar layouts
- Heated double‑paned glass doors with mirror serigraphy and anti‑condensation heating maintain clear display
- 3000 K LED lighting and seven height‑adjustable tempered glass shelves enhance visibility and product organization
- CE, ETL, UL‑NSF certified 208‑230 V single‑phase system with automatic defrost ensures reliable, compliant operation
From The Manufacturer
Brilliant Series Refrigerated Display/Merchandiser with Dual-Temperature Zones, Pass-Through Configuration, 54-5/8"L x 27-1/16"D x 97-3/8"H, (2x) self-contained condensing units to be supplied by Ciam, ventilated refrigeration throughout, automatic defrost, Zone-01 temperature range: 39°-42°F (or 45°-65°F); Zone-02 temperature range: 39°-42°F (or 45°-65°F), double paned glass perimeter walls, (2x) sets of (2x) hinged double paned glass doors with mirror serigraphy (glass trim), all glasses heated to prevent condensation, polished stainless steel interior and exterior finishes, (7x) height adjustable tempered glass shelves, stainless steel chassis with height adjustable feet, 3000°K LED lighting throughout, (2x) digital control panels, 208-230V/60Hz/1Ph electrical, CE/ETL/UL-NSF Certified
**Minimum 5-7/8" wide/tall clearances required for proper air exhaust. CIAM USA cannot be held responsible for condensing unit issues caused by inadequate breathing.
**Cabinet requires two heated evaporator pans if client does not have access to a floordrain.
**Please contact Ciam USA if cabinet is to be connected to a remote rack system, or if the condensing units are to be supplied by another manufacturer.
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
