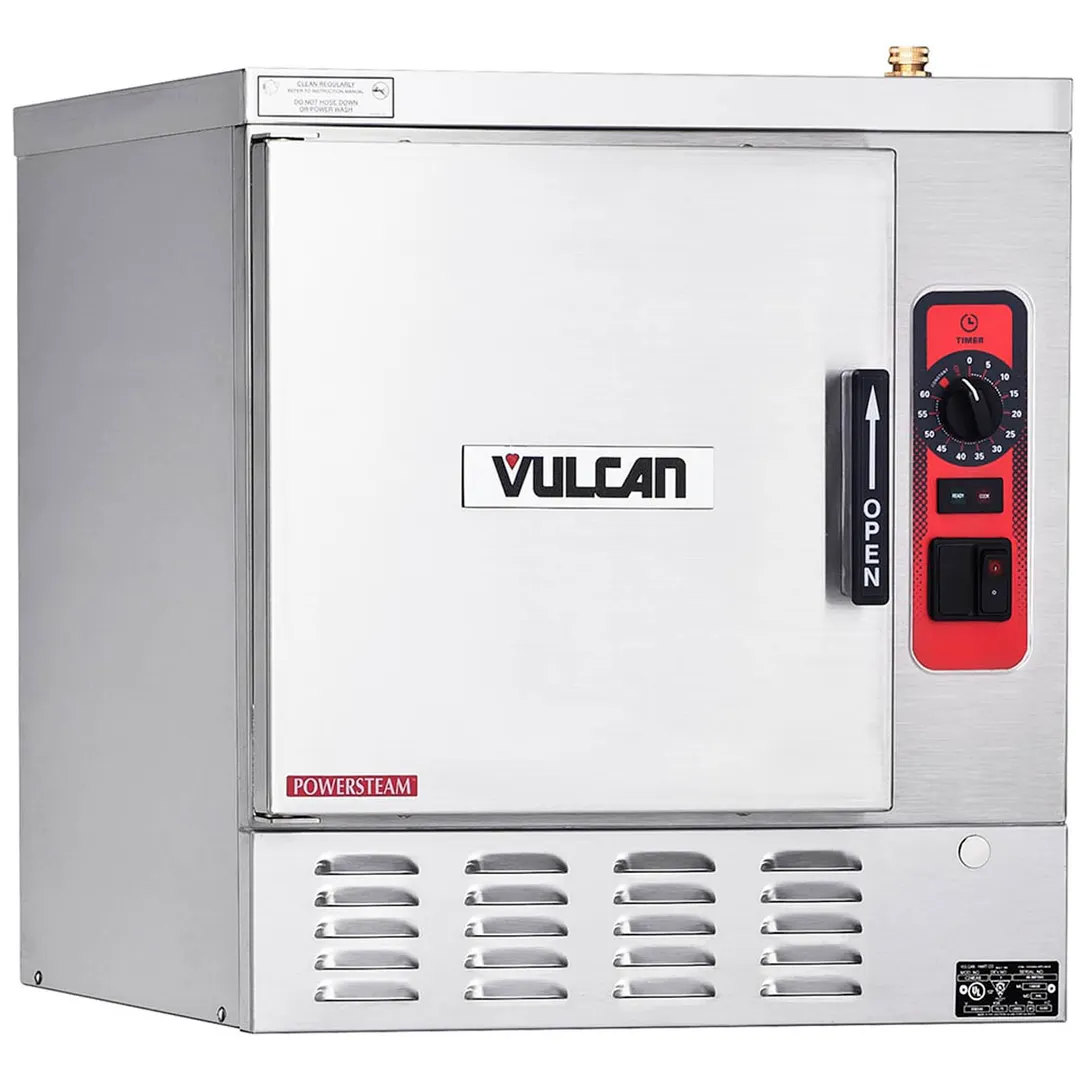

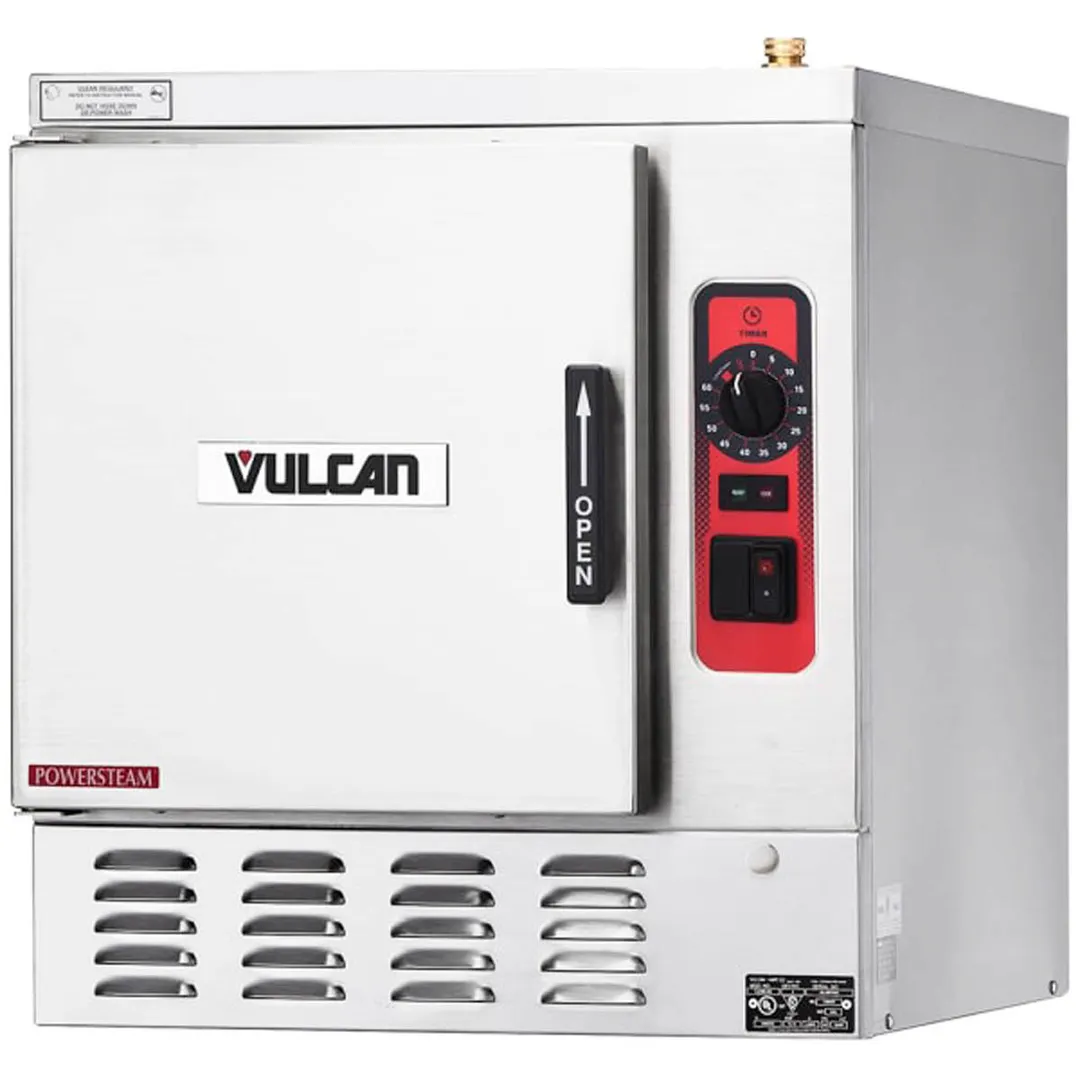

Vulcan C24EA-PS SERIES ELECTRIC COUNTER CONVECTION STEAMER
SPECIFICATIONS
Single compartment electric convection steamer. PowerSteam™ superheated 235°F steam for faster cook times. High output stainless steel generator with two-speed Staged Water Fill. Generator also includes Smart Drain System (timed drain) with PowerFlush. Professional Controls with 60 minute timer, buzzer, and constant steam feature, cook/ready lights and power switch. Stainless steel exterior and cooking compartment with coved interior corners. Heavy duty door and door latch mechanism with door gasket guard. Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1, 240/60-50/3 and 240/60-50/1. Split water line connection. 1 1/2"NPT drain connection.
Exterior Dimensions:
- C24EA3-LWE: 3 pan: 24"w x 33"d x 19 1⁄2"h.
- C24EA5-LWE: 5 pan: 24"w x 33"d x 26"h.
STANDARD FEATURES
- PowerSteam 235°F superheated steam
- High output stainless steel steam generator
- Staged Water Fill includes high-speed initial fill and low-speed fill during operation.
- Smart Drain System (timed drain) with PowerFlush.
- 60-Minute timer with constant steam setting
- Illuminated power switch with cook and ready lights.
- Cord strain relief
- Stainless steel exterior and cooking compartment with coved interior corners.
- Heavy duty door and door latch mechanisms with gasket guard.
- Shipped for 208/60-50/3 electrical service. Can be field converted to 208/60-50/1 and 240/60-50/3 and 240/60-50/1.
- Split water line connection. 1 1⁄2" NPT drain connection
- One year limited parts and labor warranty.
OPTIONS
- Ultrasonic SonicSafe™ Scale Prevention for automatic protection against mineral buildup, includes second year extended limited parts and labor warranty.
- Second year extended limited parts and labor warranty contract.

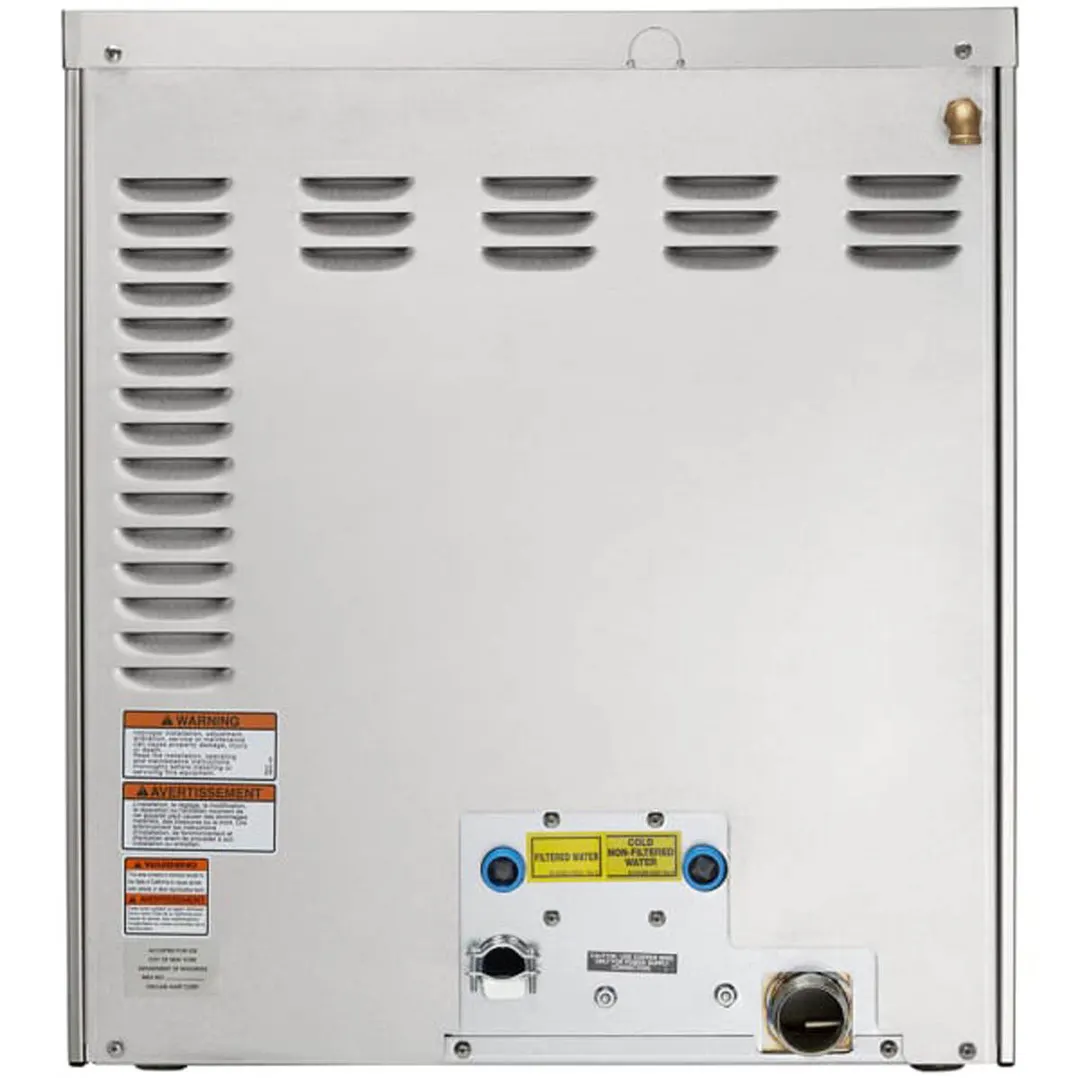

SERVICE CONNECTIONS:
- ELECTRICAL CONNECTIONS: Field Wire Electrical Connection 1 1⁄4" (32 mm) K.O. service entrance.
- DRAIN: 1 1⁄2" IPS piped to open drain. No solid connections. 60" length before open air gap opening and not more than two bends or elbows. Note: Stacked units must have independent drains, do not connect together.
- GENERATOR WATER SUPPLY: 3⁄4" (19 mm) male NSHT to generator, flow rate 4 gpm @ minimum 20 to maximum 60 psi. (138-414 kPa) treated water.
- CONDENSING WATER SUPPLY: 3⁄4" (19 mm) male NSHT to condenser, flow rate 4 gpm @ minimum 20 to maximum 60 psi. (138-414 kPa) untreated water.
From The Manufacturer
Convection Steamer, countertop, electric, PowerSteam™ Series with Superheated Steam, 1 compartment, 24" wide, (5) 12" x 20" x 2-1/2" pans capacity, high output stainless steel steam generator with Timed Smart Drain & Powerflush, staged water fill, professional controls with 60-minute timer, buzzer & constant steam feature, cook/ready lights & power switch, split water lines, stainless steel interior & exterior, leveling feet, cULus, UL EPH Classified
