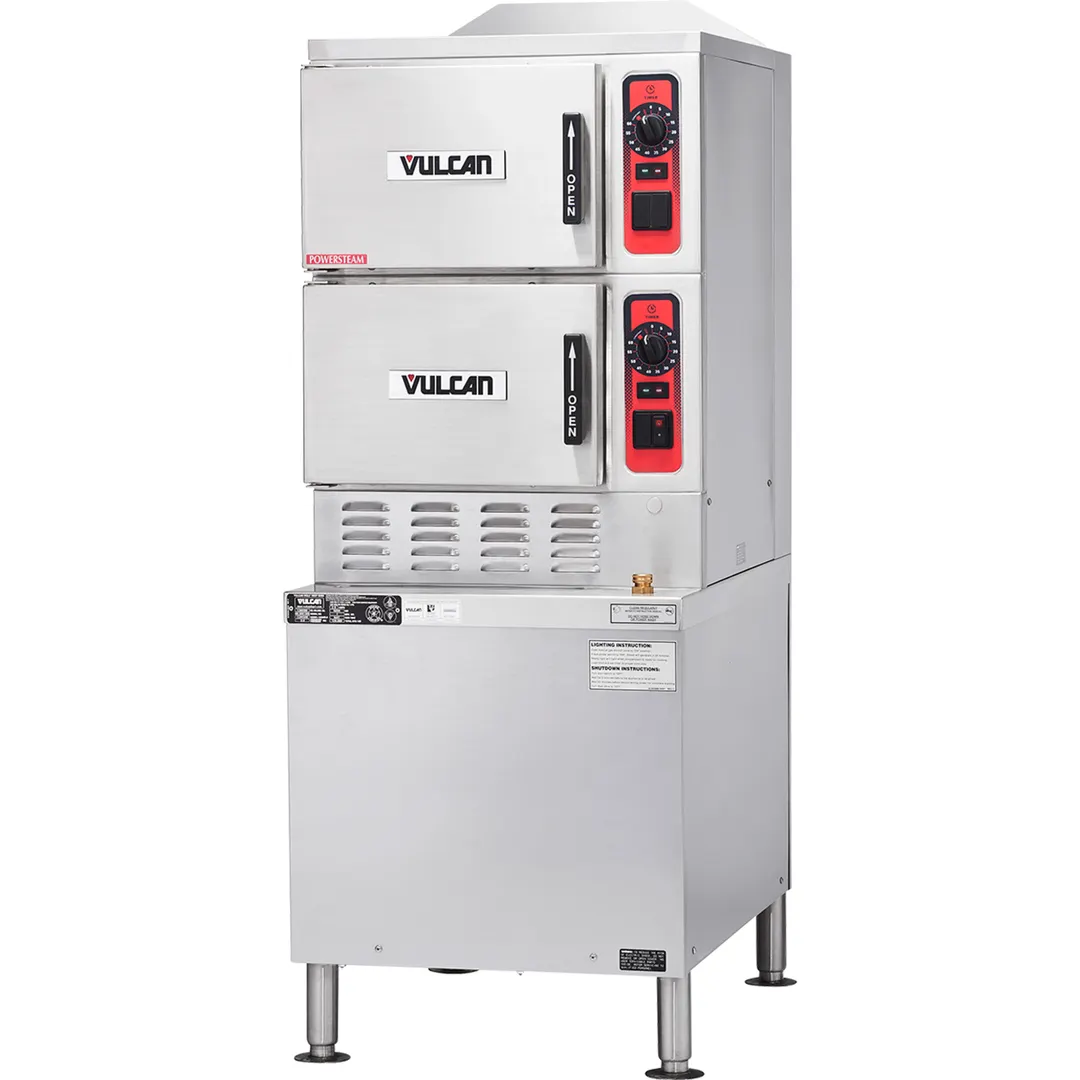

Vulcan C24GA10-PS Floor Model Gas Convection Steamer
Vulcan C24GA10-PS Standard Features
- Stainless steel exterior.
- Two stainless steel cooking compartments with coved interior corners.
- 125,000 BTU/hr. stainless steel steam generator with staged water fill.
- Separate 60 minute timer with constant steam feature for each compartment and illuminated power switch for each compartment.
- Heavy duty doors and door latch mechanisms.
- Ready/Cook indicators.
- Stainless steel water resistant enclosed cabinet base.
- 6" adjustable stainless steel legs with flanged feet.
- 3⁄4" rear gas connection and gas pressure regulator.
- Elevation from sea level to 8,999 feet standard.
- Requires 120/60/1 power supply, 2.0 amps maximum draw.
- Split water line connection. Treated and untreated water connections. 11⁄2" NPT drain connection.
- One year limited parts and labor warranty
Vulcan C24GA10-PS Specifications
- Weight: 675 lbs
- Width: 24"
- Height: 72"
- Depth: 35.4"
- Width (side to side): 24"
- Pan capacity per compartment: (5) 12"x20"x2-1/2" deep
- Interior Finish: stainless steel
- Type: 1 steam generator
From The Manufacturer
Convection Steamer, Gas, PowerSteam™ Series with Superheated Steam, 2 compartments on 24" cabinet base, (10)12" x 20" x 2-1/2" deep total pan capacity, staged water fill high output stainless steel steam generator with Timed Smart Drain & PowerFlush, auto blowdown, professional controls with 60 minute timer, buzzer for each compartment, & constant steam feature, split water line, stainless steel interior, exterior, frame & flanged feet, electric ignition, 125,000 BTU, CSA Flame, CSA Star, UL EPH Classified
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
