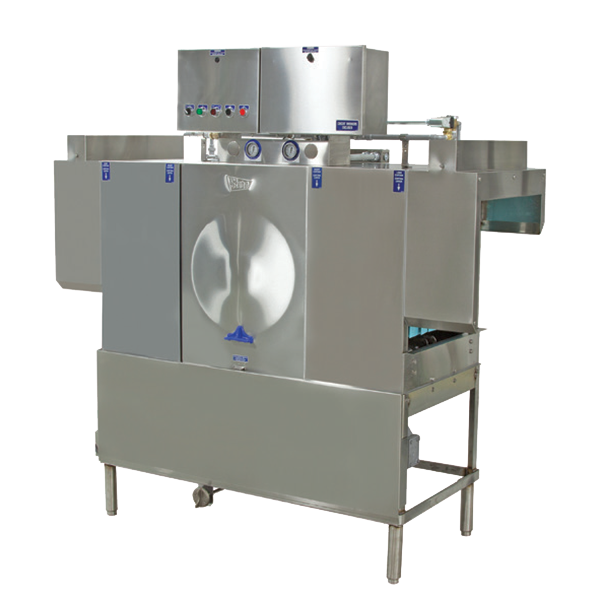

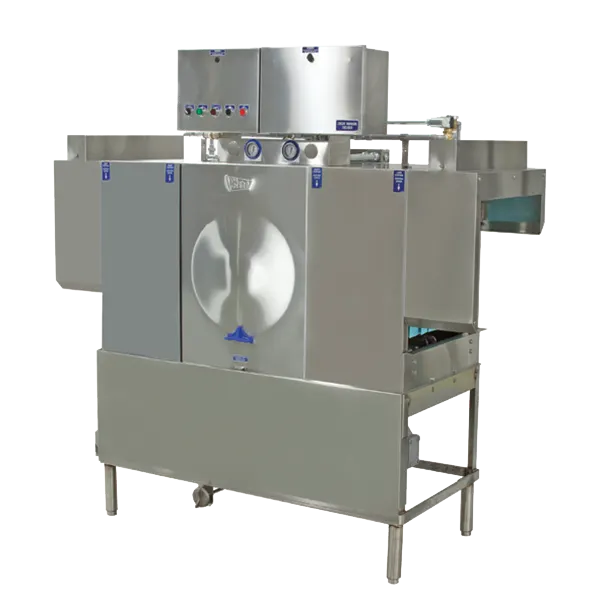

STERO ER-54 Rack Conveyor Series
Why Stero ER-54:
The STERO ER-54 adds 10" of length to the ER-44 creating more separation between the wash and rinse zones for optimal results creating a high volume, low water consuming washer in a 54" footprint.
The full rack width washing pattern with our 225 gallons per minute pump powers this dishwashing workhorse. Rinsing and sanitizing is controlled by STERO’s exclusive rack activated final rinse which guarantees accurate, trouble free cleaning.
Easy to operate, accessibility to components for maintenance and a basic design that produces clean dishes… that is the STERO ER-54 conveyor.
Standard Features:
- 223 racks per hour
- Rinse 2.43 gpm /.65 gallons per rack
- 21" opening accepts most ware
- Automatic fill maintains proper tank levels
- Automatic start, rack activated switch starts conveyor and pumps
- Automatic shut down stops operation during idle periods
- 2 HP wash motor recirculating 225 gpm
- Single point drain connection
- Center-fed wash manifold
- Stainless steel front enclosure panel protects motors and controls from moisture
- Door interlock switches prevents operation if door is open
- Stainless steel drain valves and poppets, foot activated
- Kit 55, included prv, shock arrestor and pressure gauge in final rinse line
- Bell-type stainless steel skimmer acts as overflow and removes fats and oils from the wash tank
From The Manufacturer
Dishwasher, conveyor type, high temp, water saver, single tank, additional 10" of length, (223) racks per/hour, tank heat to be specified, auto fill, shut-down timer, recirculated power wash, fresh water 180° final sanitizing rinse, stainless steel front panel, tank & hood, 2 HP, cULus, NSF, ENERGY STAR®
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
