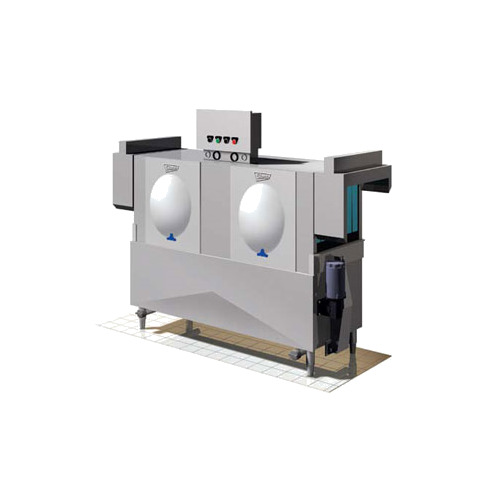

STERO SCT-76 Rack Conveyor Series
Why Stero SCT-76:
Stero’s SCT Series of Rack Conveyors provide the most powerful rack conveyors in the industry. The STERO SCT-76 features a heated recirculating wash and rinse tank equipped with a 28 jet sprayer manifold top and bottom located in each tank providing an extremely powerful washing solution followed by a fresh water rinse in a 76" footprint. The full rack width washing pattern with our 225 gallons per minute pump powers this dishwashing workhorse. Rinsing and sanitizing is controlled by STERO’s exclusive rack activated final rinse which guarantees accurate, trouble free cleaning.
Easy to operate, accessibility to components for maintenance and a basic design that produces clean dishes… that is the STERO SCT-76 conveyor.
Standard Features:
- 309 racks per hour
- Rinse 4.53 gpm/.88 gallons per rack
- Automatic fill maintains proper tank levels
- Automatic start, rack activated switch starts conveyor and pumps
- Automatic shut down stops operation during idle periods
- 2 HP wash and rinse motor each recirculating 225 gpm
- Single point drain connection
- 2 large inspection doors
- Center-fed wash and rinse manifolds
- Stainless steel front enclosure panel protects motors and controls from moisture
- Door safety switches prevents operation if door is open
- Stainless steel drain valves and poppets, foot activated
- Kit 55, included prv, shock arrestor and pressure gauge in final rinse line
- Bell-type stainless steel skimmer acts as overflow and removes fats and oils from the wash tank
From The Manufacturer
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
