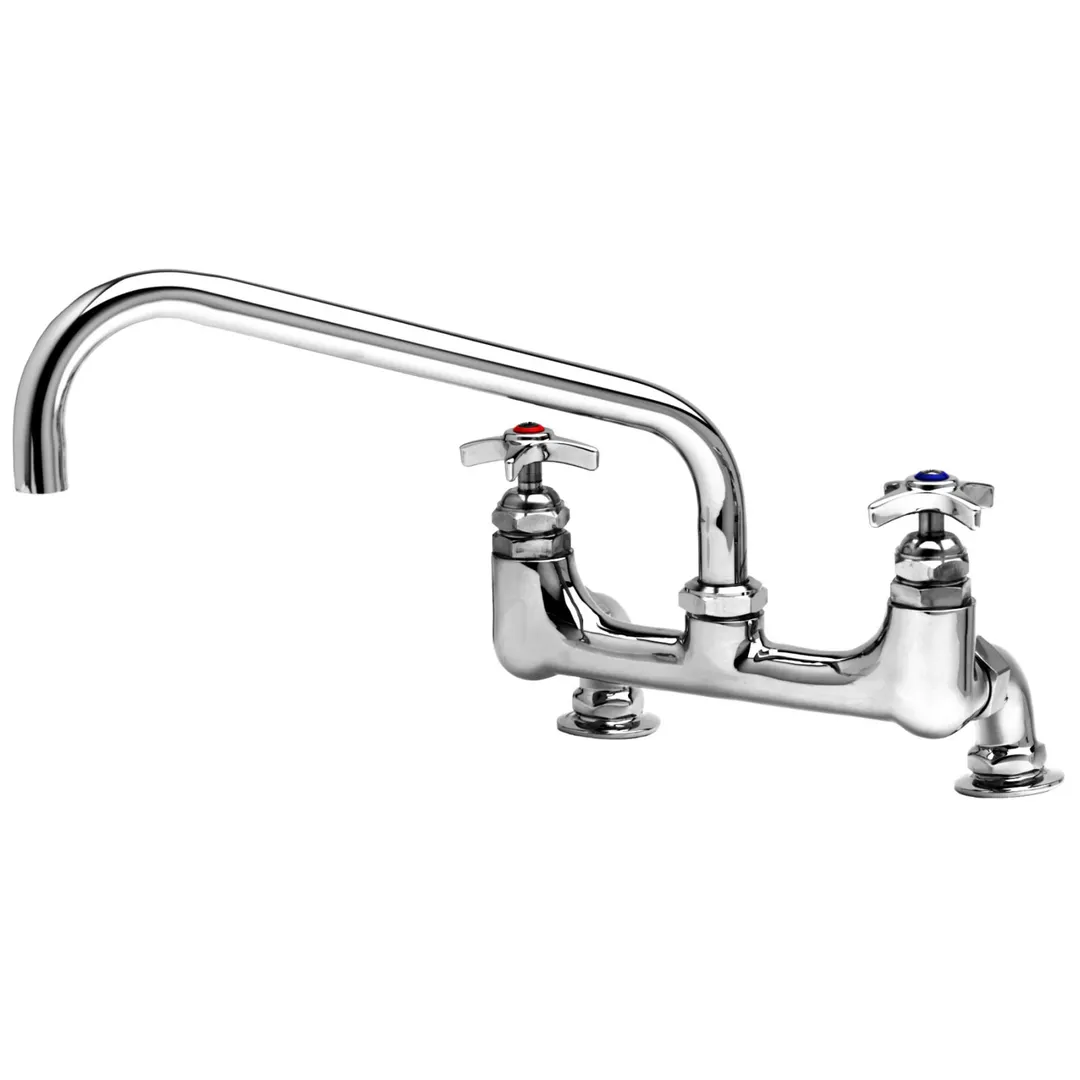

T&S Brass B-0293-01 Big-Flo Mixing Faucet
General Info
The B-0293-01, 8" deck mount large flow mixing faucet with polished chrome plated brass body, 12" swing nozzle with plain end outlet, compression cartridges, 4-arm handles, 3/4" NPT female inlets and 3/4" NPT supply nipples.
T&S Brass B-0293-01 Features
- 8" deck mount Big-Flo mixing faucet with polished chrome plated brass body
- 12” Big-Flo plain end swing nozzle
- Lock washer provided for rigid application
- Big-Flo compression cartridges
- 4-arm handles w/ color coded indexes
- 3/4" NPT female inlets w/ 2" flanges
- 3/4" NPT suppy nipples
- Material: Polished chrome plated brass body, chrome plated tubular spout and chrome plated metal handles
T&S Brass B-0293-01 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 44.27 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Big-Flo Mixing Faucet, 8" deck mount, 12" swing nozzle, 00YY inlets with supply nipples, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
