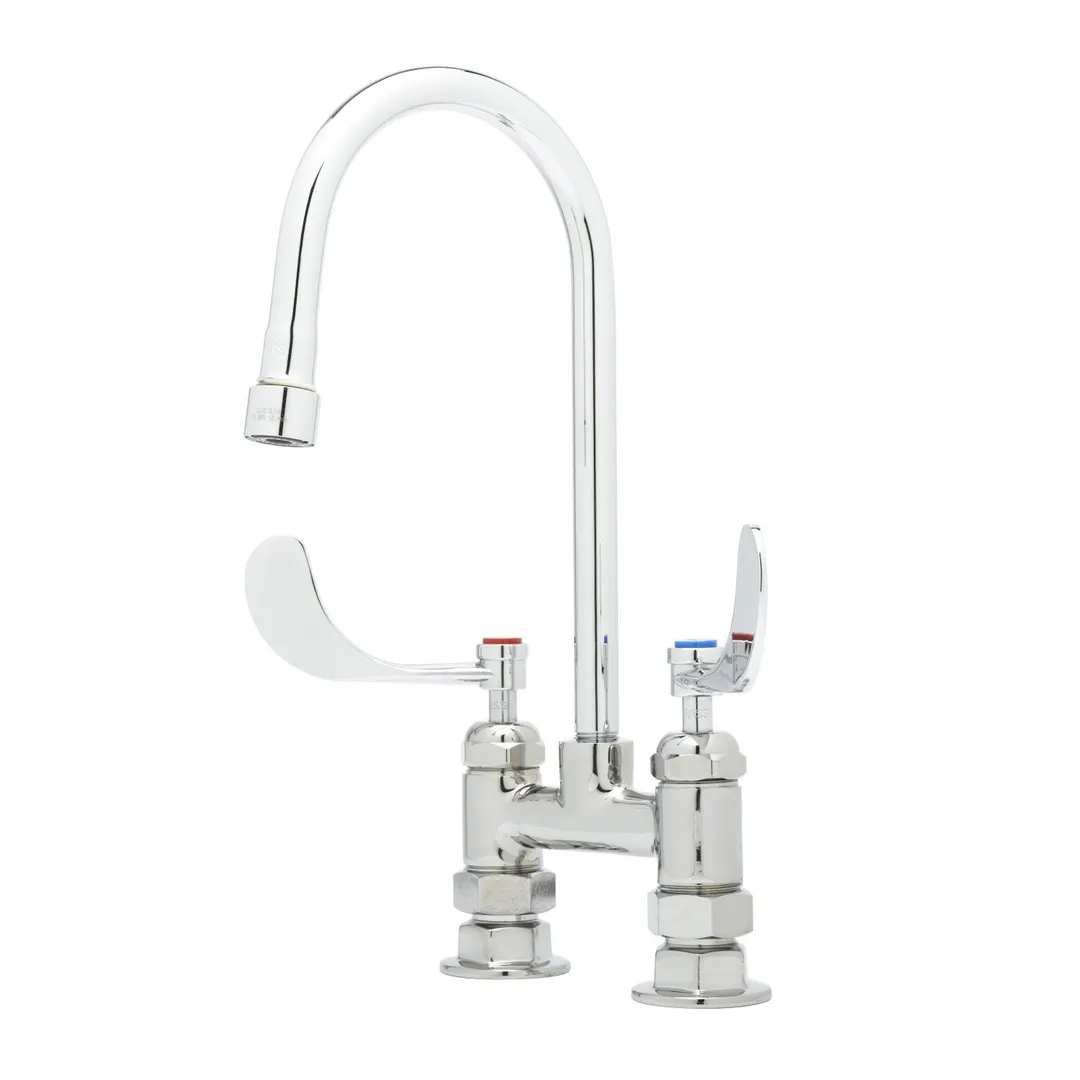

T&S Brass B-0328 Double Pantry Faucet
General Info
The B-0328, 4" deck mount mixing faucet with polished chrome plated brass body, 5 3/4" swivel/rigid gooseneck with 2.2 GPM aerator outlet, compression cartridges with spring checks, 4" wrist action handles and 1/2" NPT female inlets.
T&S Brass B-0328 Features
- 4” deck mount mixing faucet with polished chrome plated brass body
- 5 3/4” swivel/rigid gooseneck
- Includes lock washer to convert to rigid
- 2.2 GPM aerator, Series 1 (B-0199-01)
- Quarter-turn Eterna compression cartridges w/ spring checks to prevent cross flow of water
- 4" wrist action handles w/ color coded indexes
- 1/2” NPT male eccentric inlets w/ Ø 2” flanges
- Adjustable centers from 3 3/4” to 4 1/4”
- Material: Polished chrome plated brass body & tubular spout and chrome plated metal handles
T&S Brass B-0328 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Other Details : See spec. sheet
From The Manufacturer
Bar Faucet, deck mount, 4" c/c, with 2.2 GPM aerator, quarter-turn Eterna cartridges, lever handles, low lead, ADA Compliant
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
