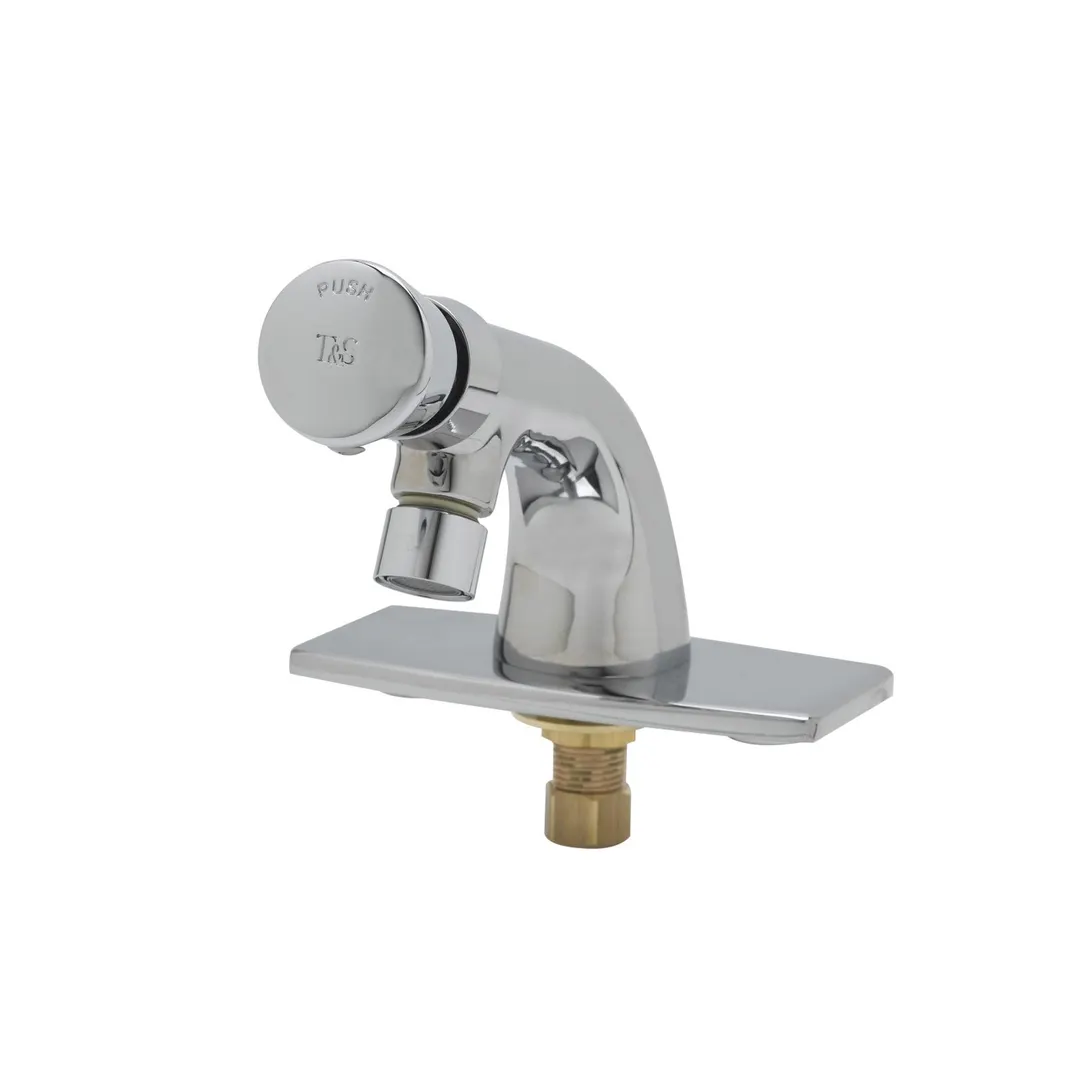

T&S Brass B-0805-VR Slow Self-Closing Metering Faucet
General Info
The B-0805-VR, Single hole, single temperature deck mount faucet with polished chrome plated brass body, 2.2 GPM vandal resistant aerator, metering cartridge, push button cap, 1/2" NPSM male inlet and 6" deck plate.
T&S Brass B-0805-VR Features
- Single hole, single temperature deck mount faucet w/ polished chrome plated brass body
- 2.2 GPM aerator, Series 2 (B-0199-02)
- Metering cartridge
- Adustable metering cycle, 10 to 30 seconds
- Blank push button cap w/ vandal resistant screw
- 1/2” NPSM male inlet
- 6” polished chrome plated deck plate with studs on 4” centers
- Material: Polished chrome plated brass body & deck plate and chrome plated metal push button cap
T&S Brass B-0805-VR Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Water Consumption :
- @ 10 sec = .37 gal
- @ 15 sec = .55 gal
- Other Details : See spec. sheet
From The Manufacturer
Slow Self-Closing Faucet, heavy duty, push button, 1/2" NPS threaded shank, 1/2" O.D. slip inlet, approximately 5-1/2"H, center of inlet to aerator outlet is 3-3/4", outlet 2" above deck, specify H or C or blank, vandal proof pins
