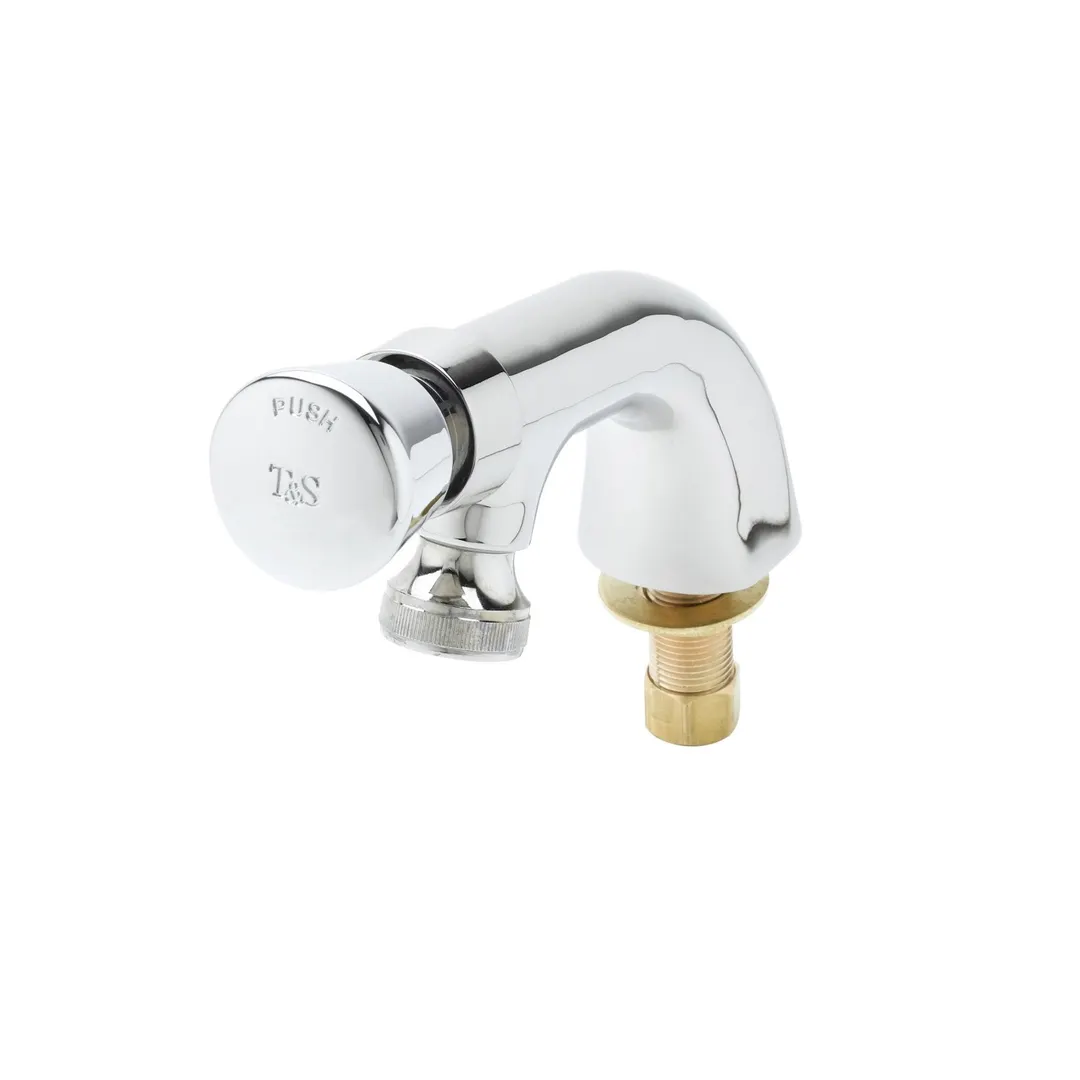

T&S Brass B-0806 Slow Self-Closing Metering Faucet
General Info
The B-0806, Single hole, single temperature deck mount faucet with polished chrome plated brass body, 2.2 gpm rosespray outlet, metering cartridge, push button cap and 1/2" NPSM male inlet.
T&S Brass B-0806 Features
- Single hole, single temperature deck mount faucet w/ polished chrome plated brass body
- 2.2 GPM aerator, Series 2 (B-0199-02)
- Metering cartridge
- Adustable metering cycle, 10 to 30 seconds
- Blank push button cap w/ vandal resistant screw
- 1/2” NPSM male inlet
- Material: Polished chrome plated brass body & deck plate and chrome plated metal push button cap
T&S Brass B-0806 Specifications
- Pressure Min/Max : 20 - 125 psi
- Temperature Min/Max : 40 F - 140 F
- Flow Rate : 2.2 GPM @ 60 psi
- Water Consumption :
- @ 10 sec = .37 gal
- @ 15 sec = .55 gal
- Other Details : See spec. sheet
From The Manufacturer
Slow Self-Closing Faucet, with rose spray, heavy duty, push button, 1/2" NPS threaded shank, 1/2" O.D. slip inlet, approximately 5-1/2"H, center of inlet to aerator outlet is 3-3/4", outlet 2" above deck, specify hot or cold or blank
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
