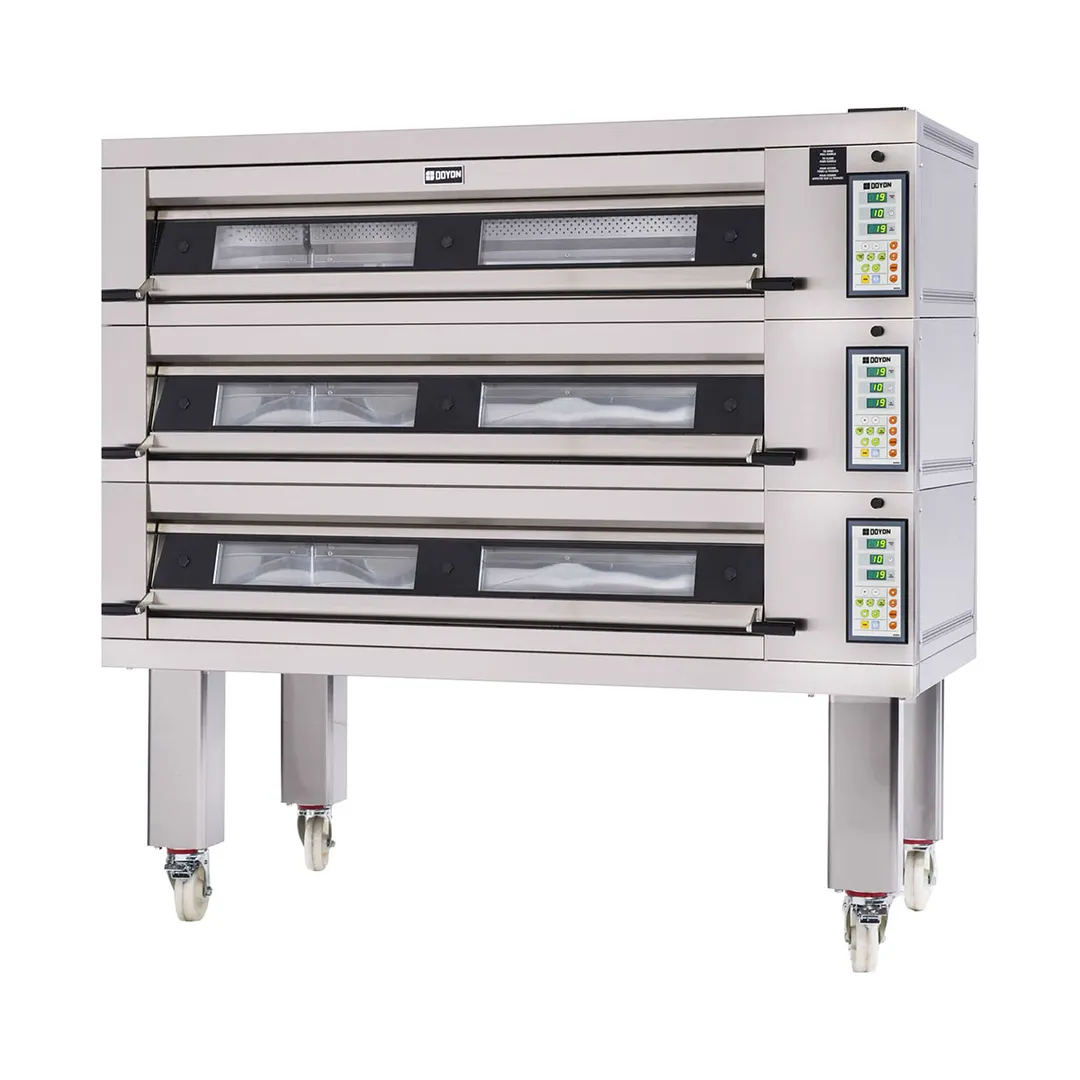

Name: Doyon 4T3 73" Electric Artisan Stone Triple-Deck Oven w/ 12-Pan Capacity, 600°F Max. Temp.
Brand: Doyon
SKU: DOY-4T-3
Price: 58093 USD
Availability: InStock

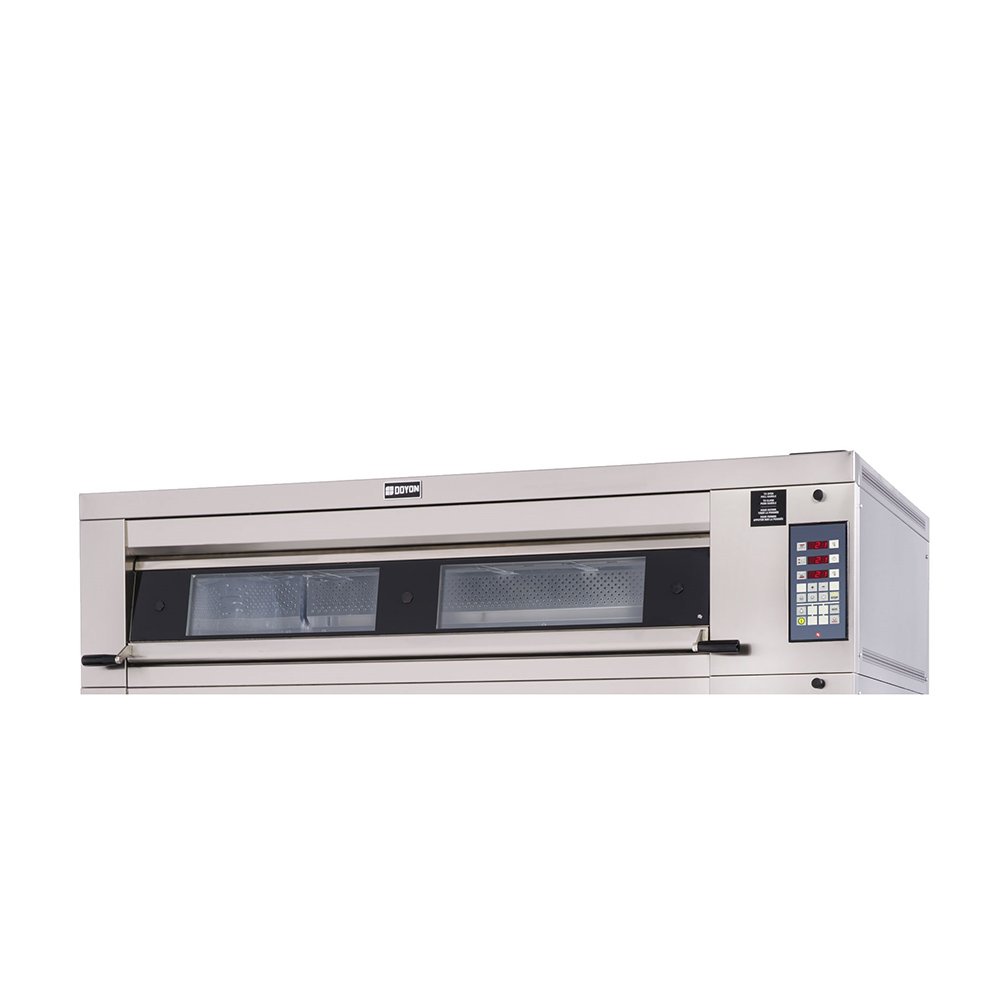

The Doyon 4T-3 Artisan Series Triple Deck Oven

Why use Doyon Deck Oven?

For the artisan baker, Doyon's Artisan Series stone deck ovens are the best choice for Old-World artisan style crusty breads with a thick crispy crust and soft interior. The ovens are modular and can be stacked to make use of vertical space and provide the capacity that you need. Select from four different chamber heights - sized for your products. They're easy to install and are the perfect choice for a variety of quality hearth breads, pastries, cookies, pies, cakes, pizzas, roasts and much more!

Doyon 4T-3 Deck Oven Features

Intuitive Programmable Control per Chamber
600°F Max Bake Temperature
1” (25 mm) Refractory Stone Deck
Stainless steel construction
Independent Shot Steam Per Deck
Single Electrical, Drain, & Water Connections
Fully Insulated & Illuminated
Retracting Doors (Saving Space When Loading & Unloading)

Doyon 4T-3 Deck Oven Option & Accessories

Water Filter (50-1530)
Standard Proofer for 1 - 2 Decks (ES4T)
Low Profile Proofer for 3 Decks (ES4TP)
Stainless Steel Deck
Non-Functional Eyebrow Canopy (EH4T)
Modular Shipping
Loaf Loader (LL4T)
Single Phase Electrical
380-415V electrical configuration

Doyon 4T-3 Deck Oven Specification

Artisanal Stone Deck Oven, Electric, 1 Chamber, Programmable Control per Chamber, Individual Shot Steam per Chamber, One Piece Shipment Standard, Single Electrical Connection, Single Water & Drain Connection, Stainless Steel Construction, 1” Thick Refractory Stone, Standard with Heavy Duty Legs with Casters, Ecomode Programming—Helps Saving Energy, 5 kW (Total)

From The Manufacturer

Artisan Stone Triple Deck Oven, electric, Ecomode energy miser/governor, stone hearth bake deck, (4) pans capacity each, side load, 8" deck height std., programmable control per deck, 600°F maximum temperature, independent upper & lower deck elements, self-contained steam injection per deck, retractable doors, includes heavy duty legs & casters, ETL-Sanitation, NSF, CE, ISO

Manufacturer	Doyon
Model Number	4T3
Weight	2550 lbs
Width	73″
Depth	52.25″
Height	46.89″
Exterior Finish	stainless steel & glass
Interior Finish	stainless steel interior
Base	legs with casters
Number Of Decks	3 decks
Interior Width (side - side)	48" - 56"
Oven Type	standard
Deck Depth (front - back)	37"
Number Of Stack	(2) stacks
Power Type	electric
Interior Width (side - side)	56"
Interior Height (Per Section)	8"
