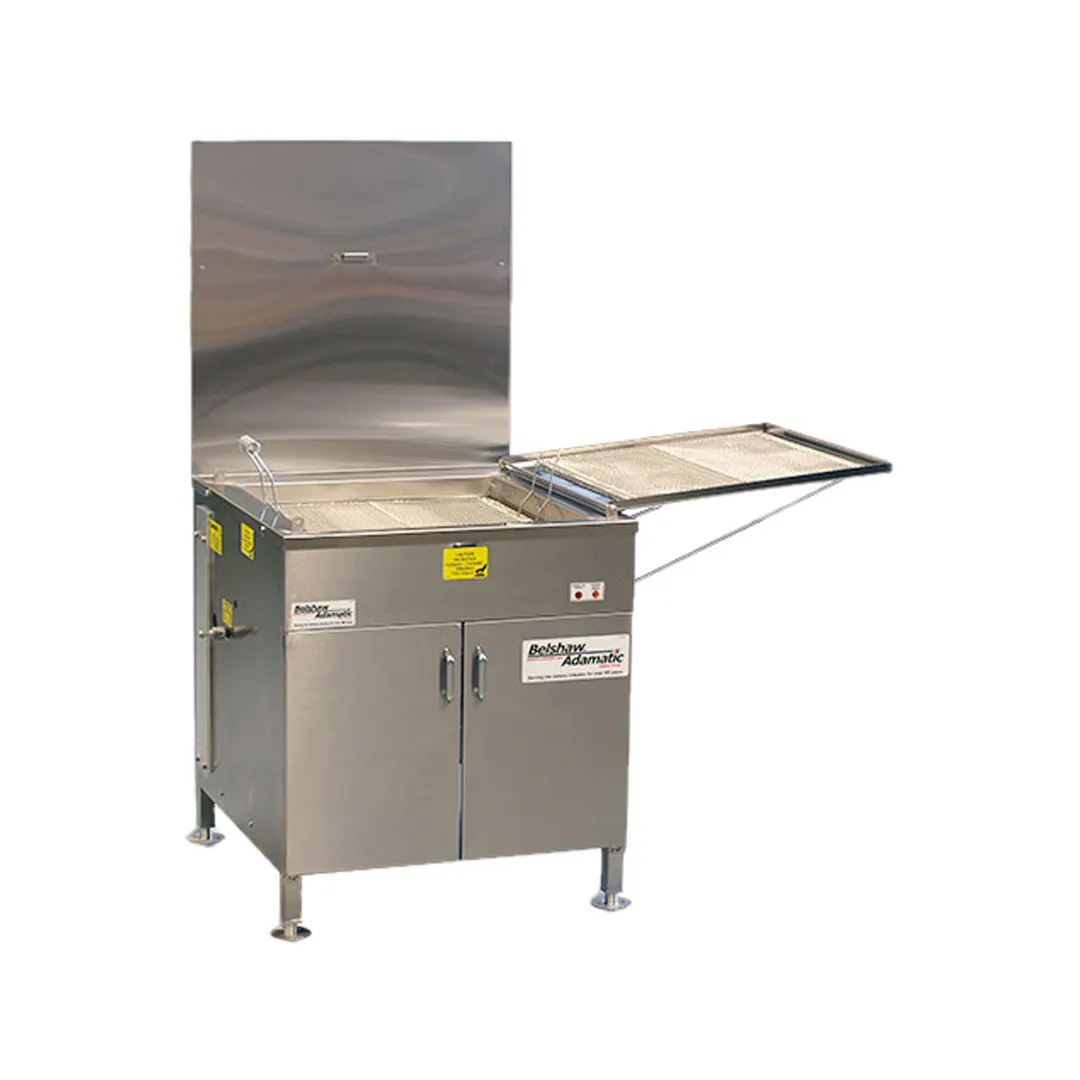

Belshaw 21263-10 (718lcg-120v-ng) Open Kettle Gas Donut Fryers Overview
Open Kettle Donut Fryers
- Belshaw open kettle gas fryers are designed to efficientlyproduce all varieties of cake and yeast raised donuts.Almost any size and shape of donut can be made in theseadaptable and dependable fryers.
- Gas efficiency is maximized for rapid heating and energy saving. The electronic controller used by CG models keeps temperature within a narrow band, and displays current temperature and set temperature.

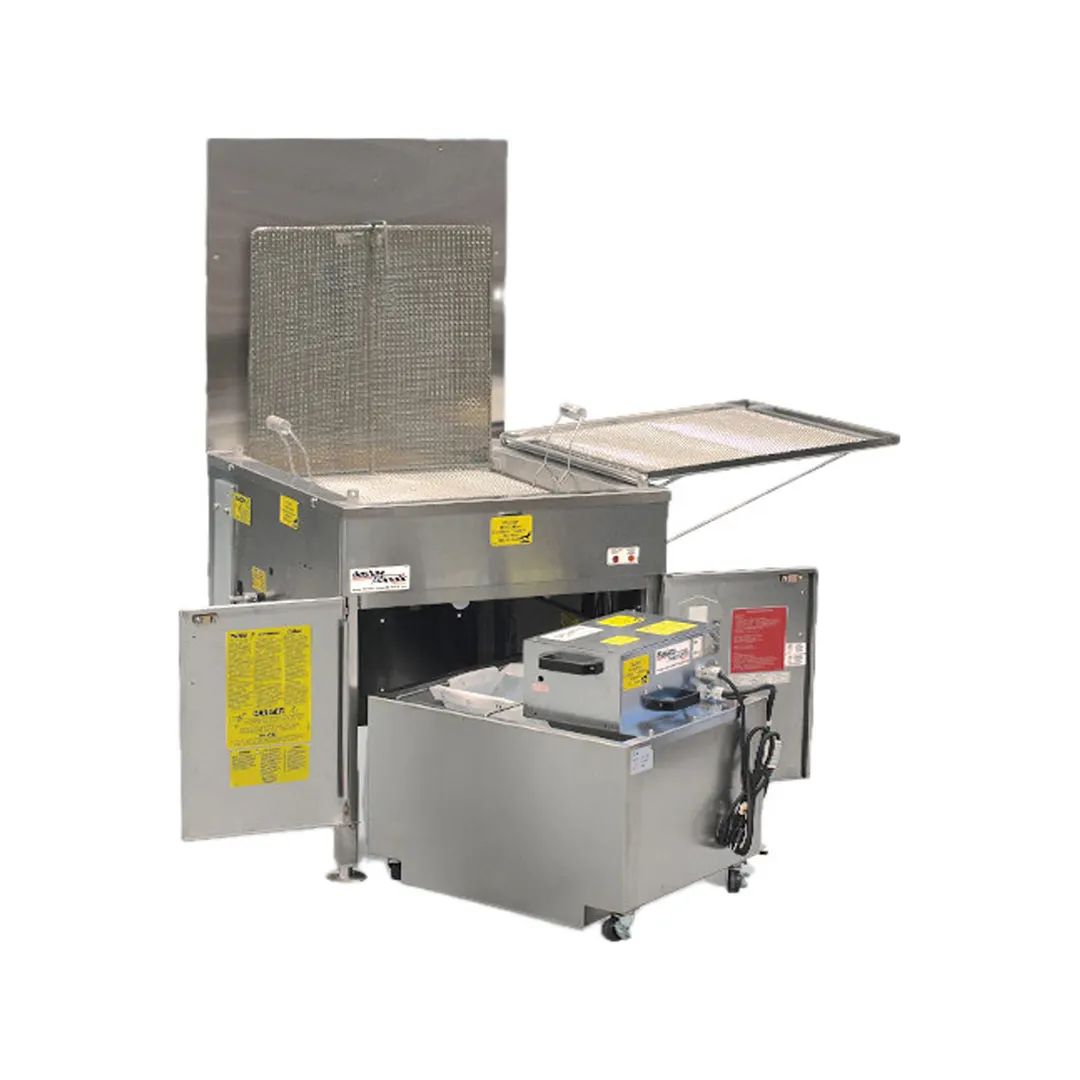

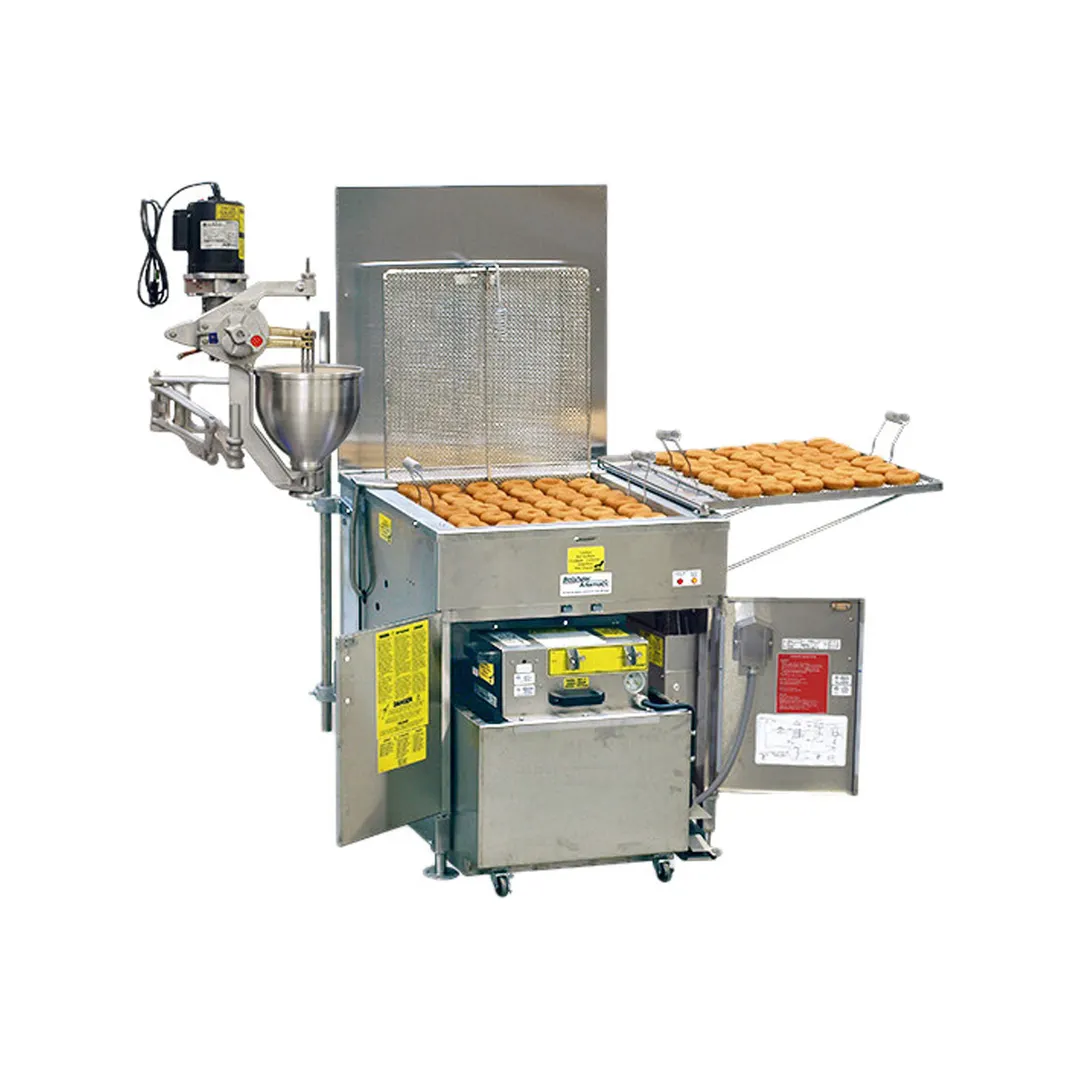

- Belshaw’s Open Kettle fryer, cake donut depositor, and filtration system are designed to work together. Easy-to-use submerger screens can be added to further improve production efficiency.
Standart Features
- Stainless steel cabinet, kettle, and drain tray, with sloping surface around fryer kettle.
- CG Models (120 V, 240 V) - Electronic ignition. - Electronic temperature controller, displays current temperature and keeps heat within narrow band (normally ±2°).
- FG models (no electric power required) - Standing pilot ignition. - Dial thermostat.
- High-temperature limit switch.
- Adjustable, bolt-down legs.
- Drain tray on right side of fryer. (Field reversible toleft side.)
- Frame reinforcement for mounting a Belshaw CakeDonut Depositor, installed at left. (Field reversibleto right side.)
- Heavy duty drain and valve, with exterior handle.
- 2 nickel plated cake donut frying screenswith handles.
- Natural Gas and Propane models are available.
- Certified to NSF-4, ANSI Z83.11a (120V Only) andCSA1.8a.2004.
From The Manufacturer
718LCG, Nat. Gas, Electronic controller, 120V/50-60Hz/1Phase
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
