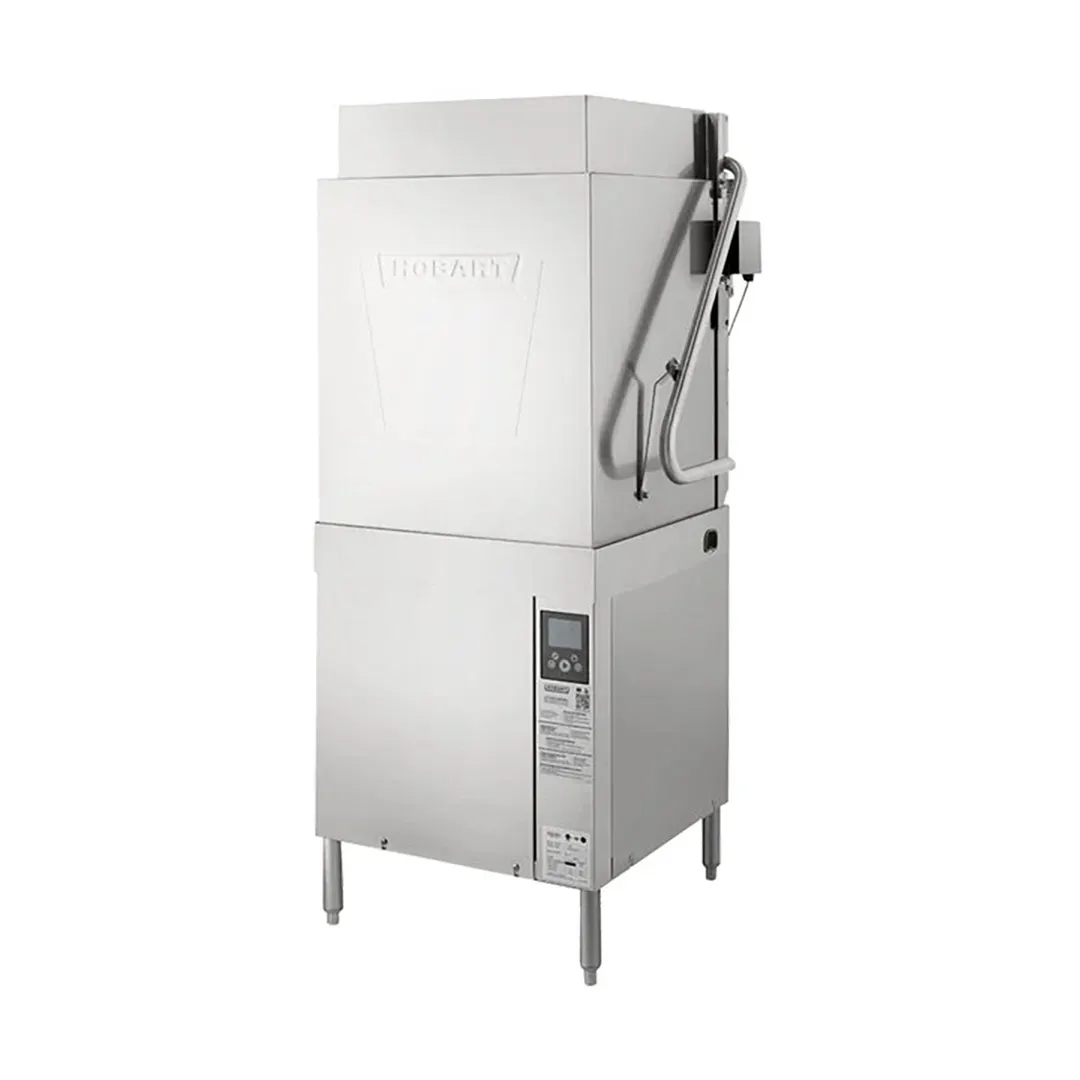

Hobart AM16VLT-BAS TALL BASE ELECTRIC High Temperature Ventless Door-Style Dishwashing Machine
Short Description
Specified unit will be a Hobart AM16 Tall Base electric high temperature ventless dishwashing machine. Features include 3-sided pillarless hood, ventless operation and energy recovery, door lock, touchscreen controls with WiFi connectivity, NSF pot and pan rating for 2-, 4- and 6-minute cycles, 27" door opening, pumped drain, auto door start with auto fill, interchangeable stainless steel rinse arms and X-shaped wash arms, delime cycle, advanced diagnostics and service connection, up to 40 racks per hour, .67 U.S. gallons per rack pumped final rinse.
Standard Features
- .67 gallons per rack pumped final rinse
- 40 racks per hour – hot water sanitizing
- Ventless energy recovery

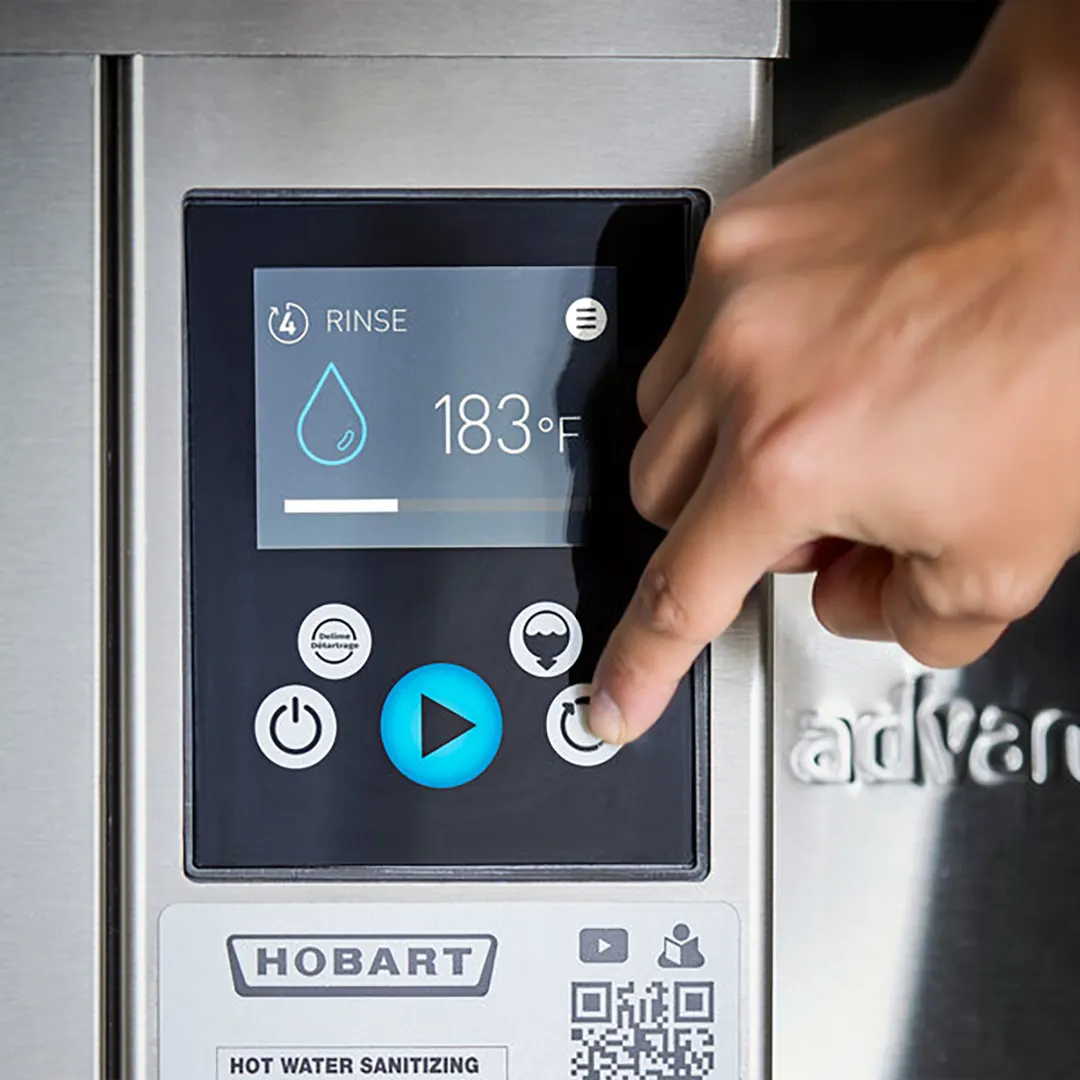

- User-friendly smart touchscreen controls
- WiFi connectivity

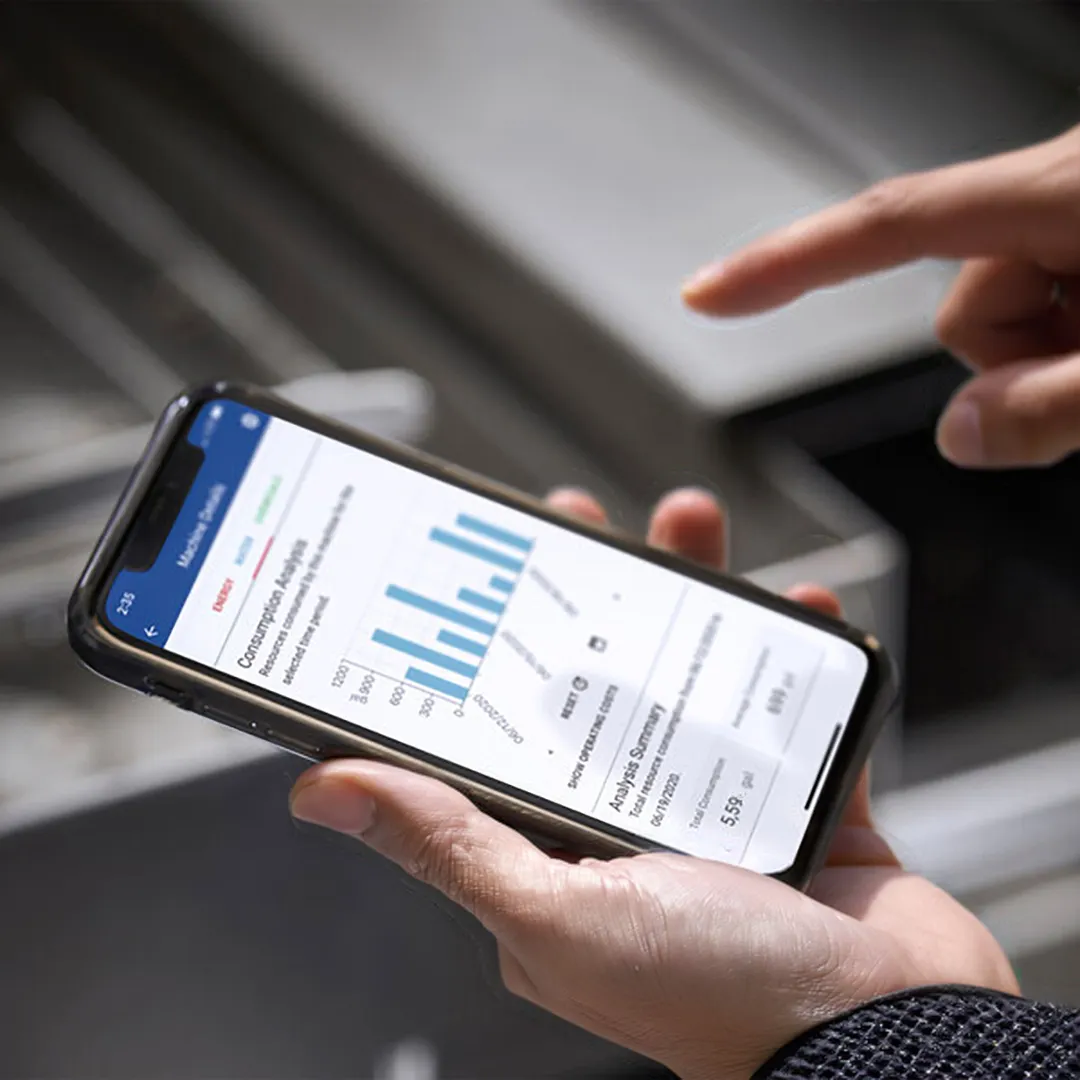

- SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
- Two stage filtration
- Pillarless opening
- 3-sided hood
- Single point electrical connection standard, field convertible to dual point connection
- 3 phase standard, field convertible to single phase
- Temperature and chemical lock outs (with Hobart equipped chemical pumps)
- Pumped drain
- Door lock
- Timed wash cycles for 1, 2, 4 or 6 minutes
- NSF pot and pan rating for 2-, 4- and 6- minute cycles
- Sense-A-Temp™ 70°F rise electric booster heater
- Self-draining, high efficiency wash pump with stainless steel impeller
- 27" door opening for 18" x 26" sheet pans or 60-quart mixing bowl
- Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
- Spring counterbalanced chamber with UHMW guides

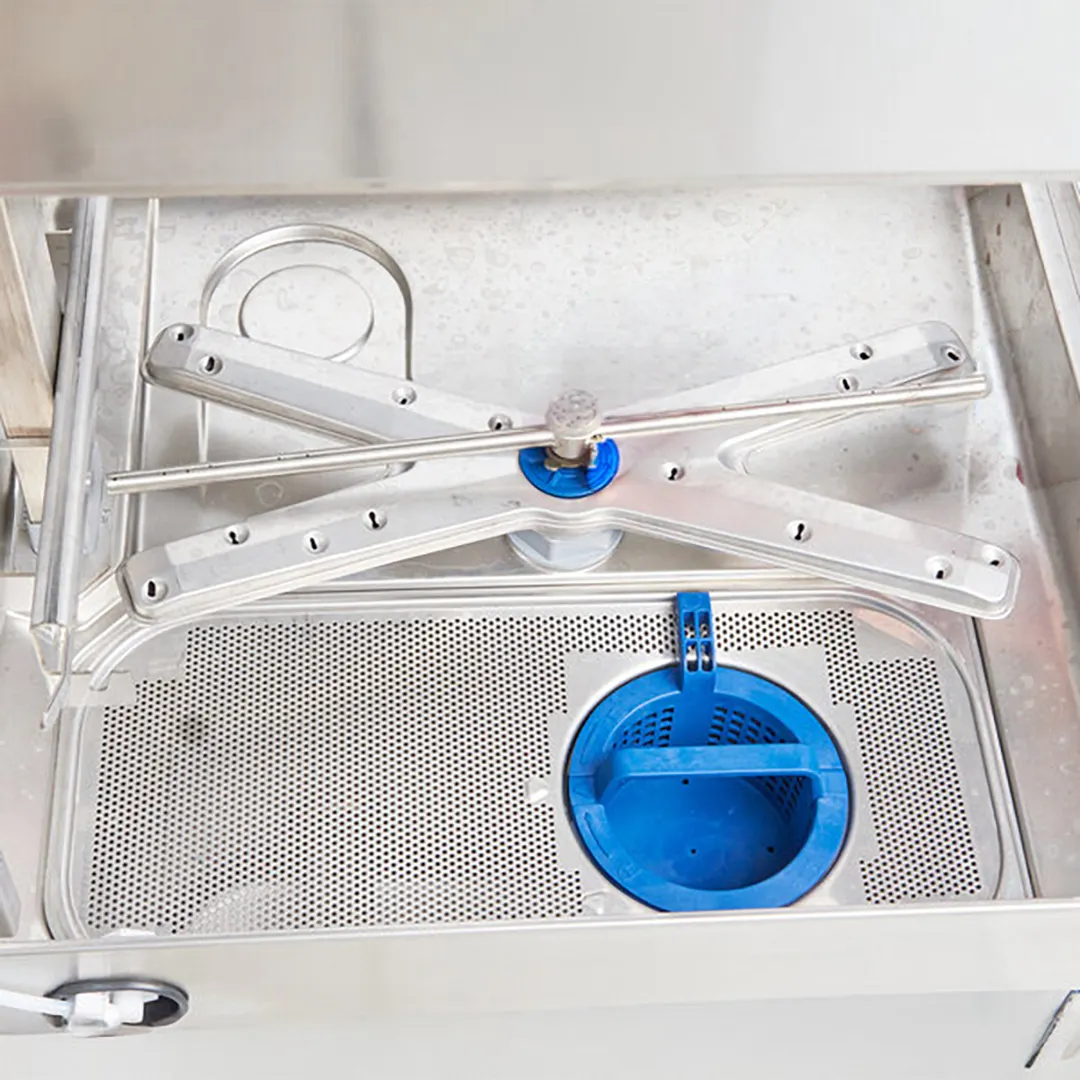

- X-shaped revolving, interchangeable upper and lower anticlogging wash arms
- Revolving, interchangeable upper and lower rinse arms
- Slanted, self-locating, one-piece scrap screen and basket system
- Automatic fill
- Door actuated start
- AutoClean
- Factory startup
- Service diagnostics
- Straight-through or corner installation
- Delime cycle with notification (field activated)
- Sheet pan rack
From The Manufacturer
Ventless Dishwashing Machine, tall chamber (27”), door type, energy recovery, high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 40 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app,Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles of a Hobart Service Office during normal business hours with appropriate notice; installation beyond 100 miles will be quoted by Service.
