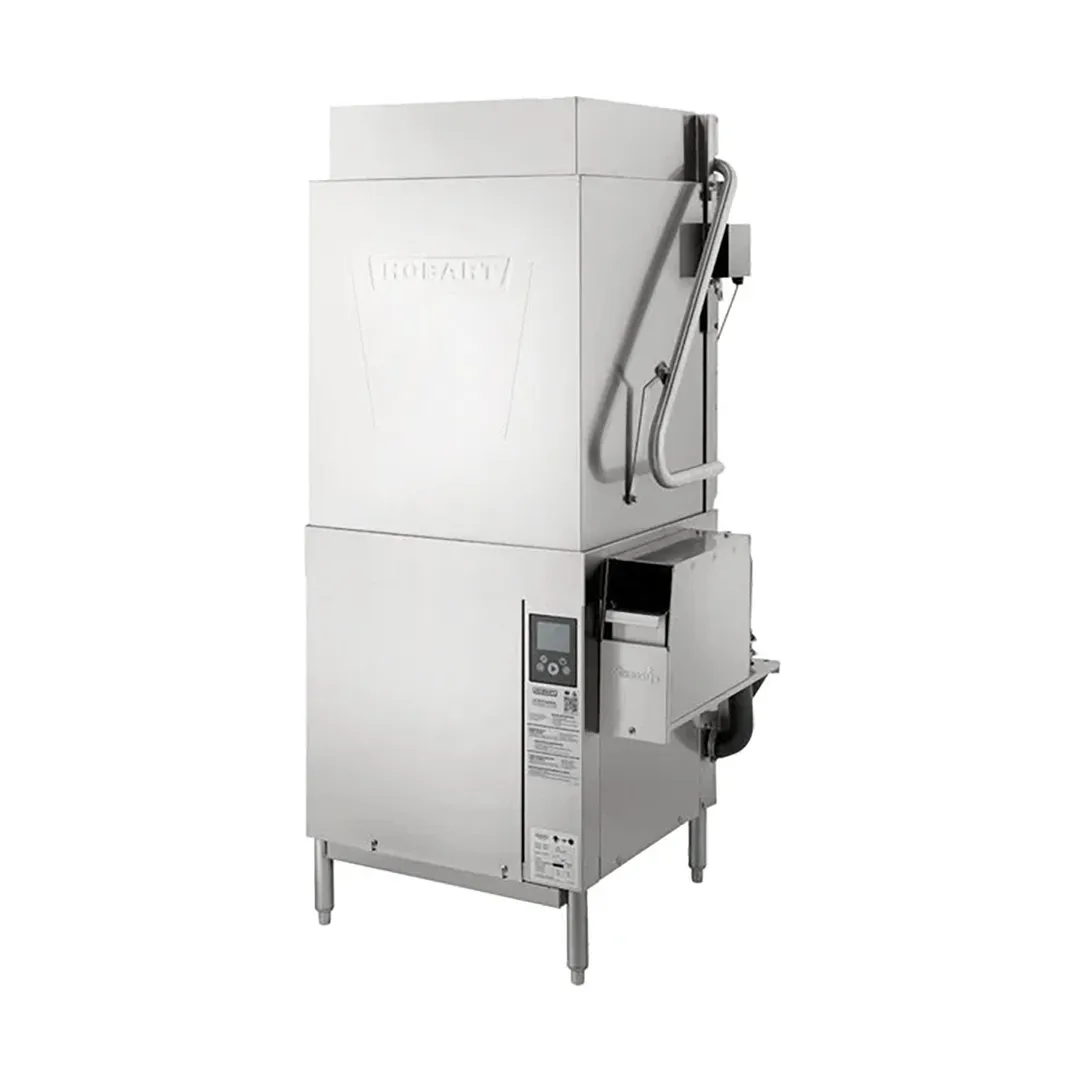

Hobart AM16VLT-ADV TALL advansys ELECTRIC High Temperature Ventless Door-Style Dishwashing Machine

Short Description

Specified unit will be a Hobart AM16 Tall Advansys™ electric high temperature ventless dishwashing machine. Features include drain water energy recovery, automatic soil removal, 3-sided hood, ventless operation and energy recovery, Complete Delime™ with Delime Notification, Auto Dispens-ing and Booster Guard™ door lock, touchscreen controls with WiFi connectivity, NSF pot and pan rating for 2-, 4- and 6-minute cycles, 27" door opening, pumped drain, auto door start with auto fill, interchangeable stainless steel rinse arms and X-shaped wash arms, advanced diagnostics and service connection, up to 36 racks per hour, .67 U.S. gallons per rack pumped final rinse.

Standard Features

.67 gallons per rack pumped final rinse
36 racks per hour – hot water sanitizing
Drain water energy recovery (DWER)
Automatic soil removal (ASR)
Complete Delime™ with Delime Notification, Auto Dispensing and Booster Guard ™
Ventless energy recovery
Pillarless opening
3-sided hood
User-friendly smart touchscreen controls
Single point electrical connection standard, field convertible to dual point connection
3 phase standard, field convertible to single phase
WiFi connectivity
SmartConnect app and cloud with machine status, temperature logs, error code reporting, and cost, consumption and usage analysis
Temperature and chemical lock outs (with Hobart equipped chemical pumps)
Pumped drain
Door lock
Timed wash cycles for 1, 2, 4 or 6 minutes
NSF pot and pan rating for 2-, 4- and 6- minute cycles
Sense-A-Temp™ 70°F rise electric booster heater
Self-draining, high efficiency wash pump with stainless steel impeller
27" door opening for 18" x 26" sheet pans or 60-quart mixing bowl
Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
Spring counterbalanced chamber with UHMW guides
X- shaped revolving, interchangeable upper and lower anticlogging wash arms
Revolving, interchangeable upper and lower rinse arms
Slanted, self-locating, one-piece scrap screen and basket system
Automatic fill
Door actuated start
AutoClean
Drain water tempering kit
Factory startup
Service diagnostics
Straight-through or corner installation
Sheet pan rack

From The Manufacturer

Ventless Dishwashing Machine, tall chamber (27") door type, energy recovery, automatic soil removal (ASR), drain water energy recovery (DWER), high temp sanitizing, 208-240/60/3 (field convertible to single phase), internal condensing system, 38 racks/hour, straight-thru or corner installation, user-friendly smart touchscreen controls, Wi-Fi connectivity with SmartConnect app,Sense-A-Temp™ booster, electric tank heat, X-shaped wash arms, scrap screen and basket, door actuated start, door lock, stainless steel tank, tank shelf, chamber, trim panels, frame & feet, pumped drain air gap, drain water tempering, cULus, NSF, ENERGY STAR®. Factory Startup - Free for installations within 100 miles of a Hobart Service Office during normal business hours with appropriate notice; installation beyond 100 miles will be quoted by Service.
