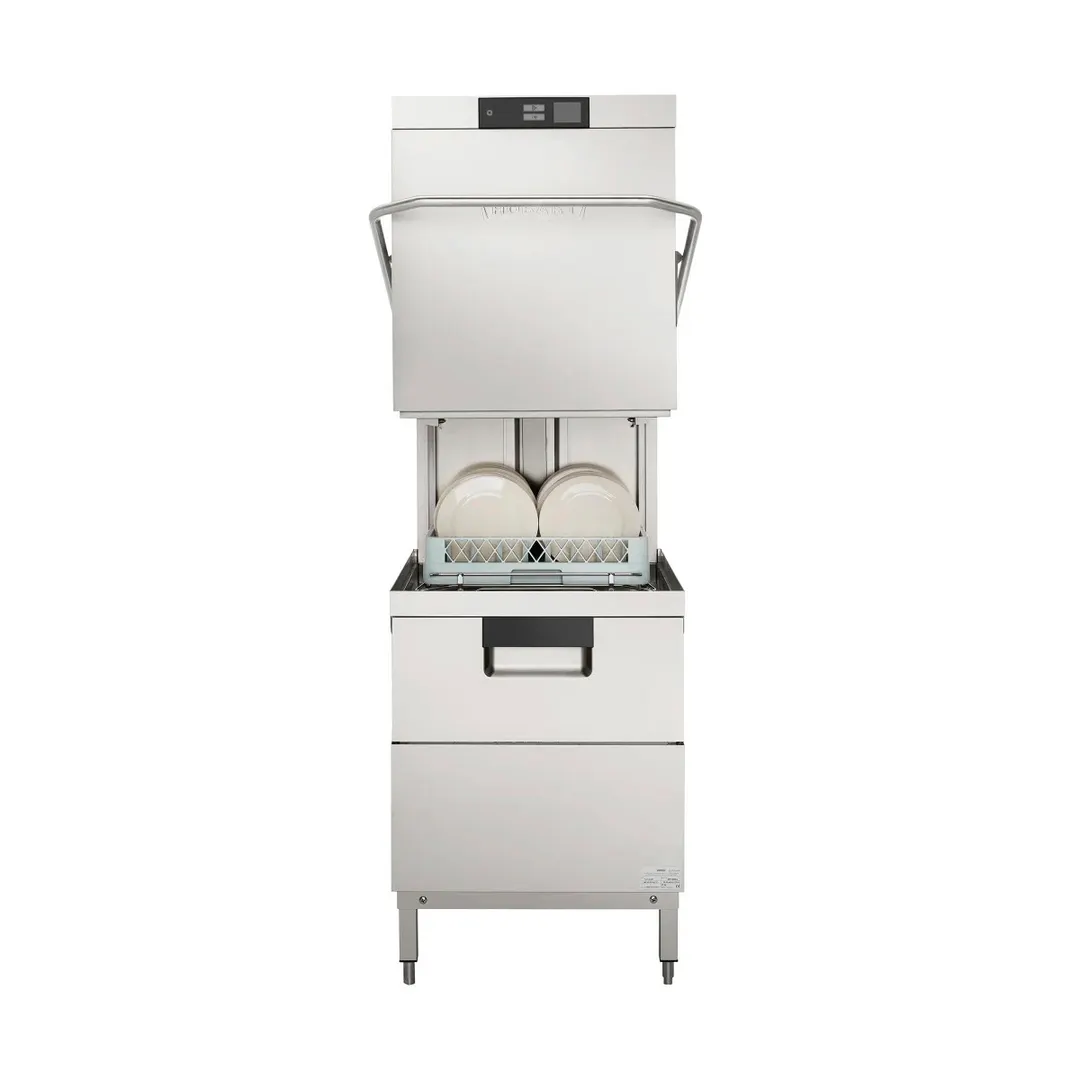

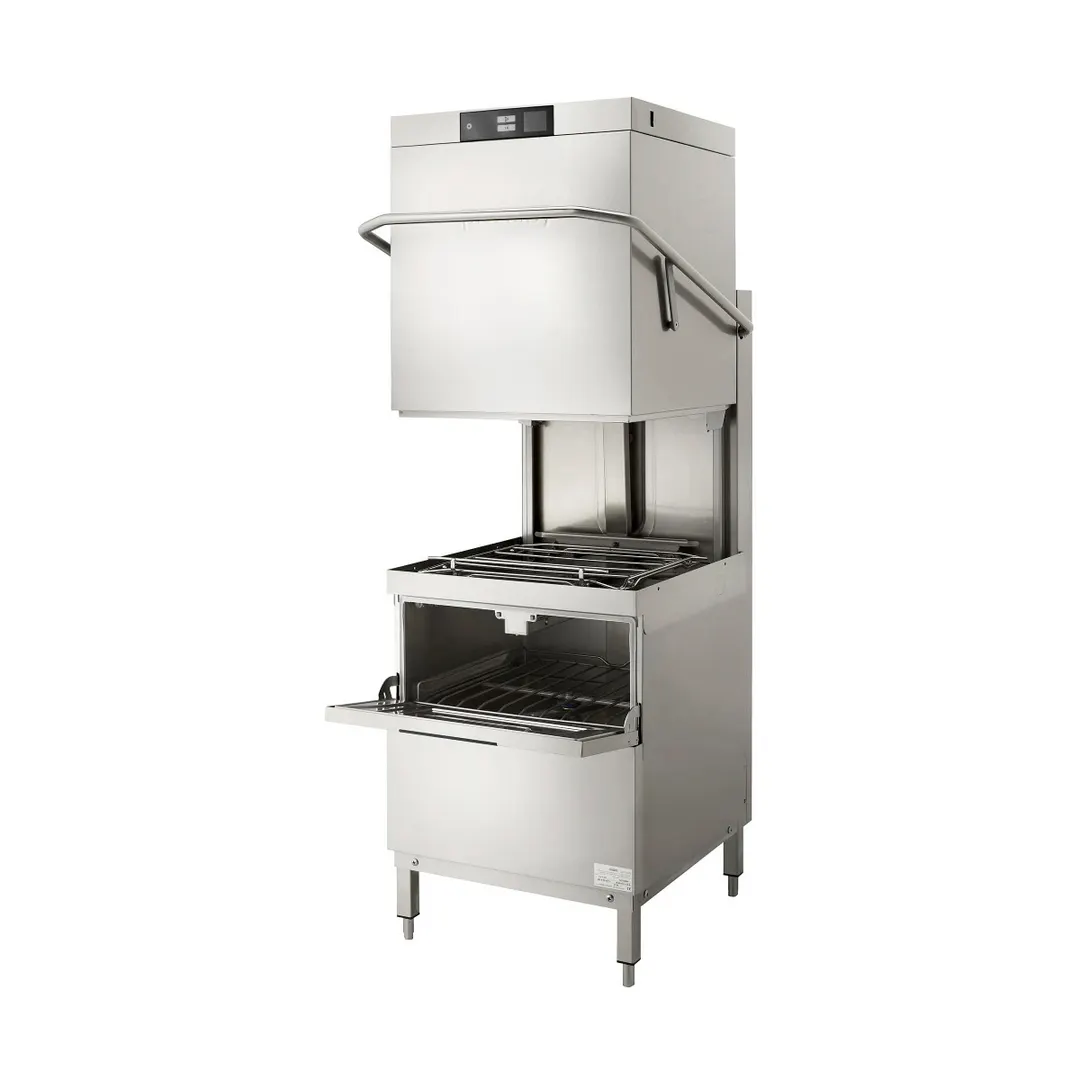

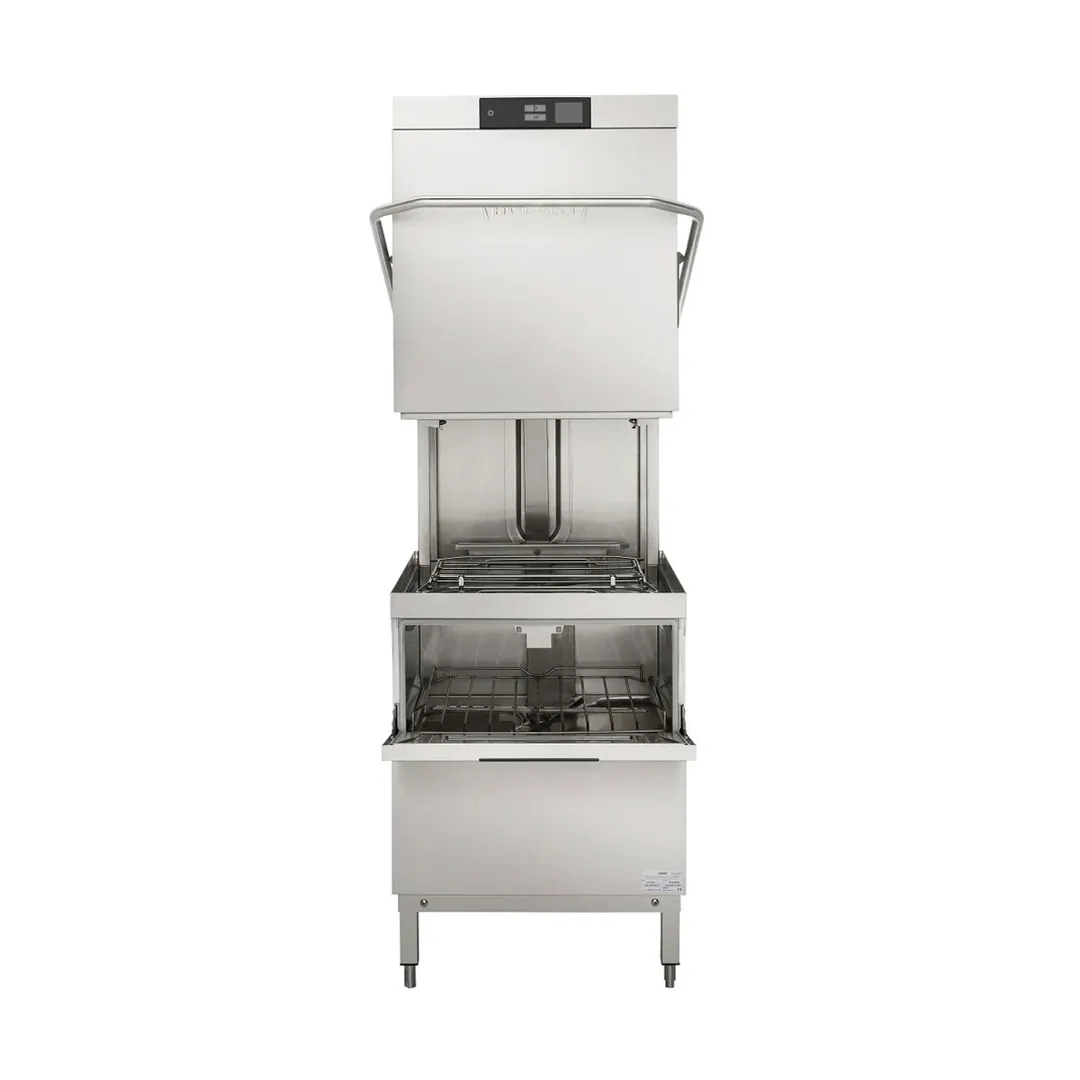

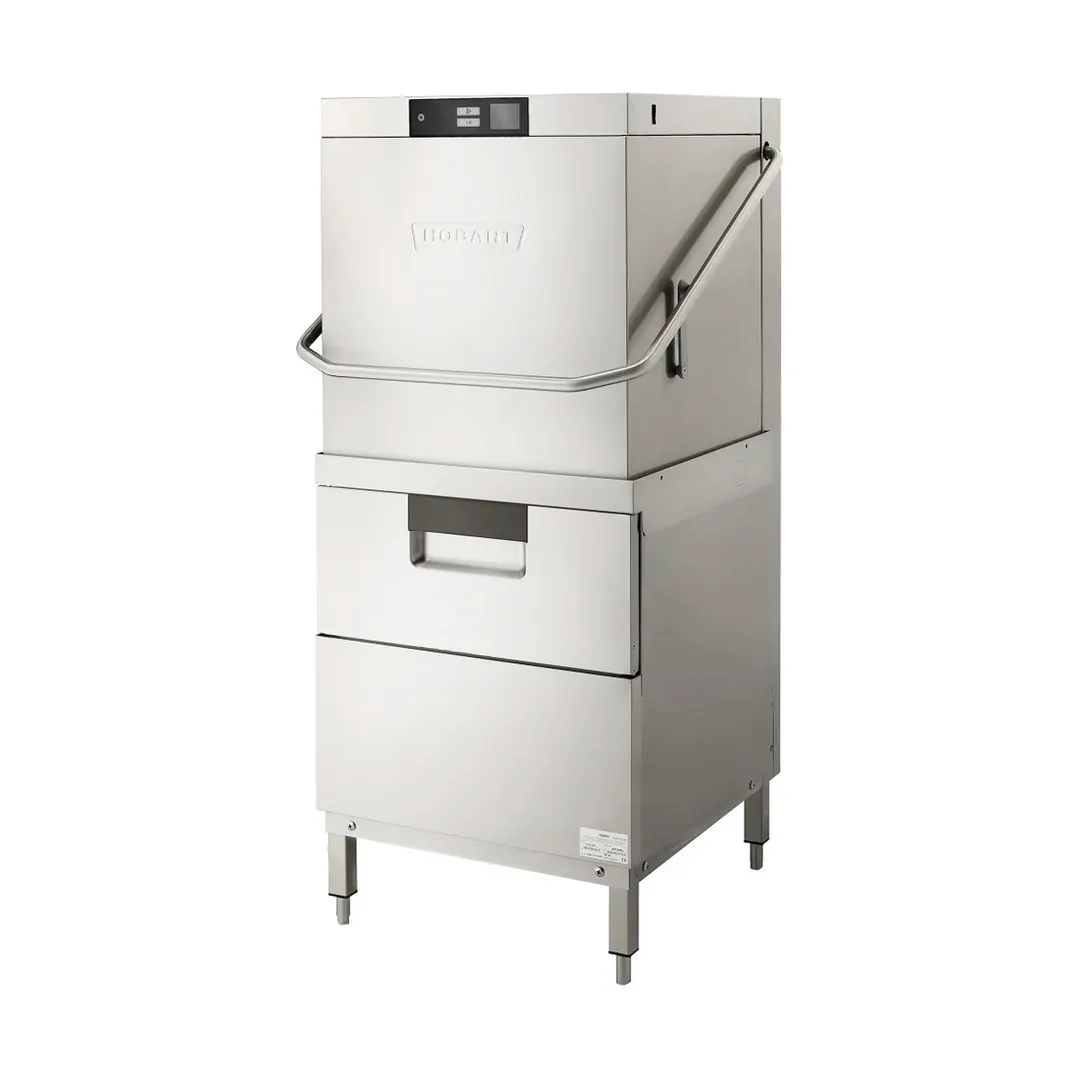

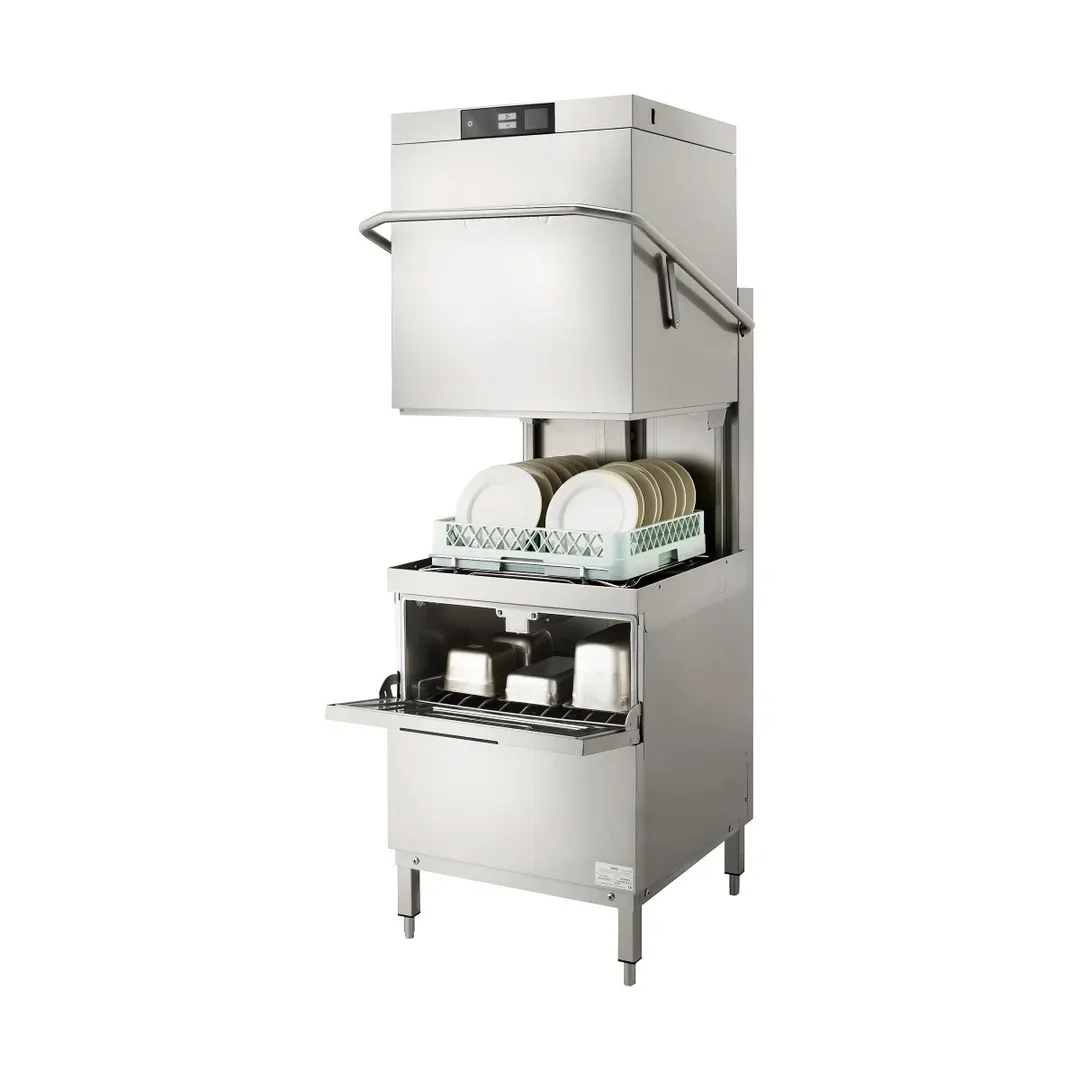

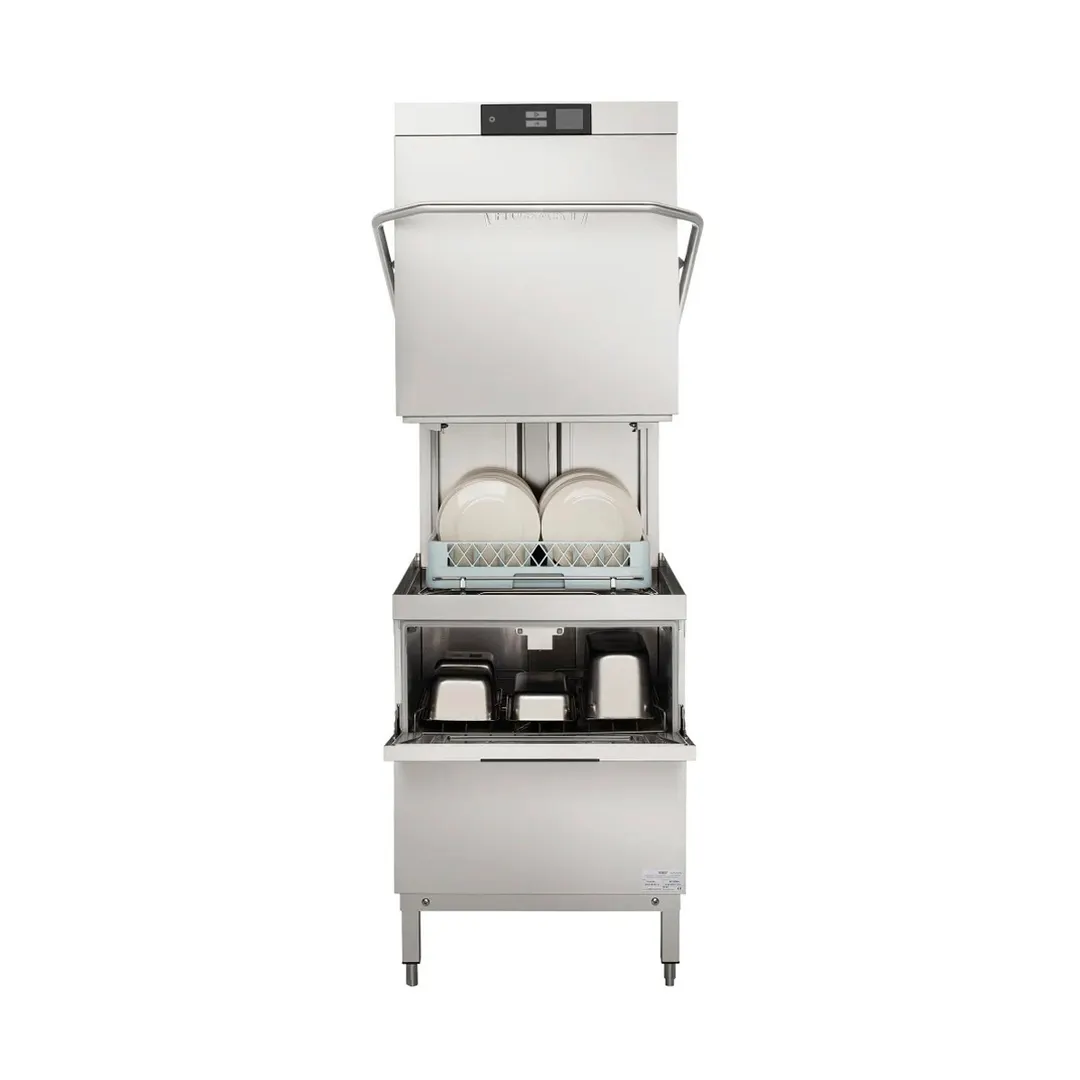

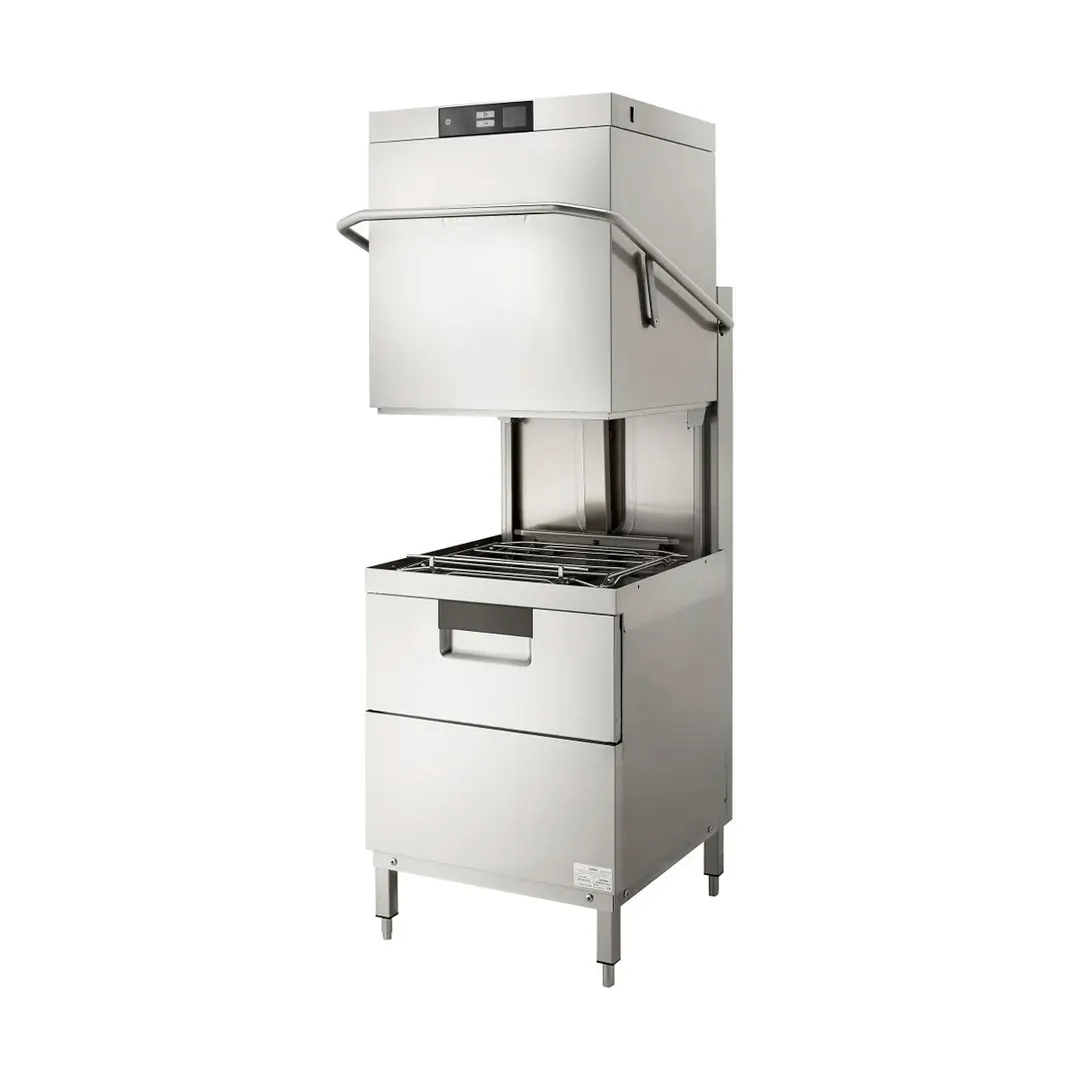

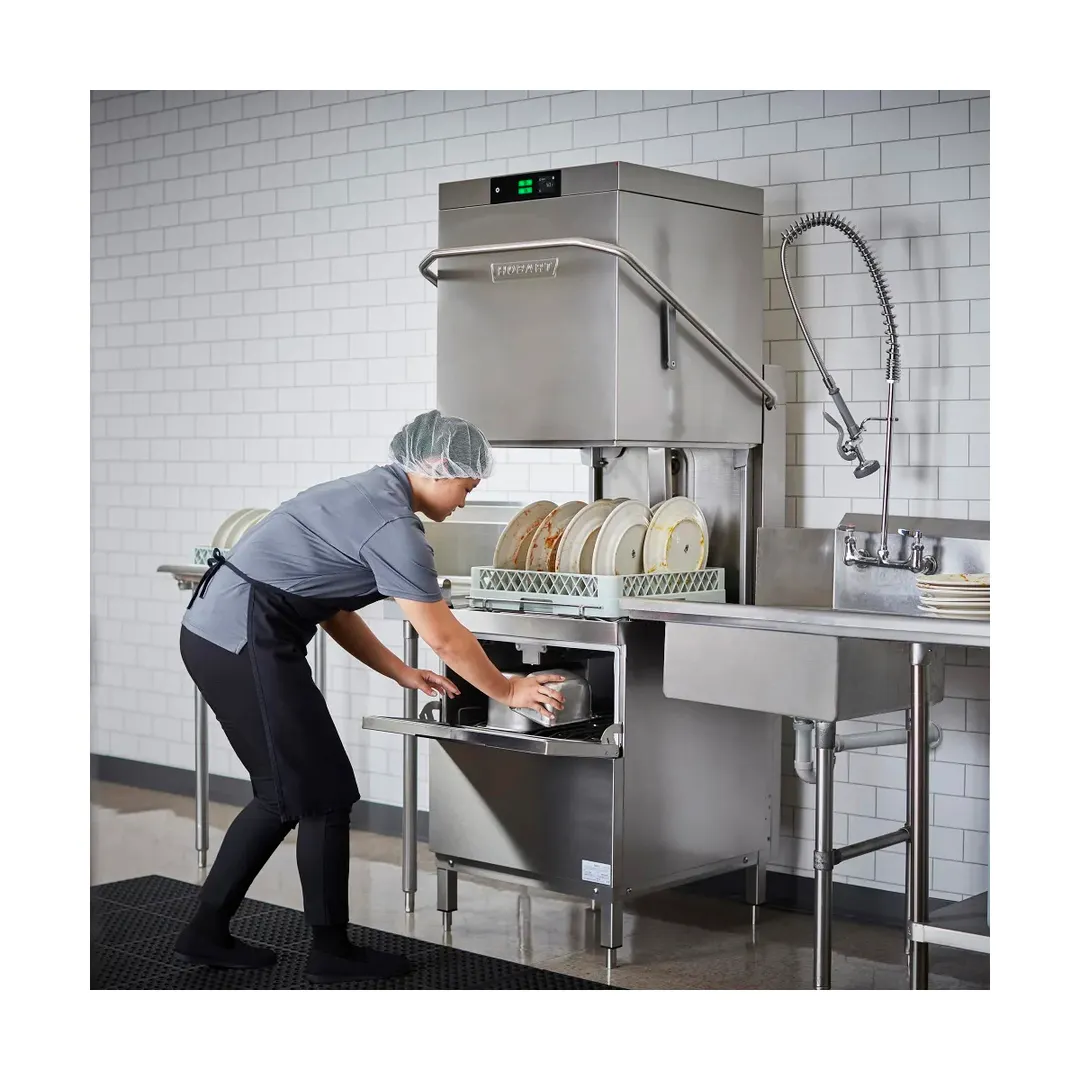

Hobart AMTL TWO LEVEL ELECTRIC High Temperature Door-Style Dishwashing Machine

Short Description

Specified unit will be a Hobart AMTL electric high temperature two-level dishwashing machine. Features include two wash chambers with separate pumped rinse systems, pillarless 5-sided insulated hood, touchscreen controls with WiFi connectivity, NSF pot and pan rating for 2-, 4- and 6-minute cycles (upper chamber), Extended/utensil wash cycles (lower chamber), 17" door opening (upper chamber), 87 ⁄8" door opening (lower chamber), pumped drain, auto door start with auto fill and AutoClean, interchangeable stainless steel wash and rinse arms (upper chamber), snap-in rinse arm (lower chamber), delime notification and cycle, advanced diagnostics and service connection, up to 80 racks per hour, .62 U.S. gallons per rack (upper chamber), .62 U.S. gallons per rack (lower chamber).

Standard Features

Independent wash chambers with separate pumped rinse systems
Upper Chamber: .62 gallons per rack pumped final rinse
Lower Chamber: .62 gallons per rack pumped final rinse
80 racks per hour – hot water sanitizing
Multiple cycle operations including a utensil cycle on the lower chamber
17" upper chamber door opening
87 ⁄8" lower chamber door opening will accept 7" plates
User-friendly smart touchscreen controls
WiFi connectivity and Hobart Smart Connect app
Two stage filtration
Pillarless opening
5-sided insulated hood
Lower insulated door
Single point electrical connection standard, field convertible to dual point connection
3 phase standard, field convertible to single phase
Temperature lockouts
Pumped drain
Timed wash cycles for 1, 2, 4 or 6 minutes (lower chamber – utensil cycle for 3 and 6 minutes)
Upper Chamber: NSF pot and pan rating for 2-, 4- and 6- minute cycles
Sense-A-Temp™ 60°F rise electric booster heater
Self-draining, high efficiency wash pump with stainless steel impeller
Stainless steel drawn tank, tank shelf, chamber, trim panels, frame and feet
Spring counterbalanced chamber with thermo-plastic rollers
Upper Chamber: Revolving, interchangeable upper and lower anti-clogging wash arms
Upper Chamber: Revolving, interchangeable upper and lower rinse arms
Lower Chamber: Snap-in revolving lower wash and rinse arm
Slanted, self-locating, one-piece scrap screen and basket system
120°F incoming water required
Automatic fill
Door actuated start
AutoClean
Vent fan control
Factory startup
USB connection for service diagnostics
Straight-through installation only
Delime cycle with notification (field activated)

From The Manufacturer

Two Level Door Type Dishwasher, upper and lower wash chambers with separate pumped rinse systems, high temp sanitizing, 208-240/60/3 (field convertible to single phase), 80 racks/hr, .62 gal/rack each chamber, straight-thru installation only, user-friendly smart touchscreen controls, Sense-A-Temp™booster, electric tank heat, auto-fill, stainless steel scrap screen with basket, door actuated start, stainless steel tank, tank shelf, chamber, trim panels, frame & feet. cULus, NSF. Factory Startup - Free for installations within 100 miles of a Hobart Service Office during normal business hours with appropriate notice; installation beyond 100 miles will be quoted by Service.
