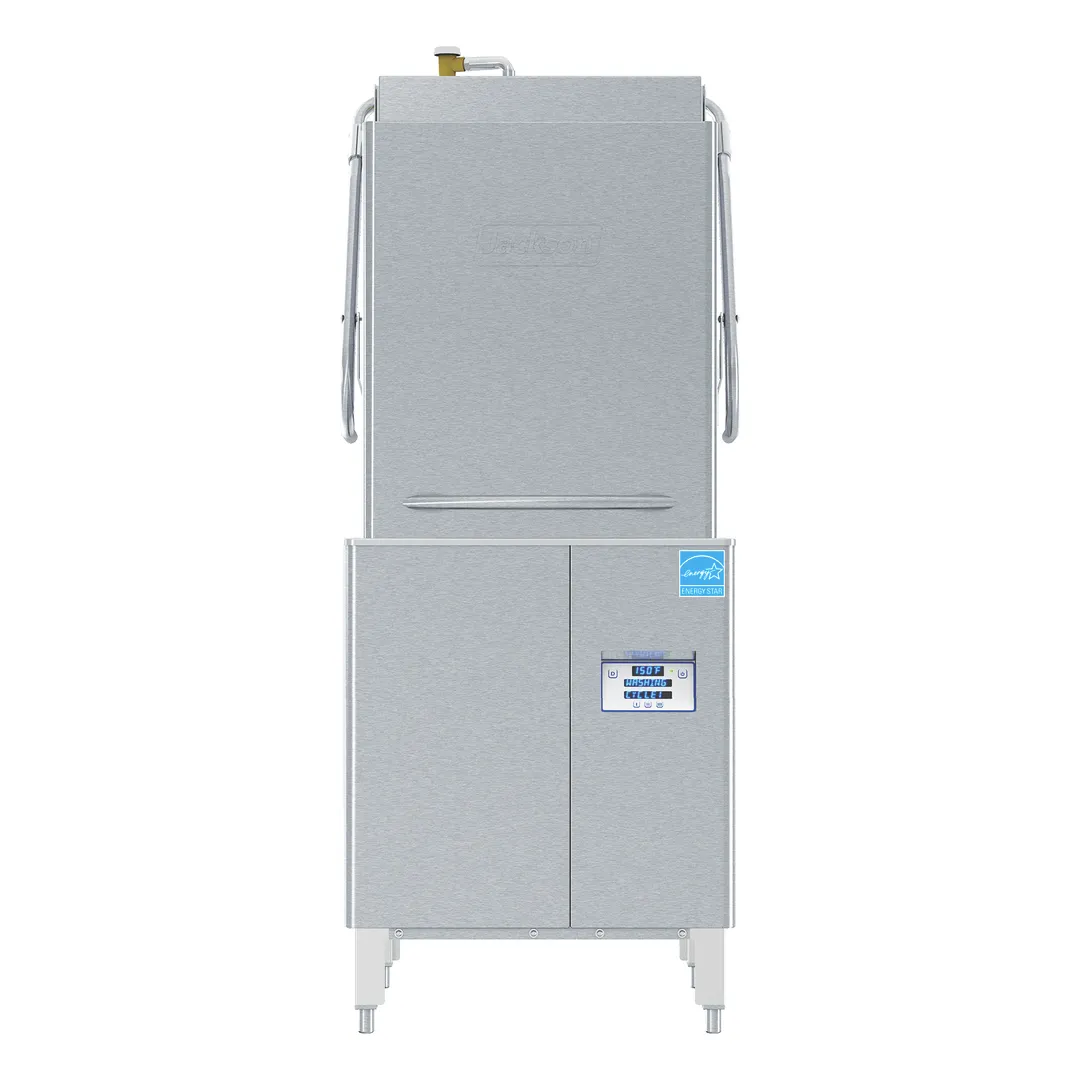

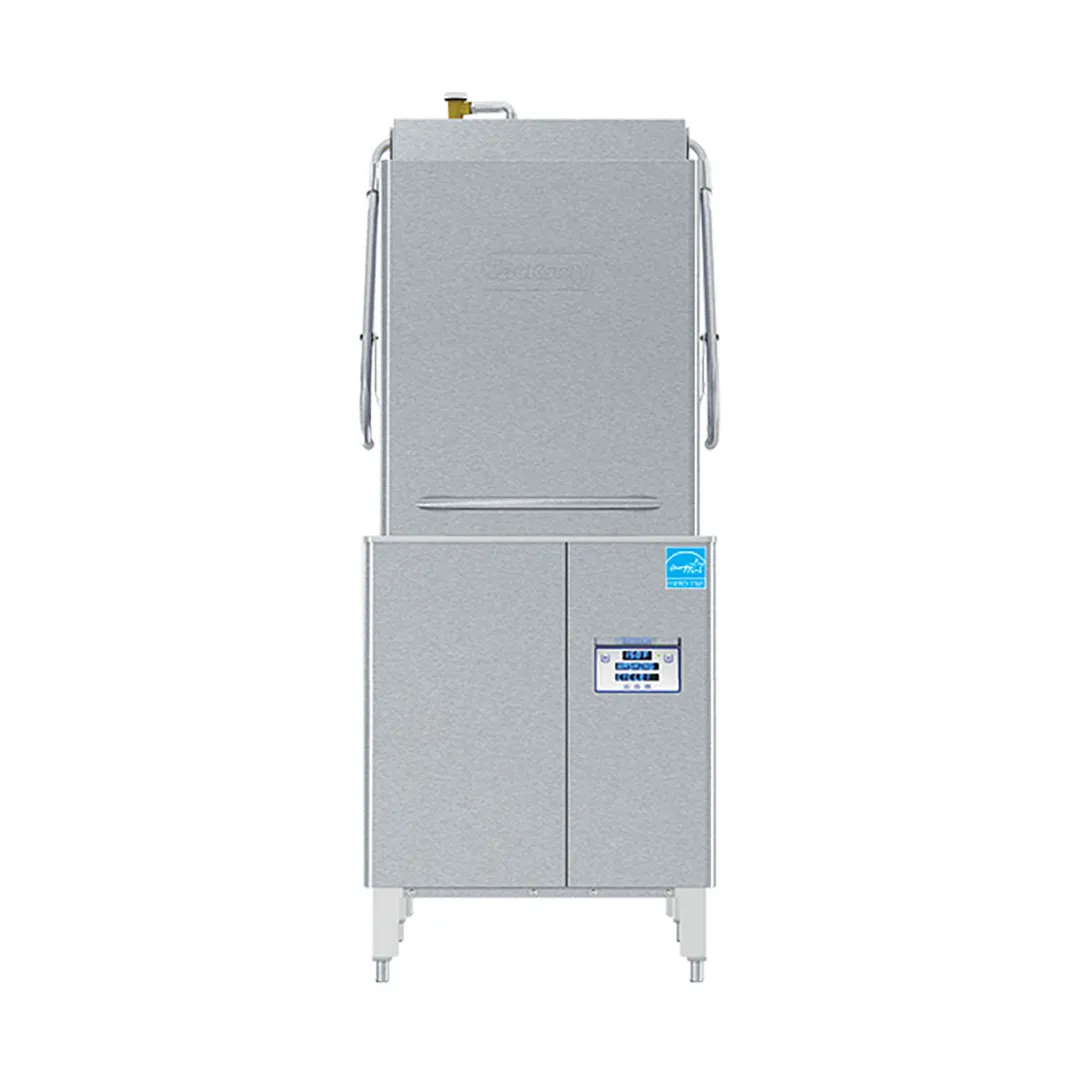

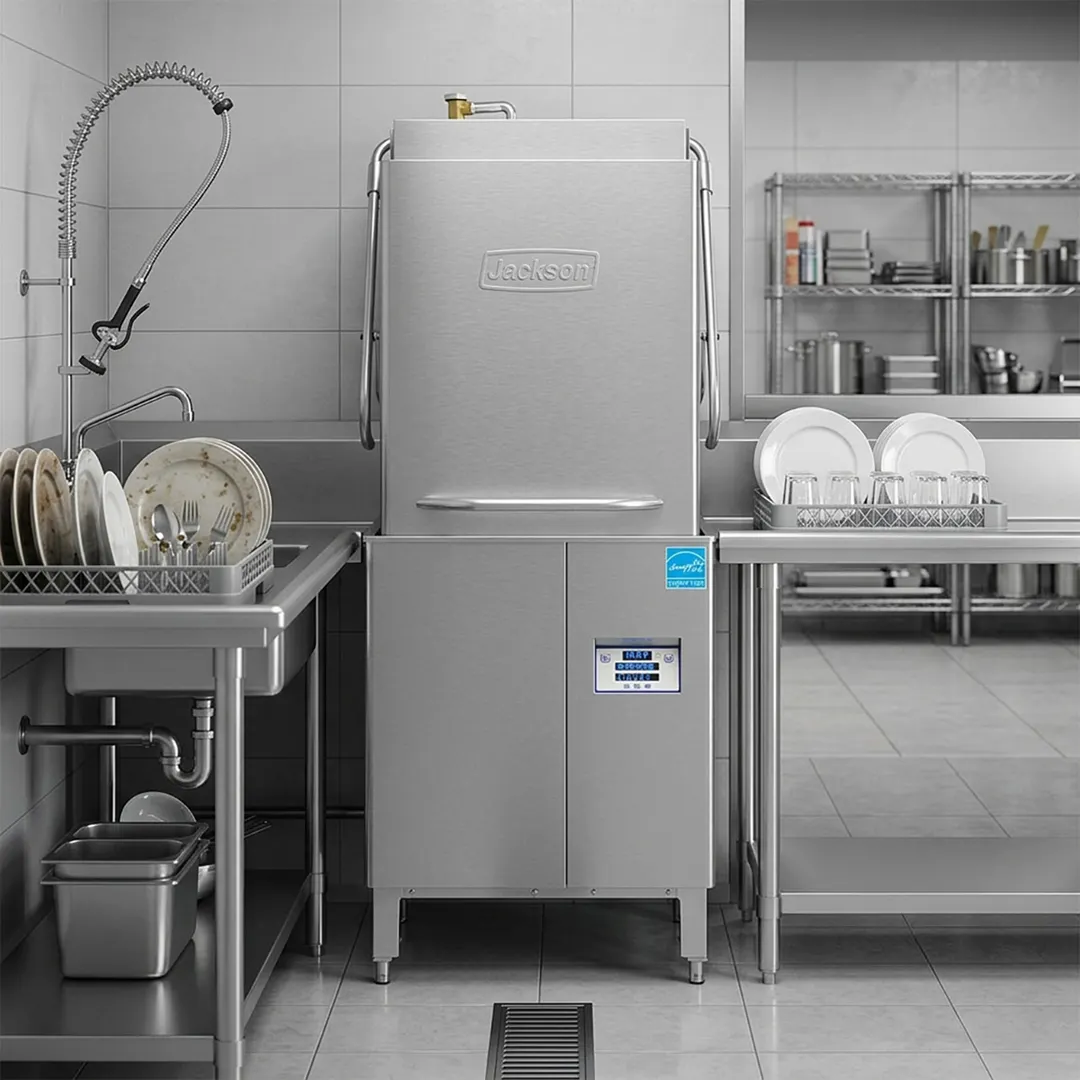

Jackson Warewashing DynaStar® HH-E Tall Chamber High Temperature Sanitizing Door-type
Description
Specified unit will be a Jackson DynaStar HH-E tall chamber, high temperature sanitizing door-type dishwasher, rated to NSF/ANSI Standard 3 by ETL Sanitation. Unit will be ENERGY STAR® certified and will be dual certified as both a dishwasher and a potwasher on all cycle settings. Unit to be rated for 62 racks per hour, 0.72 gallons per rack, and will include a built-in 40-70 °F rise booster heater with SaniSure™ final rinse system, three (3) selectable timed cycles, solid-state controls with digital LED temperature/operator display and service diagnostics. Unit will have an adjustable rinse system, Econo Rinse uses 0.72 gallons per rack; Turbo Rinse uses 0.89 gallons per rack. Other features include automatic tank fill, delime cycle, triple wash arm system, pumped final rinse, vent fan control, and 2 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Dual certified as both a dishwasher and a potwasher at all cycle settings
- Built-in 40-70 °F rise booster heater with SaniSure™ final rinse system ensures proper rinse water temperature
- Adjustable rinse system Econo uses 0.72 gallons per rack Turbo uses 0.89 gallons per rack
- Pumped rinse for consistent rinse pressure
- Automatic tank fill
- Door-actuated start
- Three (3) selectable timed cycles
- Digital LED display
- Onboard service diagnostics
- Delime cycle
- 27” (686 mm) vertical chamber clearance
- Triple wash arm system provides consistent and reliable washing performance
- Specially designed stainless steel nozzles provide superior cleaning action
- 2 HP stainless steel wash pump motor
- Vent fan control shuts vent fan off when machine is idle
- Interchangeable scrap baskets
- Single point connections for all utilities
- Field convertible from straight through to corner and vice versa (kit required)
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front and side stainless steel dress panels
- Adjustable bullet feet
- Durable stainless steel construction
