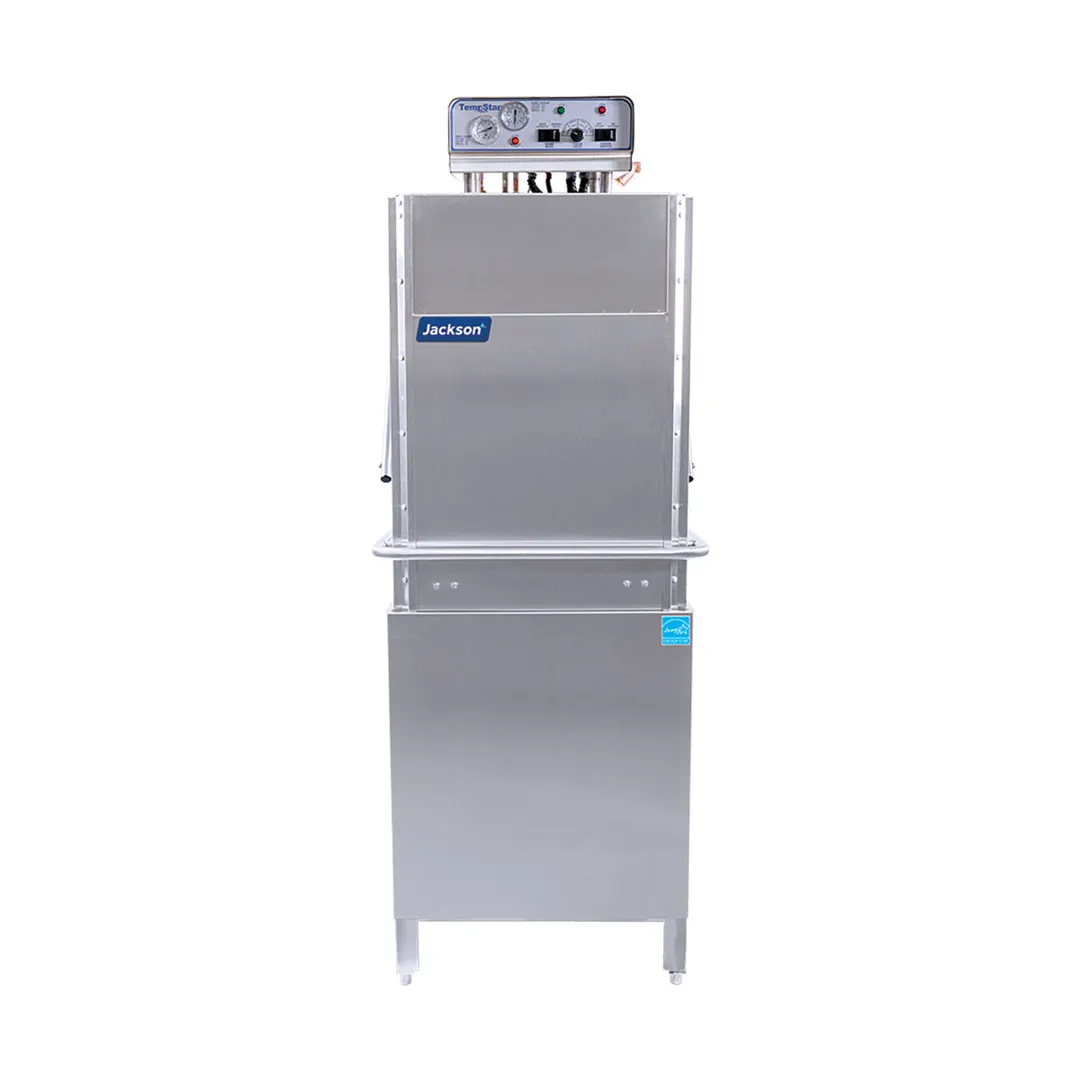

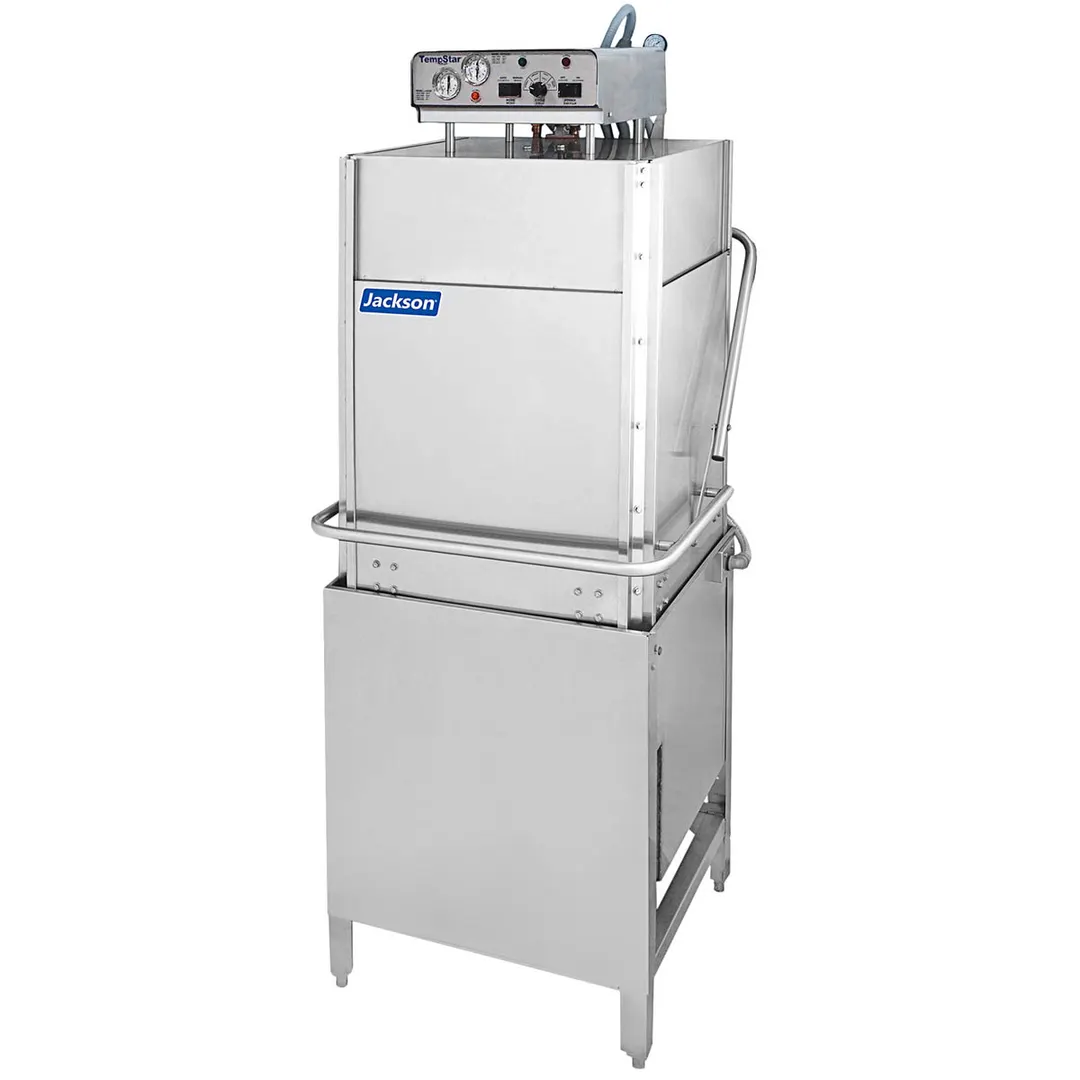

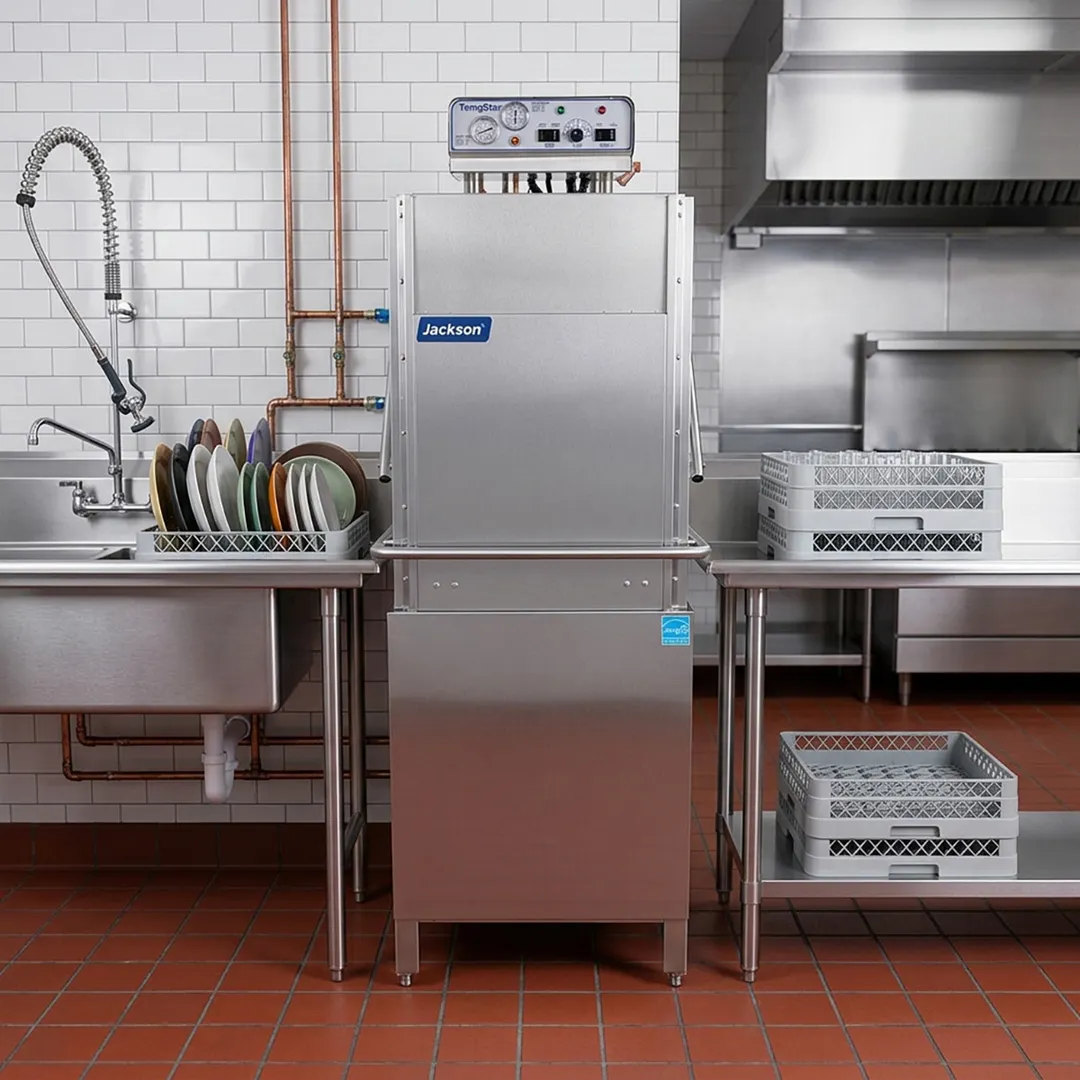

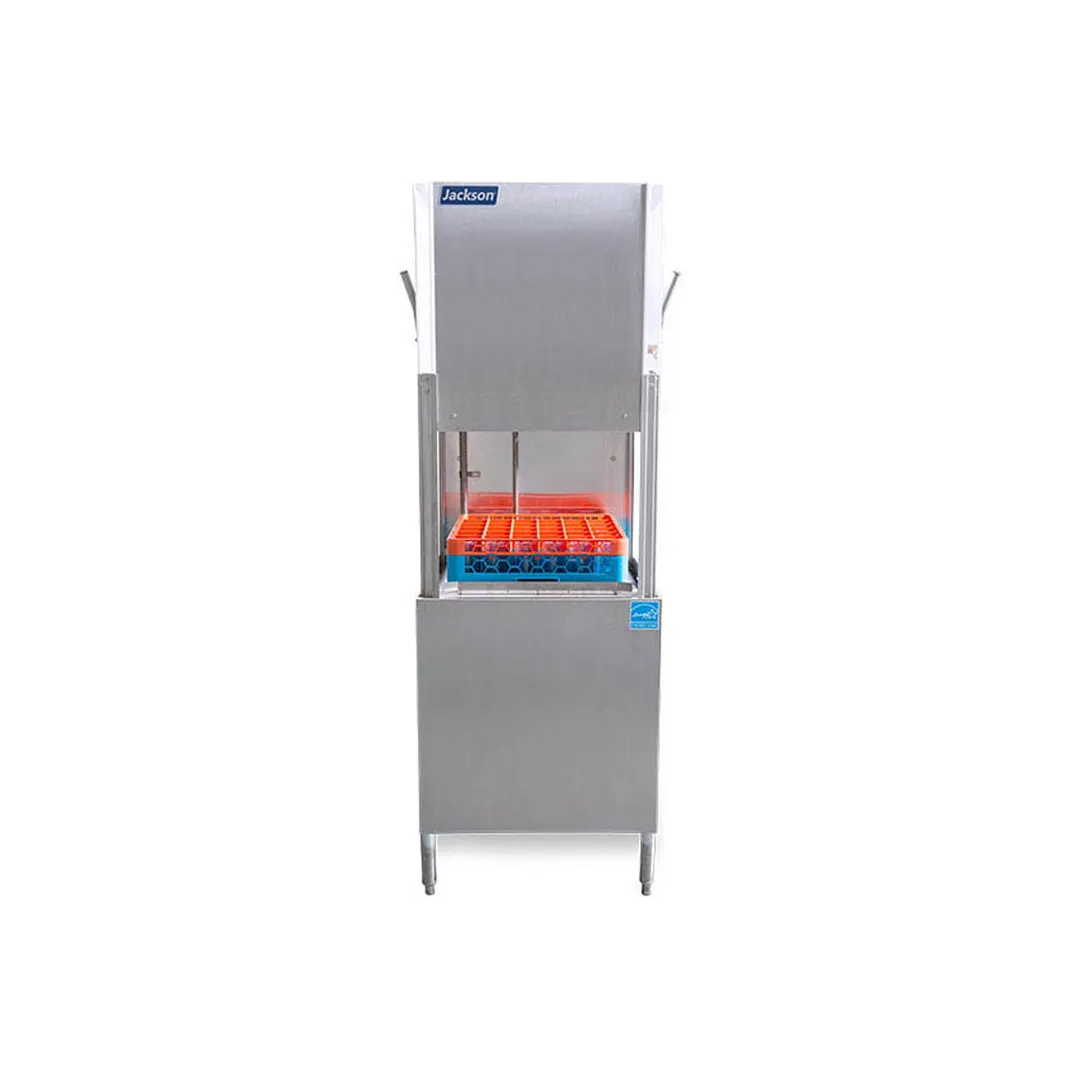

Jackson WWS TEMPSTAR HH-E 28" Door Type Dishwasher, 55 Racks/Hr - 40 Gal/Hr - High Temp with Booster

Description

Specified unit will be a Jackson TempStar HH-E tall chamber, high temperature sanitizing door-type dishwasher, rated by ETL Sanitation to NSF/ANSI Standard 3. Unit will be ENERGY STAR® certified and will be dual rated as both a dishwasher and a potwasher. Unit to be rated for 60 racks per hour, 0.78 gallons per rack, and will include a built-in 70 °F rise booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, and top mounted controls. Other features include automatic tank fill, delime mode, vent fan control, and 2 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.

Standard Features

• Certified as both a dishwasher and a potwasher to NSF/ANSI3 standards
• Built-in 70 °F (38.9 °C) rise booster heater with Sani-Sure™ final rinse system; 40 °F (22.2 °C) rise booster heater is available at no cost and must be specified at time of order
• Automatic tank fill
• Door actuated start
• Four (4) selectable timed cycles
• Delime/manual wash mode
• 27" (686 mm) vertical chamber clearance
• Lower counter-rotating wash arms and upper wash arm with specially designed stainless steel nozzles provide optimum spray coverage and superior cleaning action
• Split-door design accommodates installations with low ceiling heights
• Door switch
• 2 HP self-draining stainless steel wash pump
• Vent fan control shuts fan off when machine is idle
• Large scrap basket
• Single point connections for all utilities
• Field convertible from straight through to corner and vice versa (kit required)
• Low watt density electric wash tank heater
• Hi-limit thermostat and low water protection
• Detergent/rinse additive signal connection fuse box
• Front stainless steel dress panel
• Uses standard 20” X 20” (508 mm X 508 mm) racks
• Adjustable bullet feet
• Durable stainless steel construction
