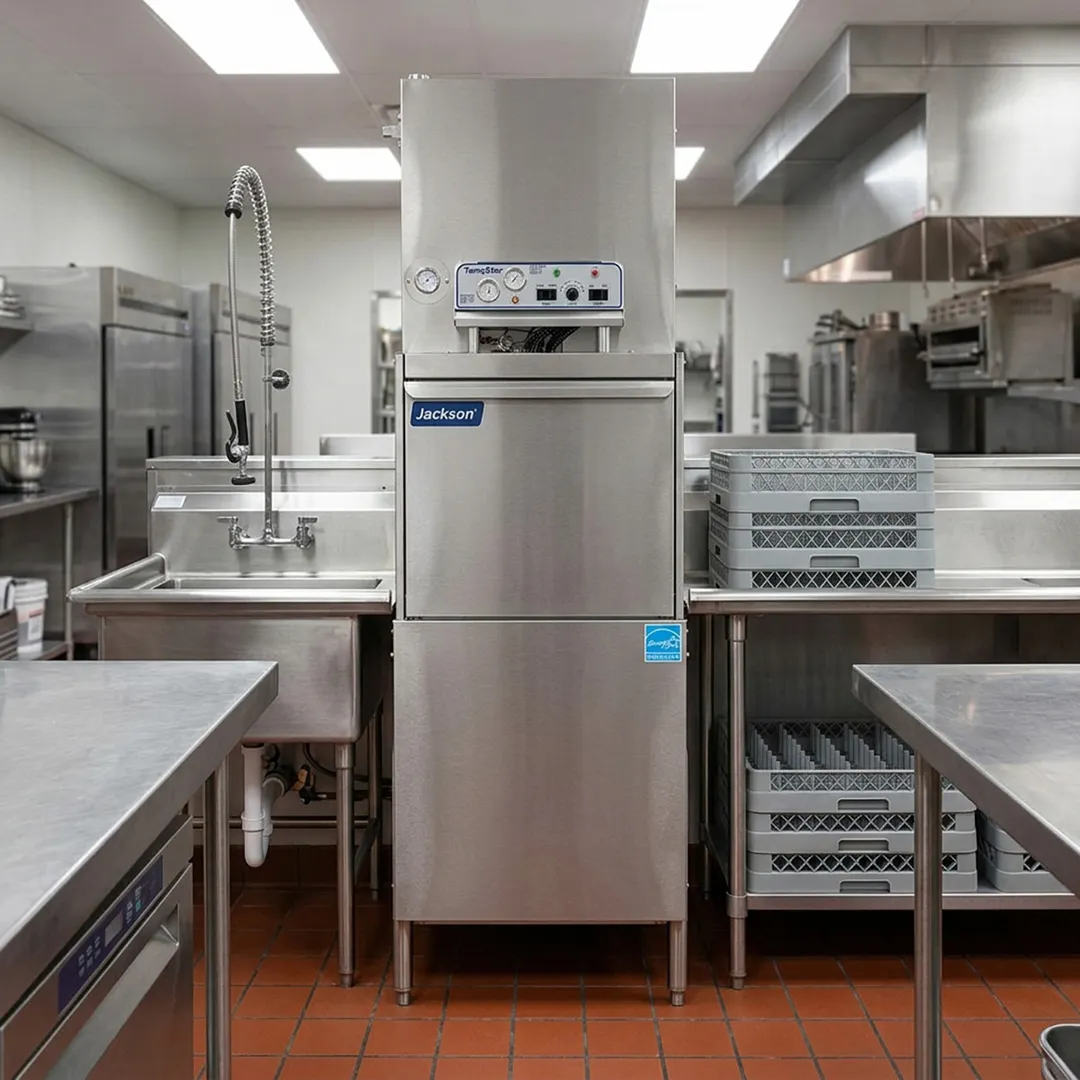

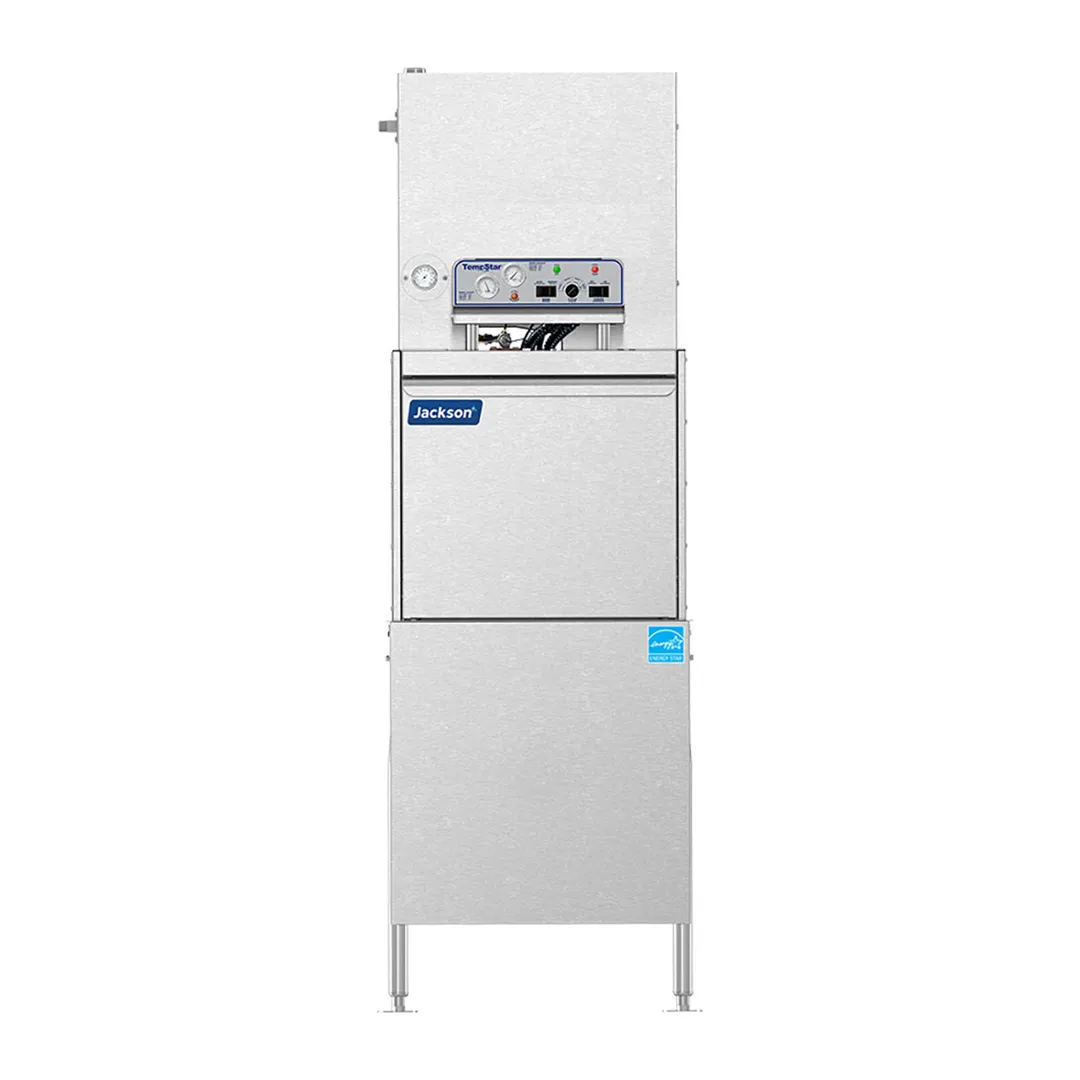

Jackson Warewashing TempStar® FL-VER Front-loading High Temperature Sanitizing Ventless Door-type with Energy Recovery
Description
Specified unit will be a Jackson TempStar FL-VER frontloading ventless high temperature sanitizing door-type dishwasher with energy recovery, rated by ETL Sanitation to NSF/ANSI Standard 3 and operates on a 3/4” cold water supply. Unit will be ENERGY STAR® certified. Unit to be rated for 41 racks per hour, 0.89 gallons per rack, and will include a built-in 70 °F rise booster heater with Sani-Sure™ final rinse system, four (4) selectable timed cycles, and top mounted controls. Other features include automatic tank fill, delime mode, vent fan control, and 1 HP stainless steel wash pump motor. Constructed of durable stainless steel with adjustable bullet feet.
Standard Features
- Ventless: does not require a hood
- Energy Recovery System
- Door interlock keeps door locked during cycle
- Cold water connection only
- Built-in 70 °F rise booster heater with Sani-Sure™ final rinse system ensures proper rinse water temperature
- Automatic tank fill
- Door-actuated start
- Four (4) selectable timed cycles
- Top mounted controls
- Delime/manual wash mode
- 15 5/8” (397 mm) vertical chamber clearance
- Specially designed stainless steel nozzles provide superior cleaning action
- Interchangeable upper and lower wash/rinse arms
- 1 HP self-draining stainless steel wash pump motor
- Vent fan control shuts vent fan off when machine is idle
- Large scrap basket
- Pressure regulator is provided for installation by others
- Single point connections for all utilities
- Field convertible from 3-phase to single phase and vice versa (kit required)
- Low watt density electric wash tank heater
- Hi-limit thermostat and low water protection
- Detergent/rinse additive signal connection fuse box
- Front stainless steel dress panel
- Uses standard 20” x 20” racks
- Adjustable bullet feet
- Durable stainless steel construction
From The Manufacturer
TempStar® Dishwasher, door type, front loading, 26-3/8""W x 32-1/4""D x 82""H, high temperature, with ventless & energy recovery, electric tank heat with built-in booster heater (70°F rise), approximately (41) racks/hour (0.89 gallons per rack), Sani-Sure™, 15-5/8"" vertical chamber clearance, automatic tank fill, (4) timed cycles, delime mode, top mounted controls, pressure regulator provided (for installation by others), vent fan control, 1 hp stainless steel wash pump motor, large scrap basket, electric tank heater, adjustable bullet feet with rear flanged feet, stainless steel exterior, cETLus, ETL-Sanitation, ENERGY STAR® (Requires Assembly)
