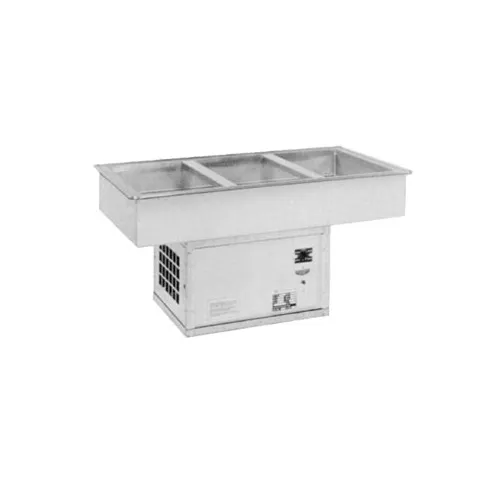

Atlas Metal WCMD-C-5 Drop-In Cold Pan (Refrigerated With Side Coils Self-Contained)
General Info And Purpose
This full depth cold pan, 9-3/4″, has copper tubing wrapped around its side walls as well as the bottom, to meet the strictest health department codes. The drop-in pan can be installed in virtually any counter and can be provided as fully self-contained—just plug it in and turn it on, or remote, where there’s a need to locate the compressor at a different location.
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain. The cold pan accommodates standard 12″ x 20″ pans—perfect for any cold food serving application.
Atlas Metal WCMD-C-5 Standard Features
- Accommodates your deepest pan or insert - 9-3/4” deep
- Refrigerated copper tubing around the bottom and all sides - meets your toughest health department standards
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified; UL Listed
Atlas Metal WCMD-C-5 Specifications
- PAN OPENINGS : 5
- PAN SIZE : 19-7/8” X 66-3/4” X 9-3/4” (50.4 X 169.5 X 24.7cm)
- WIDHT : 71” (180.3cm)
- CUT-OUT REQUIRED : 22-1/4” X 69-1/4” (56.5 X 175.8cm)
- SHIP WT. (LBS.): 271 (122,9kg)
- OTHER DETAILS : See spec. sheet
