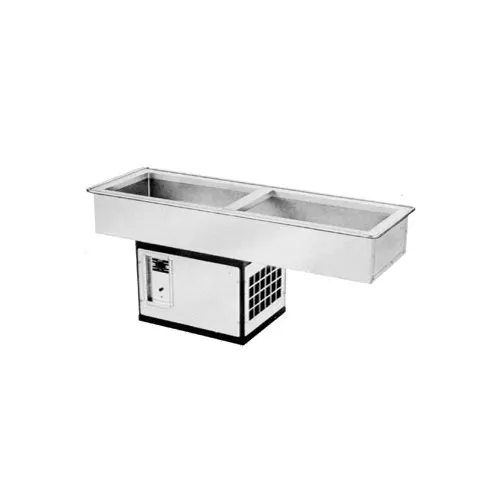

Atlas Metal WCML-2 Slim Line Drop-In Refrigerated Cold Pan
General Info
The slim-line design can be installed in extra narrow width counters. The unit is used with standard 12″ x 20″ pans, in the long configuration, and the overall cold pan will require only 16″ of the clear counter space! The cold pan is available in the standard 4-5/8″ depth and the 9-3/4″ full depth.
Construction
The pan is fully insulated for maximum efficiency and energy savings, and is provided with a factory applied gasket so that it can be installed in the finest wood fixtures without marring the counter top. The pan is constructed of stainless steel and is provided with a 3/4″ stainless steel drain.
Atlas Metal WCML-2 Standard Features
- Slim-line configuration - it can install in counters only 16” wide
- Fully insulated for maximum efficiency and energy savings
- Factory applied gasket - makes installation a snap and seals units to the counter top, thus eliminating seepage
- Accommodates standard 12” X 20” pans with the use of separator channel(s), or fractional size pans with the use of optional adapter bars
- 1-Year Parts & Labor Warranty
- NSF Certified; UL Listed
Atlas Metal WCML-2 Specifications
- PAN OPENINGS : 2
- WIDHT : 46” (116.8cm)
- PAN SIZE : 11-7/8” X 41-3/4” X 4-5/8” (30.1 X 106 X 11.7cm)
- CUT-OUT REQUIRED : 14-1/4” x 44-1/4” (36.1 X 112.3cm)
- SHIP WT. (LBS.): 166 (75,3kg)
- OTHER DETAILS : See spec. sheet
From The Manufacturer
Slim-Line Cold Food Drop-In Unit, refrigerated, 2-pan size, self-contained refrigeration, insulated pan, with on/off thermostat switch & pilot light, stainless steel inner liner & top, galvanized steel outer liner, 14-1/4" x 44-1/4" cut-out required, UL, NSF
