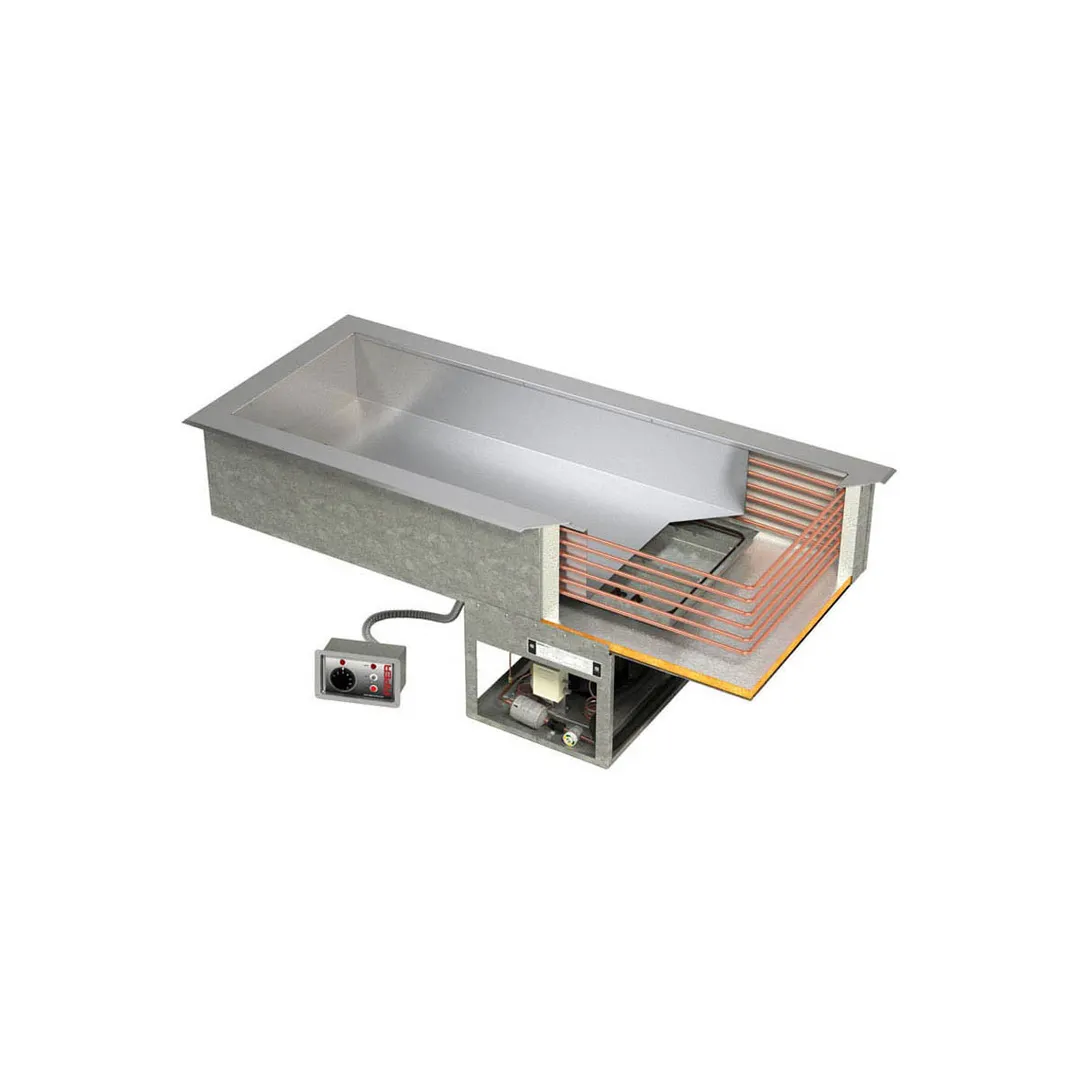

Piper Products 6-HCMDI Hot/Cold Drop-In - Mechanically Cooled
Piper Products 6-HCMDI Refrigeration System And Electrical
- Coils are mounted on sides and ends of cold pan
- 1/3 horsepower fan cooled condensing unit
- Power supply is 120V-60-1, 120V/208V, 120V/240V dual voltages to operate refrigeration unit and heaters
- A 2” x 4” junction box is provided for field wiring. These units are mounted in all metal fixtures
Piper Products 6-HCMDI Heater Assembly
- Unit has two 1000 watt elements on a 3-well unit, three 1000 watt elements on a 4-well unit, four 1000 watt elements on a 5-well unit and five 1000 watt elements on a 6-well unit
- All heating elements are installed under bottom of the well
Piper Products 6-HCMDI Standart Features
- 14-gauge stainless steel top with a feathered down edge on all sides
- Well is fabricated of 20-gauge stainless steel and is 7-1/2” deep
- Well is insulated with 1” thick fiberglass around sides and 2” thick fiberglass on bottom
- A 1” drain is built into the bottom of the well with shutoff valve
- Well is completely enclosed in a galvanized sheet housing, attached to framework
From The Manufacturer
Drop-In Hot/Cold, 6 pan size, mechanically cooled, 7-1/2" deep well with 1" drain, shut-off valve,14 gauge stainless steel top, enclosed in galvanized sheet housing, 1/3 HP
