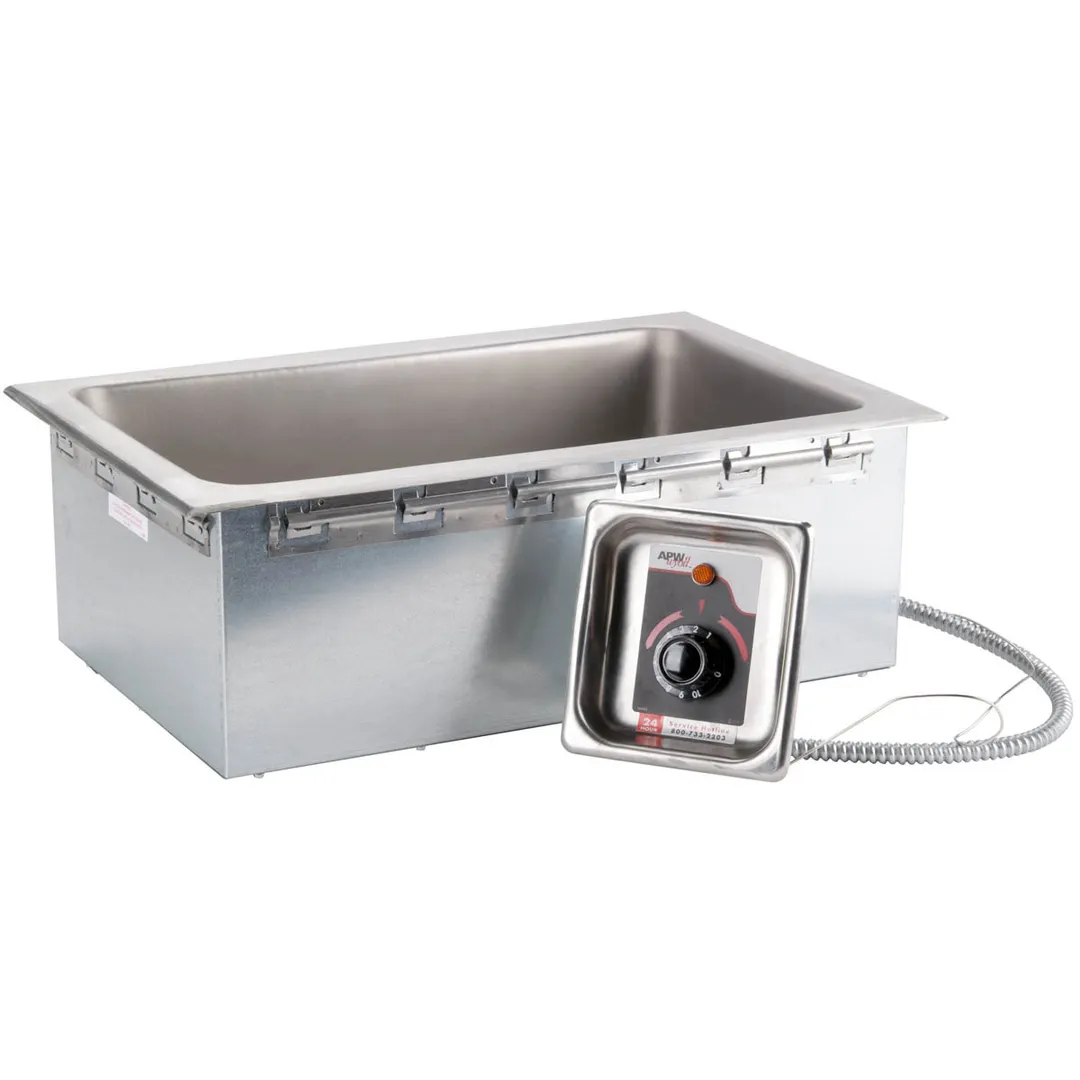

APW Wyott HFW-1D Hot Food Wells Top Mount w/EZ-Lock
APW Wyott HFW-1D Designed Smart
- Heavy-duty top mount, insulated rectangular Drop-in Hot Food Wells is designed for installation in metal or wood countertops.
- Hot Food Well accommodates standard size steamtable pans.
- Well is constructed of deep-drawn austenite stainless steel, above countertop with aluminized outer housing with sides and bottom fully insulated.
- Units shipped with drain are provided with stainless steel 1/2” NPT drain welded to bottom of pan provided with removable screen.
- Unit is heated by a tubular heating element shaped in serpentine fashion for even heat distribution to pan base.
- Element is mounted under well and secured by aluminized deflector shield for maximum efficiency. Unit standard with APW Wyott E-Z Locks on all four exterior sides for easy installation.

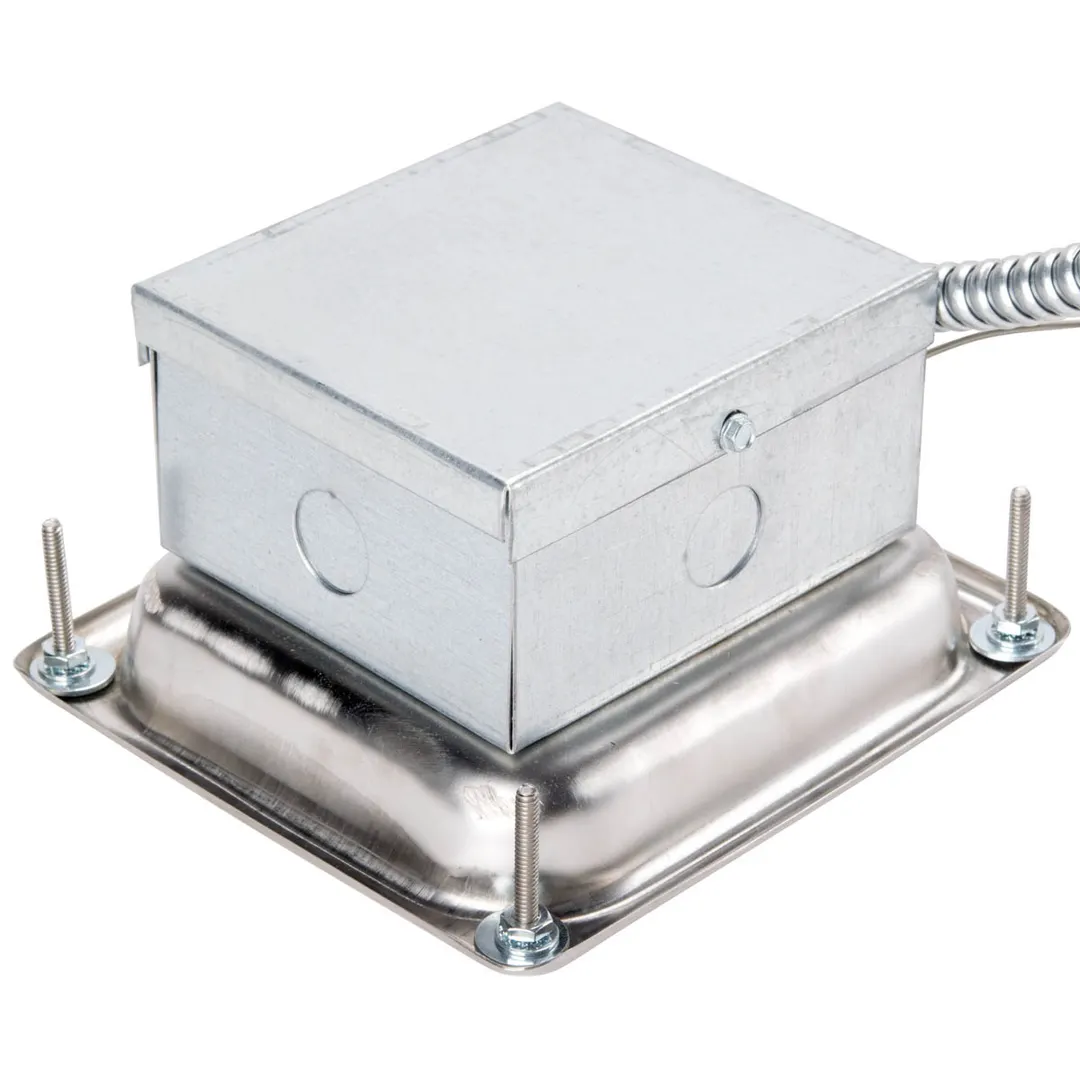

- The units have complete UL construction including electrical conduit, bezel and control box.
APW Wyott HFW-1D Design Features
- Deep-drawn stainless steel well pans.
- Stainless steel drain coupling.
- Units may be used WET or DRY (Wet offers best result).
- Easy access to heating elements.
- Compact housing-overall depth 8 11/16” and 11 1/2” over all drain manifold.
- Large indicating pilot light.
- Multiple units can be installed in same table or counter.
- Simplified construction reduces installation time and significantly reduces on-site electrical and plumbing cost.
- Unitized electrical wiring for single power hookup.
- Individual infinite controls.
- Factory assembled ¾” manifold drains-screens provided.
From The Manufacturer
Hot Food Well Unit, drop-in, electric, (1) 12" x 20" well, wet or dry operation, individual thermostatic controls, EZ lock, insulated, with drain, stainless steel well, aluminized outer housing, cULus, CSA, NSF, CE
