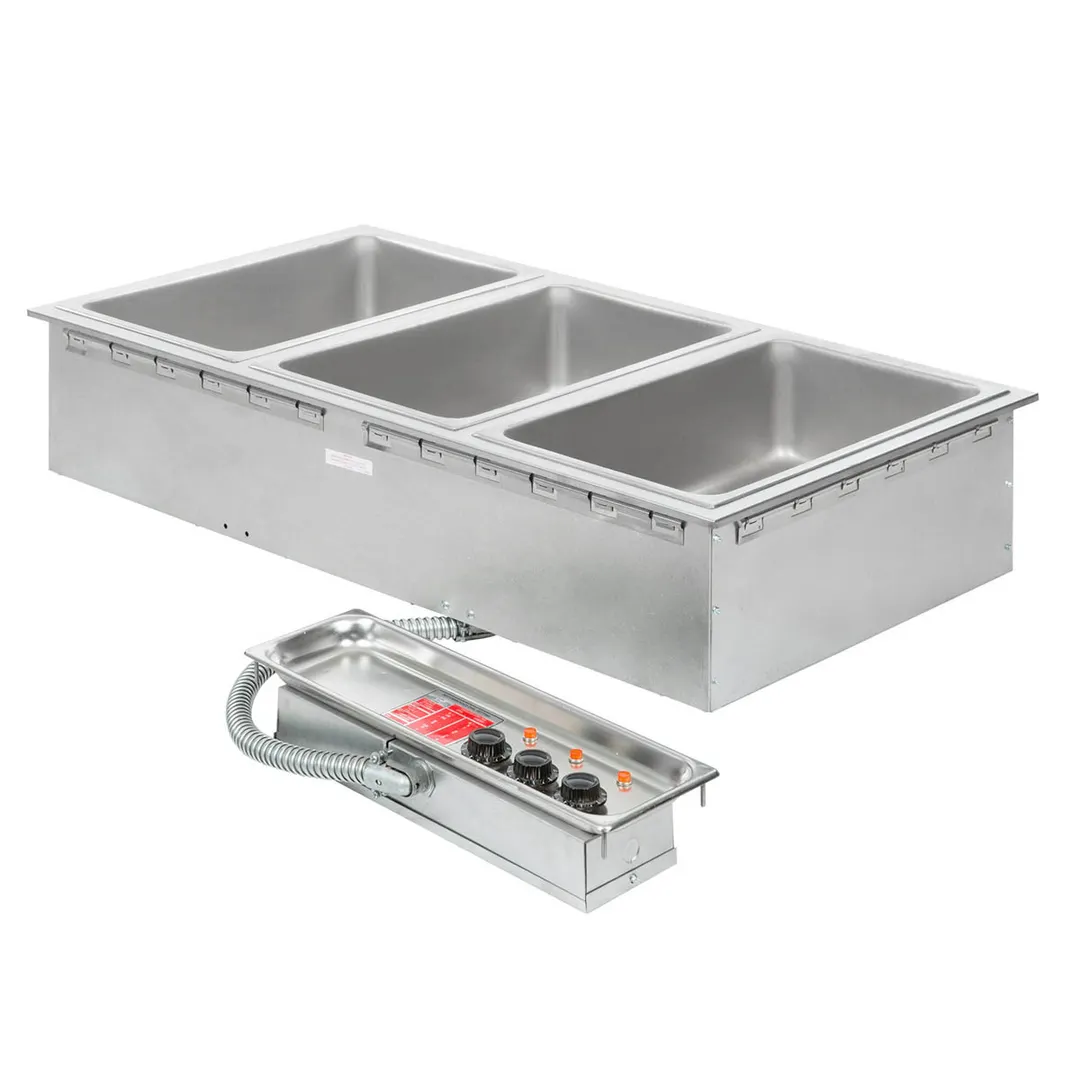

APW Wyott HFW-3D Hot Food Wells Top Mount w/EZ-Lock
APW Wyott HFW-3D Designed Smart
- Heavy-duty top mount, insulated rectangular Drop-in Hot Food Wells is designed for installation in metal or wood countertops.
- Hot Food Well accommodates standard size steamtable pans.
- Well is constructed of deep-drawn austenite stainless steel, above countertop with aluminized outer housing with sides and bottom fully insulated.
- Units shipped with drain are provided with stainless steel 1/2” NPT drain welded to bottom of pan provided with removable screen.
- Unit is heated by a tubular heating element shaped in serpentine fashion for even heat distribution to pan base.
- Element is mounted under well and secured by aluminized deflector shield for maximum efficiency. Unit standard with APW Wyott E-Z Locks on all four exterior sides for easy installation.
- The units have complete UL construction including electrical conduit, bezel and control box.
APW Wyott HFW-3D Design Features
- Deep-drawn stainless steel well pans.
- Stainless steel drain coupling.
- Units may be used WET or DRY (Wet offers best result).
- Easy access to heating elements.
- Compact housing-overall depth 8 11/16” and 11 1/2” over all drain manifold.
- Large indicating pilot light.
- Multiple units can be installed in same table or counter.
- Simplified construction reduces installation time and significantly reduces on-site electrical and plumbing cost.
- Unitized electrical wiring for single power hookup.
- Individual infinite controls.
- Factory assembled ¾” manifold drains-screens provided.
From The Manufacturer
Hot Food Well Unit, drop-in, electric, (3) 12" x 20" wells, wet or dry operation, infinite controls, EZ lock, insulated, with drain, stainless steel wells, aluminized housing, cULus, CSA, NSF, CE
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
