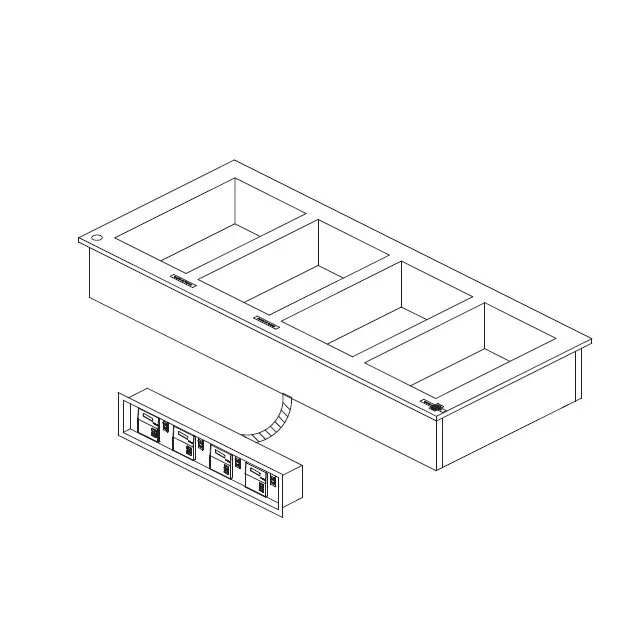

The Delfield N8731-DESP Drop-In Energy Saving Power (ESP) Hot Food Wells
Why Use Delfield's Drop-In?
Safety and Sanitation
UL and NSF - All Delfield Drop-in products are UL approved and NSF certified. Which means you can count on safe, consistent construction and performance every time.
Convenience
Delfield Drop-in products are easy to install into any new or existing counter. A press fit flange gasket comes pre-installed making the units ready to drop-in immediately.
Quality
Delfield Drop-in products have an unmatched level of quality. The units are reliably built by the best in the industry and come standard with a 90-day labor and 1-year parts warranty
Construction
Delfield Drop-in products are constructed with stainless steel tops and
interiors. Cold units are insulated with high-density polyurethane foam
and hot units are insulated with fiberglass.
Refrigeration lines are secured to the liner with stainless steel spot
clips and thermal transfer compound is applied to improve heat transferred
cool the food product better.
Delfield N8731-DESP Standart Features
- Individual digital temperature controls standard wired to one main control panel with 4’ of conduit and wire. Field install control panel at location
- N8731-DESP: ESP hot food wells, accommodates two 12”x 20” pans
- Energy Saving Power wells
- Top is constructed of 18-gauge stainless steel
- Flush mounted die stamped drawn 12” x 20” individual 20-gauge wells
- Wells depressed slightly into the top to hold in condensation
- Standard 1/2” stainless steel drain(s)
- Non-marring press fit top gasket
- Must be hard wired in the field
- Wet and dry operation
- 11.87” x 19.87” single hot food wells are manifolded together standard to one main gate valve
- Unit shall be insulated on the bottom and all sides with 1” of fiberglass
- Energy efficient 500 watt heat-pad per well
- Galvanized exterior body
- One year parts and labor warranty
Delfield N8731-DESP Specification
Top shall be one-piece 18-gauge stainless steel, with 0.65" (2cm) overhang
around perimeter and die-stamped 19.87" x 11.87" (50cm x 30cm) openings
with depressed edges. Formed well below each opening shall be 6.25" (16cm)
deep. Each well shall be equipped with a 0.5" female N.P.T. drain located
in right rear corner. All drains manifold to a 0.5" gate valve at the
left. Exterior housing shall be 20-gauge galvanized steel. Unit shall be
insulated on sides, bottom and between wells with 1.00" (2.5cm)
fiberglass.
Energy Saving Power wells (ESP) provided with individual solid state
digital temperature controls wired to one main control panel with 4’ of
conduit and wire. Each well is individually equipped with a 500 watt
heated pad attached to bottom and sides of well. Unit shall have a
three-wire electrical junction box to allow hard-wiring at installation.
Electrical connections are 208-230V or 240V.
