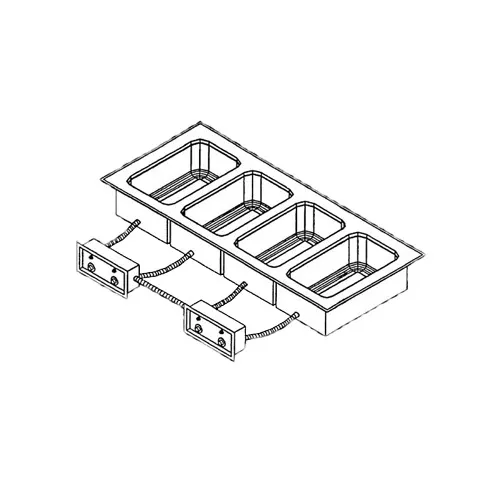

Piper Products MD-2 Multiple Well Hot Drop-Ins - Without Drain
Why use Piper Products Hot Drop-Ins?
Piper’s MD Series Multiple Well Drop-ins add a dependable, convenient and economical hot food unit to your counter section. Designed to be used wet or dry, multiple well units are available with or without drains. The MD Series Multiple Well Drop-ins are designed for installation into all metal counter fixtures.
Piper Products MD-2 Assembly Structure
- One-piece top-mounting flange is 14-gauge stainless steel with die-stamped openings in which the wells are mounted
- Individual wells are 20-gauge stainless steel, onepiece, die-stamped construction
- Locks are included on all sides to fasten unit into the countertop
- Each well is individually insulated to reduce heat transfer and for easy serviceability
- Drains are manifolded together and include fittings at each end for field attachment of the pipe cap and 3/4 NPT drain valve
Piper Products MD-2 Electrical
- MD-2 Series is available in 120V-1200W per well singlephase
- All units available in 208/240V - 1200W/1600W per well, single-phase or 3-phase.
- Each well is individually controlled with a thermostat and indicator light
Piper Products MD-2 Auto Water Fill Option
- An optional automatic water fill is available on all units with drains and manifold
- Auto-fill system allows unit to maintain the proper water level in each well
- A water level sensor is located in one well and a solenoid and water filter is located under the wrapper bottom
- To add this option add the suffix “AF” to the model number
From The Manufacturer
Hot Food Multi-Well Unit, Drop-in, Electric, individual pan design, without drain, (2) pan size for 12" x 20" pans, control box, thermostat controls, stainless steel, 2400 watts, NSF & UL
