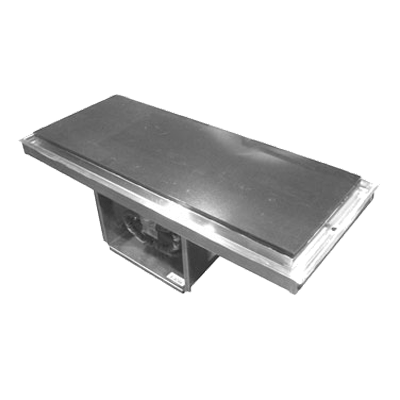

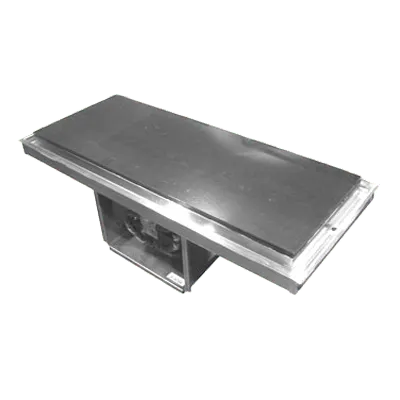

The Delfield N8231-GP Drop-in Self-Contained Granite Cold Slab
Why Use Delfield's Drop-In?
Safety and Sanitation
UL and NSF - All Delfield Drop-in products are UL approved and NSF certified. Which means you can count on safe, consistent construction and performance every time.
Convenience
Delfield Drop-in products are easy to install into any new or existing counter. A press fit flange gasket comes pre-installed making the units ready to drop-in immediately.
Quality
Delfield Drop-in products have an unmatched level of quality. The units are reliably built by the best in the industry and come standard with a 90-day labor and 1-year parts warranty
Construction
Delfield Drop-in products are constructed with stainless steel tops and
interiors. Cold units are insulated with high-density polyurethane foam
and hot units are insulated with fiberglass.
Refrigeration lines are secured to the liner with stainless steel spot
clips and thermal transfer compound is applied to improve heat transferred
cool the food product better.
Delfield N8231-GP Standart Features
- High density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam
- Thermal mastic heat transfer compound between granite and stainless steel
- 1.5” deep trough around perimeter with 3/4” stainless steel drain
- N8231-GP: 31” granite cold slab
- “Absolute Black” granite top on 14-gauge stainless steel
- On/Off switch located on compressor
- Stainless steel louver provided standard
- Environmentally friendly HFC-404A refrigerant
- 8’ electrical cord is standard
Delfield N8231-GP Specification
- Top: Top is constructed of 14-gauge stainless steel with 3/4” “Absolute Black” granite installed. Thermal mastic heat transfer compound is applied between the stainless steel and granite. Top is mechanically cooled with high density environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) polyurethane foam throughout.
- Body: : 24-gauge galvanized steel. Compressor suspends below top on 16-gauge galvanized frame.
- Refrigeration system: Unit uses environmentally friendly HFC-404A refrigerant. Refrigeration lines run in a serpentine pattern under stainless steel top with expansion valve as metering device. At 75˚F ambient temperature the unit will reach operating temperature of 0˚F to 20˚F in 2 hours. Unit is equipped with on/off switch.
- Electrical connections: 115V, 60Hz single phase. Unit is wired with 3-wire, grounded, maximum. Standard with 8’ (2.4m) cord and plug.
