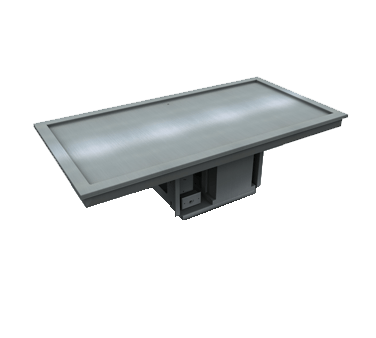

The Delfield N8258-STP Drop-In Self-Contained Sheet Pan Frost Top
Why Use Delfield's Drop-In?
Safety and Sanitation
UL and NSF - All Delfield Drop-in products are UL approved and NSF certified. Which means you can count on safe, consistent construction and performance every time.
Convenience
Delfield Drop-in products are easy to install into any new or existing counter. A press fit flange gasket comes pre-installed making the units ready to drop-in immediately.
Quality
Delfield Drop-in products have an unmatched level of quality. The units are reliably built by the best in the industry and come standard with a 90-day labor and 1-year parts warranty
Construction
Delfield Drop-in products are constructed with stainless steel tops and
interiors. Cold units are insulated with high-density polyurethane foam
and hot units are insulated with fiberglass.
Refrigeration lines are secured to the liner with stainless steel spot
clips and thermal transfer compound is applied to improve heat transferred
cool the food product better.
Delfield N8258-STP Standart Features
- N8258-STP: 58” length self-contained frost top - holds 3 sheet pans (tall left to right)
- Polyurethane foam insulation
- On/off switch
- Environmentally friendly HFC-404A refrigerant
- 1/2” drain connection
- Stainless steel louver provided
- Push-in perimeter gasket
Delfield N8258-STP Specification
Top is one-piece, heavy-gauge stainless steel. Top is recessed .75” (1.9cm) above counter surface. Refrigeration lines are secured to the underside of the top and insulated with highdensity, environmentally friendly, Kyoto Protocol Compliant, Non ODP (Ozone Depletion Potential), Non GWP (Global Warming Potential) closed-cell polyurethane. Exterior housing is heavy-gauge galvanized steel.
Condensing unit is suspended below the frost top on a heavygauge steel frame. Condensing unit uses HFC-404a refrigerant. Unit has an ON/OFF toggle switch, an 8’ (2.4m) cord and NEMA 5-15 plug. Unit has (1) stainless steel louver provided for field installation; cutout dimensions are 12.00” x 23.50” (30cm x 60cm). A second opening at the rear of the cabinet must be provided at installation to allow for proper air circulation.
