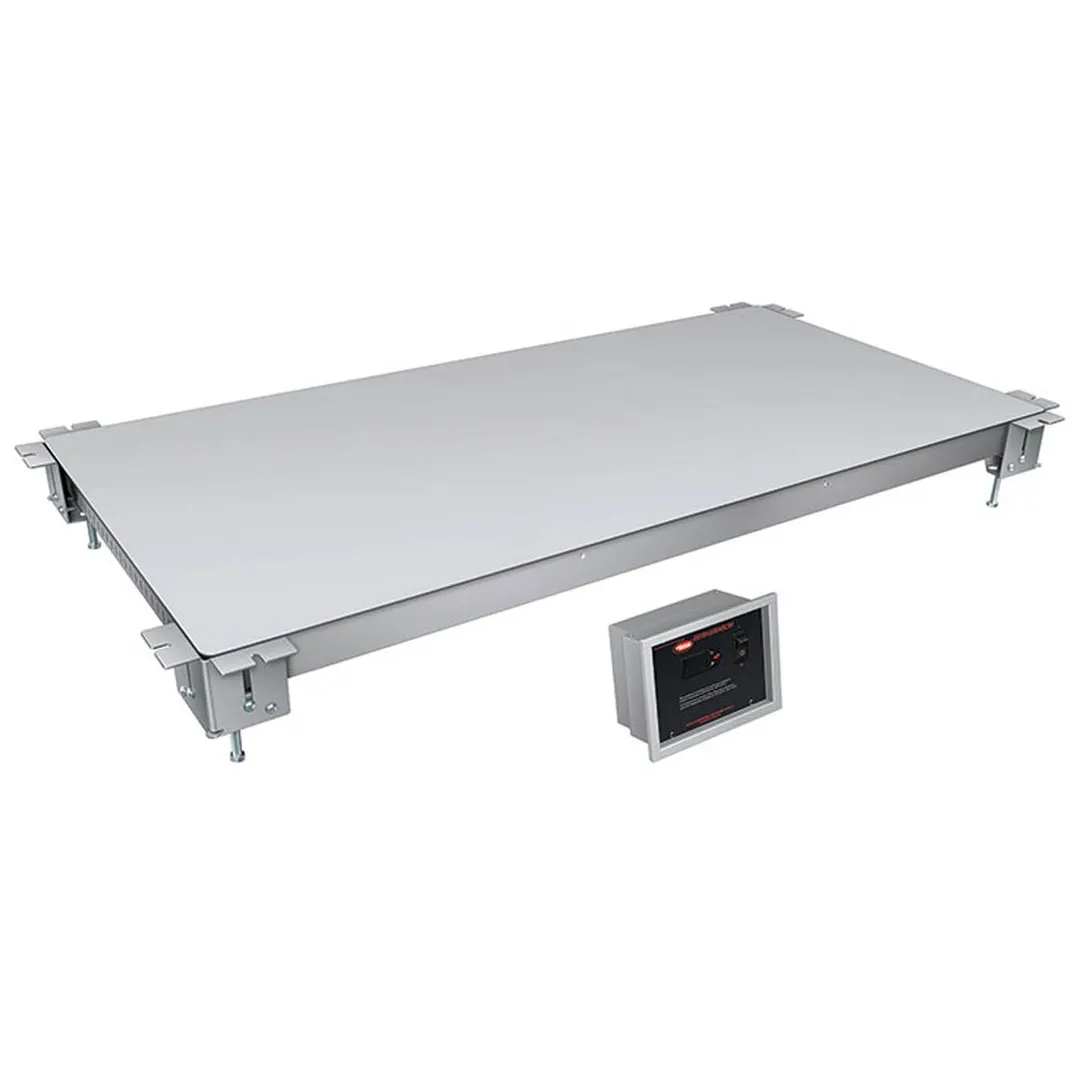

Hatco CSUX-36-F Remote Cold Undermount Shelf
Why use Hatco Built-Ins?
Customized Solutions
- Whether it’s a built-in foodwarmer or cold food display shelf, Hatco Built-Ins keep foods at their preferred hot or cold serving temperatures while providing unlimited flexibility for each operator’s unique foodservice needs
- Ideal for buffets, cafeterias, catering, clubs & bars, concessions, convenience stores, restaurants & cafés, and supermarkets & delis
- Models available with a variety of surfaces – from black ceramic glass, aluminum, Swanstone simulated stone and more – and sizes to complement any décor and operation
It's Hot, It's Cold
- Hot/Cold Shelves provide the ultimate flexibility and versatility, easily changing between a Heated Shelf and a Cold Shelf (and vice versa) to cater to different food products and day parts
- Transfer time between modes is approximately 30 minutes
- Patent-pending thermal break significantly reduces condensation and temperature transfer from the shelf to the counter
- Shelves available as cold-only to keep pre-chilled food products in the perfect chill zone for serving
High Performance
Hatco's Cold Shelves Undermount are designed to keep your products in the perfect chill zone. Undermount shelves have the amazing benefit of being able to be installed under the counter top of your choice! The CSUR, CSUX Remote (R or X) models have the added benefit of allowing design flexibility for fabricators.
Hatco CSUX-36-F Standard Features
- Mounts directly to underside of appropriate countertop material
- Approved materials include granite and quartz up to 1 3/16" (30 mm), Swanstone® (provided by Hatco), and certain stainless steel or aluminum surfaces approved by Hatco. Please contact the factory for applications with other materia
- CSU units have unattached Condenser, attached Control Box CSUR units have unattached Condenser and Control Box CSUX have no Condenser (condenser supplied by others) and unattached Control Box
- CSU(R) condensers utilize R-513A refrigerant CSUX models allow shelves to be cooled with other refrigerants
- Condensing unit features easy serviceability with sight glass, service valves, dryer/filter and receiver (CSU, CSUR models only)
- CSU models offer a long, flexible, refrigerant line which allows condensing unit to be pulled out for service
- With CSU models, condensing unit may be mounted up to 4' (1219 mm) away from the center of shelf
- Control Box can be mounted 4' (1219 mm) from center of the shelf (CSBF models only
- All units have an Electronic Temperature Control Box with a 4' (1219 mm) lead wire (Standard)
- All models are top mounted with a hardcoat aluminum surface
From The Manufacturer
Cold Shelf, undermount, 36"W x 15-1/2"D, electronic temperature control (shipped loose), designed for remote refrigeration (not included), aluminum hardcoat, undermount, cULus, Made in USA
Images show the product series. Color, configuration, included items and accessories vary by model. See the spec sheet for this model.
