Piper Products 4-FTDI Frost Top Drop-Ins
Why use Piper Products Drop-Ins ?
Pipers innovative “Frost Top Units” are ideal for parfaits, pastries, gelatins and a variety of other dessert and salad dishes. These units combine excellent display and appeal with easy, efficient cooling.
Piper Products 4-FTDI Electrical
- 120 volts single-phase, 6.3 amps
- On/Off switch and pilot light are supplied in a remote mounted control box which is factory connected to the main control box via flexible conduit.
Piper Products 4-FTDI Refrigeration System
- 1/3 horsepower fan cooled condensing unit with an expansion valve and fin and tube evaporator coil.
- Environmentally safe 134A refrigerant
- Copper tubing refrigerant coils attached to the bottom of the cold plate and fully insulated.
Piper Products 4-FTDI Standart Features
- 14-gauge stainless steel top with 1-1/2” turndown on all sides
- Top has raised one-piece 14-gauge cold plate with drip trough on all sides, 1/2" drain and valve on one end of trough.
- A 3/4” drain is built into the bottom of the well to the right from the operator’s side
- Uses environmentally friendly 134A refrigerant
- One year parts and labor.
From The Manufacturer

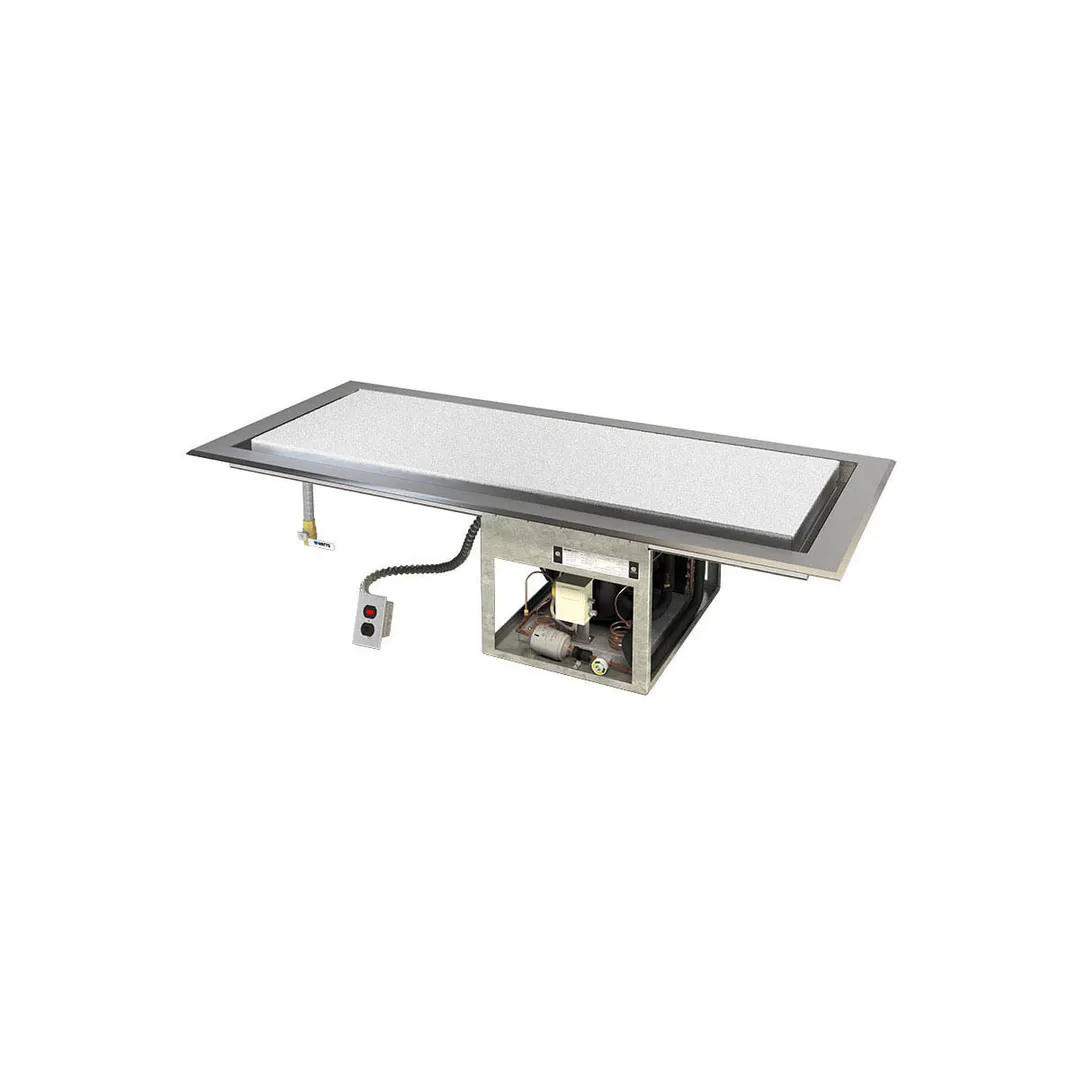

Drop-In Frost Top, (4) well size, approximately 59-5/8"W x 25-5/8"D (overall), raised one-piece cold plate, drip trough on all sides, 3/4" drain built into bottom of well, stainless steel top, feathered down edge on all sides, on/off switch & light supplied in a remote mounted control box factory mounted via flexible conduit, self-contained refrigeration
