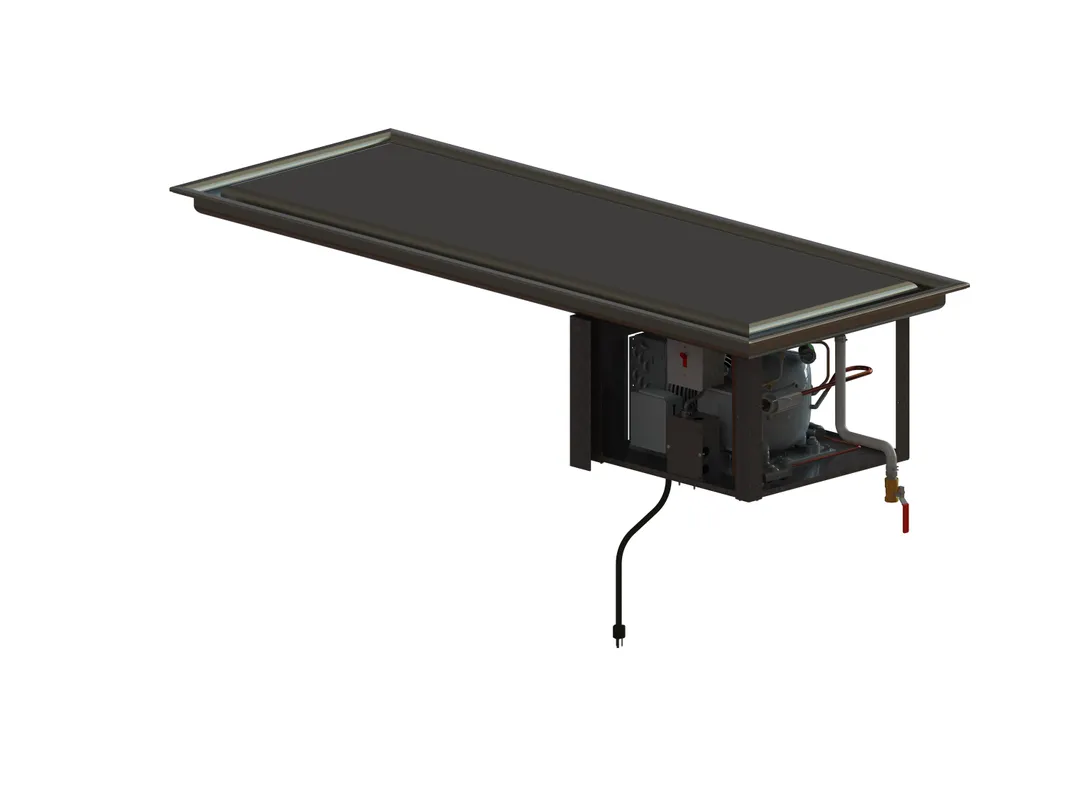

Vollrath FC-4CP-06120-F 81" Stainless Drop-in Frost Top
Features And Benefits
- Flange and display are 300-series stainless steel.
- Units utilize R290 refrigerant, which has a lower GWP (Global Warming Potential) than many previously-used refrigerants.
- Frost-top display area is one-piece.
- Unit is designed for top-mount installation, flush with countertop.
- Under-drip-edge gasket is included.
- A full-perimeter drip edge contains spills and condensation within the stainless steel countertop area.
- Refrigeration coils are attached underneath and to the sides for maximum cooling and a full-frost pattern.
- Cooling coils are insulated with extruded polystyrene insulation for efficiency and performance.
- Display surface averages 0 °F (-18 °C) at 70 °F (21 °C) ambient temperature.
- Condensing unit is N below the top.
- Remote on/off switch with 4 ft. (1.2 m) cord, can be mounted to any cabinet side.
- 6 ft (1.5 m) cord with plug is included.
Clearance And Environment
- Needed clearance is zero on sides, 3" (7.6 cm) from the condenser air inlet and outlet, and 1.5" (3.8 cm) at the bottom.
- Follow all regulations, warnings, and cautionary guidance specific to products that utilize R290 refrigerant.
- This unit is made for indoor use only.
- Requires at least 80 square inches for both fresh-air intake and exhaust. See back page for details.
- Frost tops are intended to hold plated, pre-chilled food and beverages for short periods of time. Frost tops are not intended for direct contact with food.
From The Manufacturer
Frost Top Drop-In, 6-pan, 300 series stainless, remote on/off switch, gasket included for installation under drip-edge, 1/3 hp compressor, 120v/60/1-ph, 5.5 amps, NEMA 5-15P, overall dimensions: 81-1/4" x 26-1/16", cutout dimensions: 80-1/2" x 25-1/4", inner area length: 75-1/4", cULus, NSF
