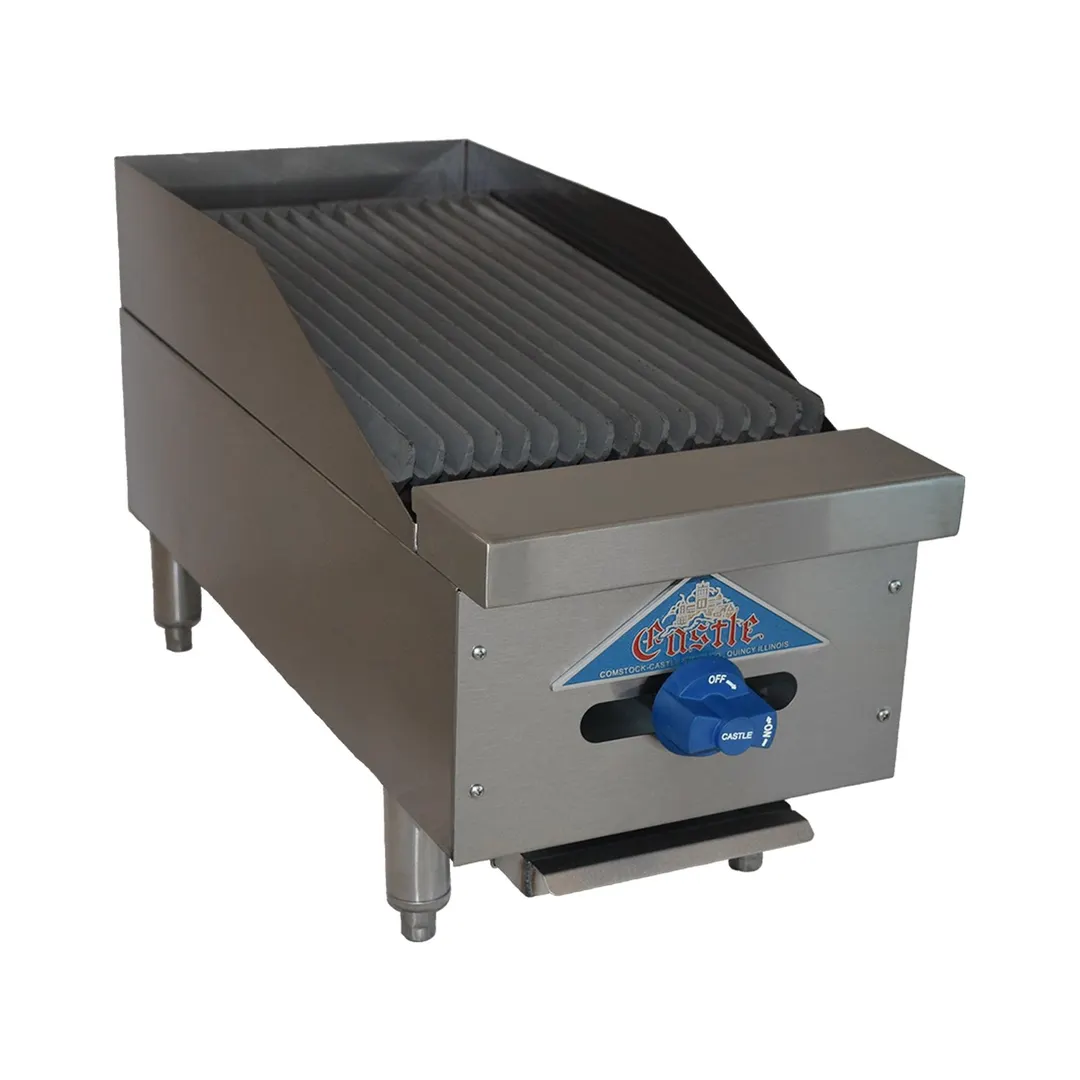

The Comstock-Castle 3212RB Castle Series Radiant Char-broilers
Comstock-Castle 3212RB Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 5Ė heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnose-rail is functional on which to set plates or utensils and also serves as control. Corrosion resistant, 16 gauge, welded aluminized steel firebox with excellent heat reflection characteristics. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0Ė on the sides and 4Ė in the rear. Char-broilers are approved for use in non-combustible locations only.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4Ė WC for natural gas and 10Ė WC for propane. Manifold size is 3/4Ė NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.
Burners & Match-Up
12Ė incremental char-broilers feature 40,000 BTU burners, one for each 12Ė increment. 18Ė, 30Ė and 42Ė models feature 2, 4 and 6 burners respectively, each rated at 18,000 BTU. 32 Series char-broilers are designed to match up with 32 Series griddles and hot plates
Top Grates
Cast iron top grate sections measure 24Ė deep, designed with cast-in grease trough on each blade to allow grease run off into the front cold zone grease trough and reduces flare up. Each section is reversible for sloped or level grilling. Stainless steel splash guards on 3 sides graduating up to 4Ė high. Grease drain slot is 3.5Ė x 1Ė and feeds into a large, removable grease drawer.
Accessories
Safety pilot controls, lava rock, gas hoses, grill scrapers, spatulas, cleaning supplies, carrying handles, knob protectors and matching equipment stands.
Comstock-Castle 3212RB Specification
Castle Series Char-Broiler, countertop, gas, 12" wide x 32" deep frame, 12" wide x 24" deep grill area, inverted "V" angle iron radiants, cast iron top grates, sloped or flat, manual control, stainless steel splash guard, insulated stainless steel frame, 5" adjustable feet, 30,000 total BTU, NSF
