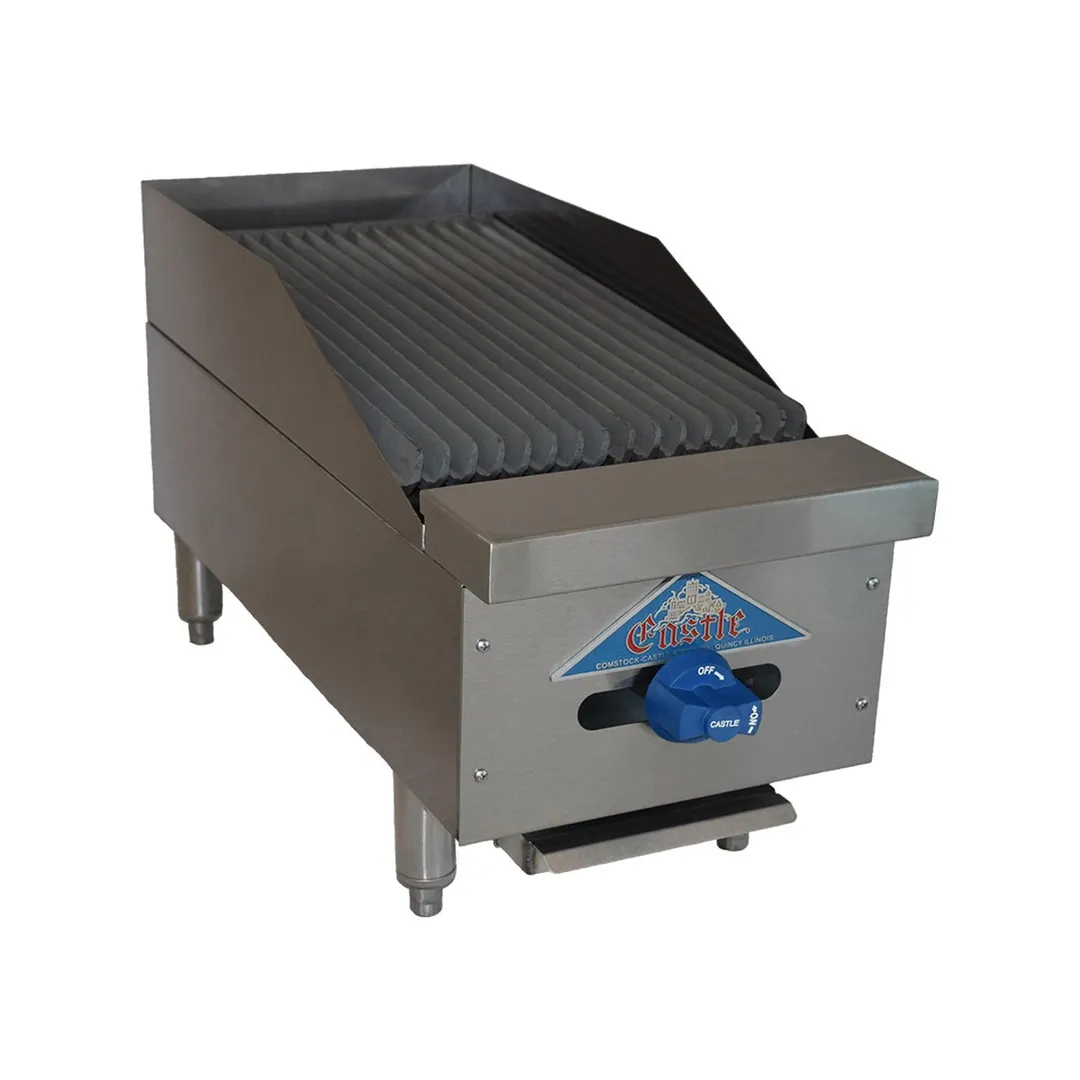

The Comstock-Castle FHP12-1LB FHP Series CharBroilers
Comstock-Castle FHP12-1LB Standart Features
Construction
Easy cleaning, corrosion resistant stainless steel finish, welded with angle iron and aluminized inner framing. Sturdy 4˝ heavy duty stainless pipe legs with adjustable feet. Stainless steel bullnose-rail is functional on which to set plates or utensils and also serves as control. Corrosion resistant, 16 gauge, welded aluminized steel firebox with excellent heat reflection characteristics. Double wall construction with heavy insulation for cooler operation. Installation clearances for non-combustible surfaces are 0˝ on the sides and 4˝ in the rear. Char-broilers are approved for use in non-combustible locations only
Burners
12˝ incremental broilers feature 25,000 BTU cast iron “H” pattern burners, one for each 12˝ increment. 18˝ & 30˝ models feature 2 and 4 straight burners respectively, each rated at 20,000 BTU. Optional 35,000 BTU “H” burners available on 12˝ incremental broilers.
Controls
Equipped with brass gas valves and automatic standing pilots. Pressure regulators are set at the factory for the gas specified. Optimal pressures are 4˝ WC for natural gas and 10˝ WC for propane. Manifold size is ¾˝ NPT. All controls are tested and confirmed in good working order. Calibration and adjustments are the responsibility of the installer.
Radiants
Char-broiler radiants are either lava rock or heavy duty angle iron, inverted “V” type for superior uniform heating temperature. “V” type radiants are easily removable for cleaning
Top Grates
Cast iron top grate sections measure 20.5˝ deep, designed with cast-in grease trough on each blade to allow grease run off into the front cold zone grease trough and reduces flare up. Each section is reversible for sloped or level grilling. Stainless steel splash guards on 3 sides graduating up to 4˝ high. Grease drain slot is 3.5˝ x 1˝ and feeds into a large, removable grease drawer.
Match-Up
FHP Series char-broilers are designed to match up with FHP griddles and hot plates.
Accessories
Lava rock, grate scrapers, spatulas, cleaning supplies, gas hoses, carrying handles, knob protectors and matching equipment stands.
Comstock-Castle FHP12-1LB Specification
Char-Broiler, countertop, gas, 12" wide x 21" deep grill area, cast iron grates, sloped or flat, lava rock, manual control, stainless steel splash guards on 3 sides, stainless steel exterior, 4" stainless steel legs, 25,000 BTU, NSF, ETL
