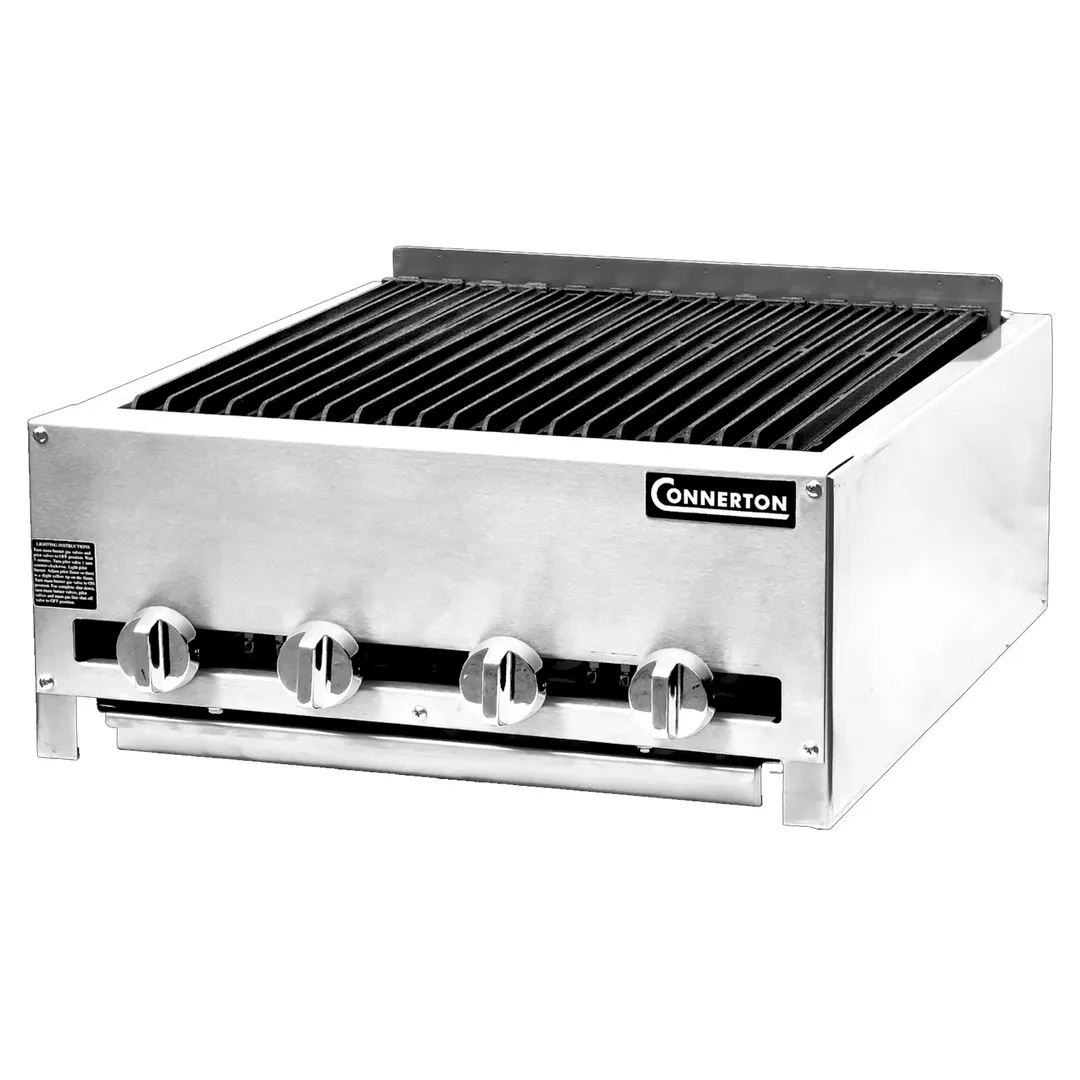

The Connerton CRB-36-S Heavy Duty Radiant Broiler

Why use Connerton Broiler?

CRB-S series radiant broilers feature a 15,000 BTU stainless steel tubular burner every 6″ with a heavy cast-iron radiant. The fully welded #304 stainless steel body is available in width sizes of 12″ through 72″. It is also available as a floor model with adjustable leveling feet or casters.

Connerton CRB-36-S Features

Stainless steel body
Fully-welded
12,000 BTU burners every inch
CSA & NSF design certified
Available with legs & floor models

Connerton CRB-36-S Specifications

Body: 16 Gauge #304 Stainless Steel, Fully Welded
Fire Box: 14 Gauge #304 Stainless Steel, Welded to Body
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Heavy Duty Cast Iron w/ “Grease Flow Channels”
Radiants: Heavy Duty Cast Iron
Burners: 12,000 BTU Stainless Steel
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to body, with Stainless Steel undershelf and adjustable feet.

Connerton CRB-36-S Options

1/2” Steel Rolling Rod Grates
4” Removable Stainless Steel Splash, Sides and Back
Stainless Steel Plate Shelf
4” Legs Accessory
Floor Model Accessory

From The Manufacturer

Charbroiler, countertop, gas, 36"W, cast iron radiants & top grates with grease flow channels, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front panel and drip pan, 150,000 BTU, NSF, CSA

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.

Manufacturer	Connerton
Model Number	CRB-36
Weight	210 lbs
Width	36″
Depth	27″
Height	10″
Installation Type	countertop
Power Type	gas
Number of Burners	6 burners
Heating Source	radiant
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Certifications	NSF, CSA
Total BTU	150,000
Cooking Surface Depth	22"
