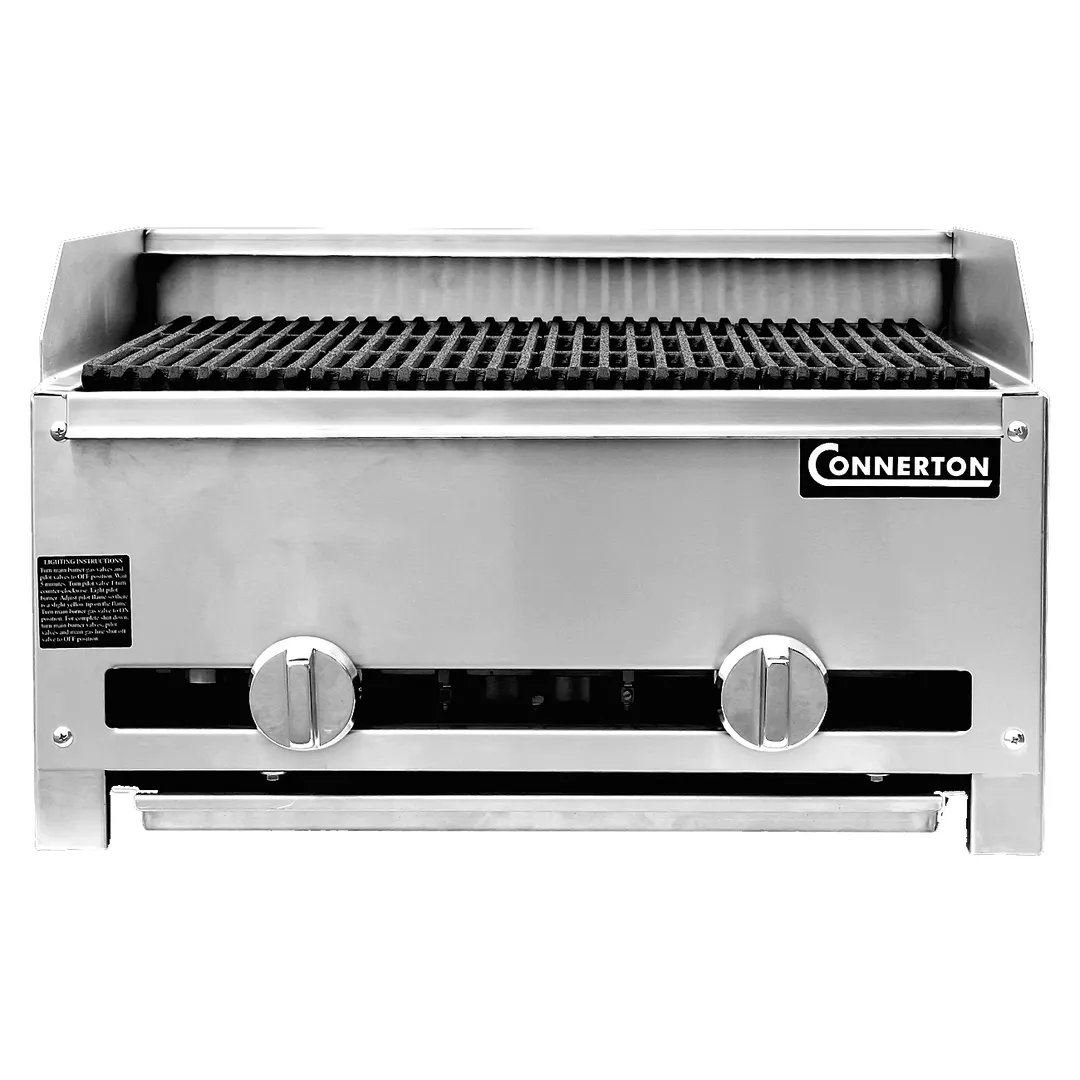

The Connerton RLRB-23-37R-S Radiant Broiler

Why use Connerton Radiant Broiler?

RLRB/L-S series radiant broilers feature 28,000 BTU cast-iron “H” burners. The fully welded #304 stainless steel body and stainless firebox is available in width sizes 12″ through 52″. It is also available as a floor model with adjustable leveling feet or casters.

Connerton RLRB-23-37R-S Features

Stainless steel body
Welded #304 Stainless Steel: For easy cleaning and long life
Removable Fire Box: For easy cleaning and maintenance
Extended Burners - 18” length:For better heat distribution
Fully-welded
28,000 BTU burners
CSA & NSF design certified
23” Deep Body

Connerton RLRB-23-37R-S Specifications

Body: 18 Gauge #304 Stainless Steel, Fully Welded
Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Heavy Duty Cast Iron, Adjustable Rear Height
Radiants: 12 Gauge Stainless Steel
Burners: 28,000 BTU Cast Iron, 18” Long
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to

Connerton RLRB-23-37R-S Options

1/2” Steel Rolling Rod Grates
Stainless Steel Plate Shelf
4” Legs Accessory

From The Manufacturer

Charbroiler, countertop, gas, 37"W, 12ga stainless steel radiants, cast iron top grates with rear height adjustment, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front & drip pan, 84,000 BTU, NSF, CSA

Manufacturer	Connerton
Model Number	RLRB-23-37R
Weight	175 lbs
Width	37″
Depth	23″
Height	13″
Installation Type	countertop
Power Type	gas
Number of Burners	3 burners
Heating Source	radiant
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	stainless steel
Certifications	NSF, CSA
Total BTU	84,000
Cooking Surface Depth	21"
