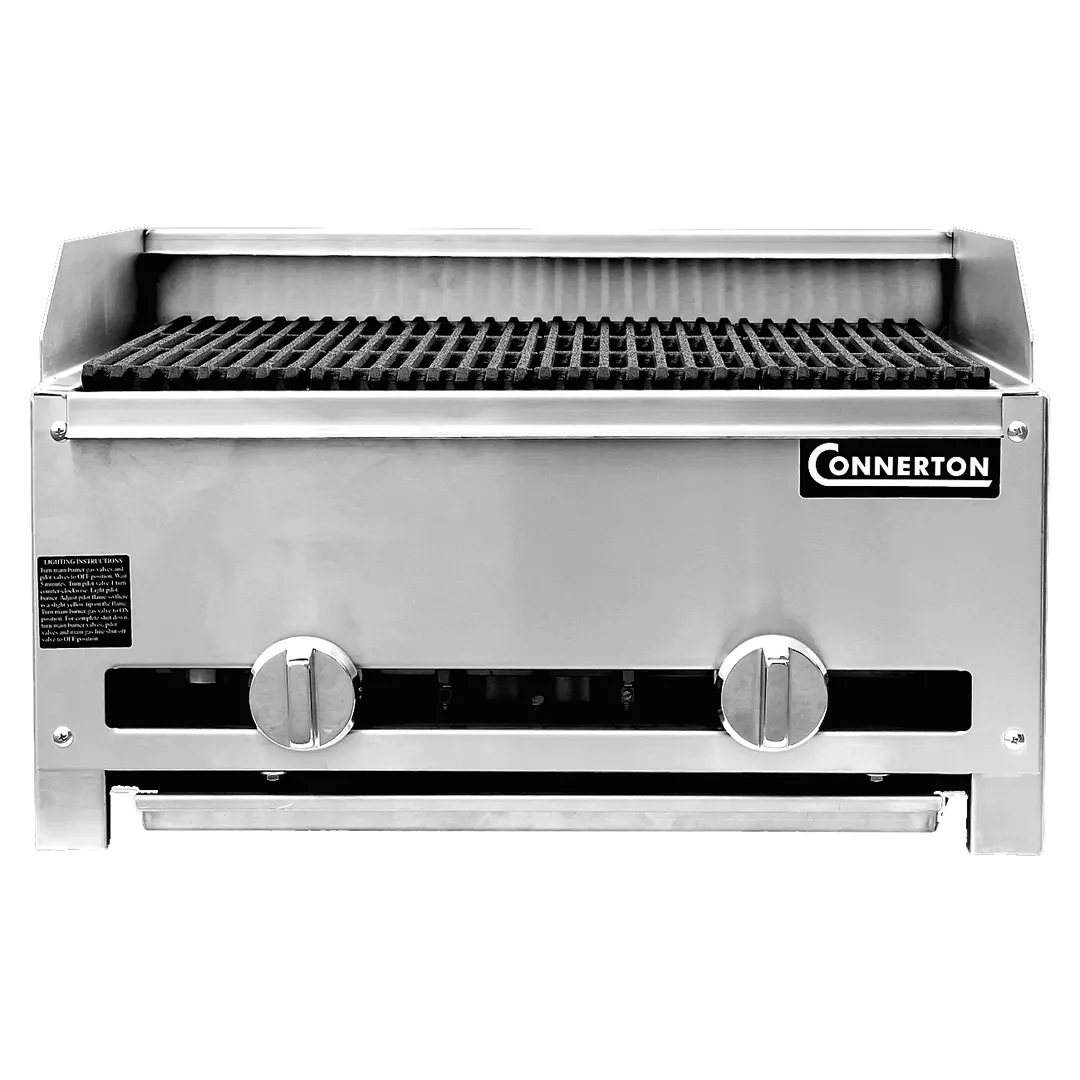

The Connerton RLRB-23-47L-S Lava Rock Broiler

Why use Connerton Lava Rock Broiler?

RLRB/L-S series radiant broilers feature 28,000 BTU cast-iron “H” burners. The fully welded #304 stainless steel body and stainless firebox is available in width sizes 12″ through 52″. It is also available as a floor model with adjustable leveling feet or casters.

Connerton RLRB-23-47L-S Features

Stainless steel body
Welded #304 Stainless Steel: For easy cleaning and long life
Removable Fire Box: For easy cleaning and maintenance
Extended Burners - 18” length:For better heat distribution
Fully-welded
28,000 BTU burners
CSA & NSF design certified
23” Deep Body

Connerton RLRB-23-47L-S Specifications

Body: 18 Gauge #304 Stainless Steel, Fully Welded
Fire Box: 16 Gauge #304 Stainless Steel, Welded to Body
Front: Removable 18 Gauge #304 Stainless Steel Panel
Top Grates: Heavy Duty Cast Iron, Adjustable Rear Height
Bottom Grates: Cast Iron
Burners: 28,000 BTU Cast Iron, 18” Long
Drip Pan: 18 Gauge #304 Stainless Steel
Valves: Heavy Duty Brass
Gas Inlet: ¾ NPT
Gas Pressure: 4.0” Natural, 11.0” Propane (Inches Water Column)
Legs (Floor Model): 1-1/2” sq. X 16 Gauge #304 Stainless Steel tubing welded to

Connerton RLRB-23-47L-S Options

1/2” Steel Rolling Rod Grates
Stainless Steel Plate Shelf
4” Legs Accessory

From The Manufacturer

Charbroiler, countertop, gas, 47"W, lava-rock with cast iron bottom grates, cast iron top grates with rear height adjustment, manual controls, 3/4" NPT rear gas connection, fully welded stainless steel body, fire box, front & drip pan, 112,000 BTU, NSF, CSA

Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.

Manufacturer	Connerton
Model Number	RLRB-23-47L
Weight	295 lbs
Width	47″
Depth	23″
Height	13″
Installation Type	countertop
Power Type	gas
Number of Burners	4 burners
Heating Source	lava rocks
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Certifications	NSF, CSA
Total BTU	112,000
Cooking Surface Depth	21"

	Connerton RLRB-23-47L 47" Countertop Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-42L 42" Countertop Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-47L-F 47" Floor Model Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-42L-F 42" Floor Model Gas Lava Rock Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-52L 52" Countertop Gas Lava Rock Charbroiler w/ (5) Burners, 140.000 BTU Discounted Shipping	Connerton RLRB-23-52L-F 52" Floor Model Gas Lava Rock Charbroiler w/ (5) Burners, 140.000 BTU Discounted Shipping	Connerton RLRB-23-47R 47" Countertop Gas Radiant Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-42R 42" Countertop Gas Radiant Charbroiler w/ (4) Burners, 112.000 BTU Discounted Shipping	Connerton RLRB-23-37L 37" Countertop Gas Lava Rock Charbroiler w/ (3) Burners, 84.000 BTU Discounted Shipping
Price	Price	Price	Price	Price	Price	Price	Price	Price	Price
Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping	ShippingPlus Shipping
Total BTU	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU100.000 - 140.500	Total BTU4.000 - 24.500
Certifications	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA	CertificationsNSF, CSA
WIDTH (SIDE - SIDE)	WIDTH (SIDE - SIDE)47	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)47	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)52	WIDTH (SIDE - SIDE)52	WIDTH (SIDE - SIDE)47	WIDTH (SIDE - SIDE)42	WIDTH (SIDE - SIDE)37
Manufacturer	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton	ManufacturerConnerton
Control Type	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls	Control Typemanual controls
Heating Source	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourcelava rocks	Heating Sourceradiant	Heating Sourceradiant	Heating Sourcelava rocks
Installation Type	Installation Typecountertop	Installation Typecountertop	Installation Typefloor model	Installation Typefloor model	Installation Typecountertop	Installation Typefloor model	Installation Typecountertop	Installation Typecountertop	Installation Typecountertop
Power Type	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas	Power Typegas
Depth (front - back)	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"	Depth (front - back)23"
Number of Burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners5 burners	Number of Burners5 burners	Number of Burners4 burners	Number of Burners4 burners	Number of Burners3 burners
Exterior Finish	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior	Exterior Finishall stainless steel exterior
Heating Source Material	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialcast iron	Heating Source Materialstainless steel	Heating Source Materialstainless steel	Heating Source Materialcast iron
Base Type	Base Type-	Base Type-	Base Typeopen stand	Base Typeopen stand	Base Type-	Base Typeopen stand	Base Type-	Base Type-	Base Type-
Grid	Grid -	Grid -	Grid cast iron grid	Grid cast iron grid	Grid -	Grid cast iron grid	Grid -	Grid -	Grid -

Manufacturer	Connerton
Model Number	RLRB-23-47L
Weight	295 lbs
Width	47″
Depth	23″
Height	13″
Installation Type	countertop
Power Type	gas
Number of Burners	4 burners
Heating Source	lava rocks
Control Type	manual controls
Exterior Finish	all stainless steel exterior
Heating Source Material	cast iron
Certifications	NSF, CSA
Total BTU	112,000
Cooking Surface Depth	21"
