The Ikon Radiant Broilers adjustable manual gas controls provide easy and safe operations
Ikon IRB-48 Features
- The Ikon Radiant Broilers are available in 12”, 24”, 36”, & 48” widths
- The 3 height position cast iron grates allow cooking various products and temperatures
- Pilot light can be lit from the front for ease of use
- “U” shape burners provide even heat distribution every 12”
- Adjustable pilot light lit from front of unit 35,000 BTU / burner
- Available in Natural gas(NG) or Liquid Propane(LP)
- A conversion kit is supplied with each unit
- Flue located on back of unit for ample ventilation
- Adjustable stainless steel legs, non-skid feet
- Easy to remove full width crumb tray
- 10 Ga. Cast Iron Radiants
- Gas control knob every 12”
- All stainless steel cabinet
- Double wall insulated sides
- “Cool-to-the-touch” front s/s edge
- Back and side splash guards
Gas Requirements
- Natural Gas or Liquid Propane (LP) Gas main supply required
- A conversion kit is supplied with each unit.In order to avoid any waranty issues, conversion of your unit must be completed by an authorized Ikon service agent.
- 3/4” NPT gas connection
- 35,000 BTU’s per burner
- One pilot light per burner
- Natural gas 4” W.C., LP gas 10” W.C.
From The Manufacturer

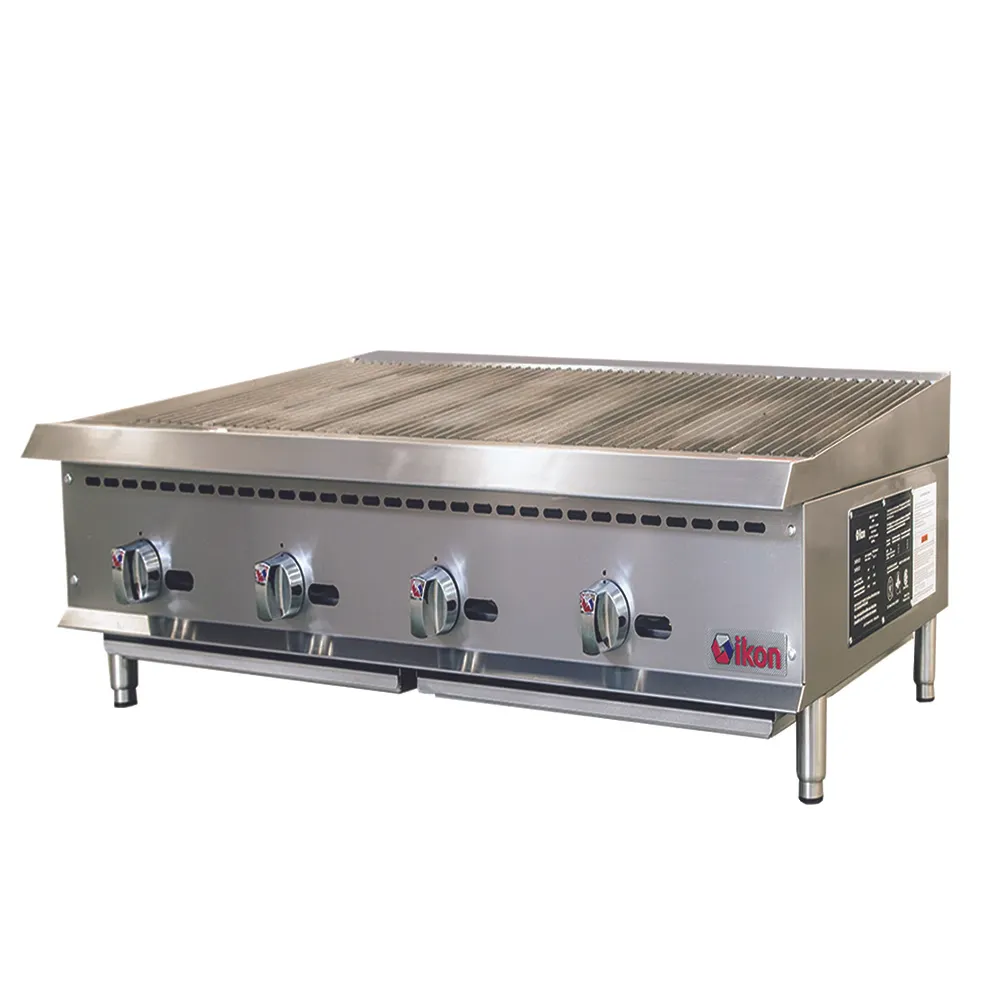

IKON Cooking Radiant Broiler, natural gas, 48" W x 34.4" D, (4) 35,000 BTU 'U' shape burners, 10 gauge cast iron radiants, rear flue, adjustable manual controls, 3-position cast iron grates, front lit pilot light, double wall insulated sides, back & side splash guards, removable full width crumb tray, rear gas regulator, stainless steel cabinet, adjustable stainless steel legs, non-skid feet, 140,000 BTU total, CSA-Sanitation, CSA Star, CSA Flame (ships with LP gas conversion kit)
Images are for reference. Color, configuration, dimensions and what's included vary by model. See the spec sheet to confirm the exact details.
